1590CFL

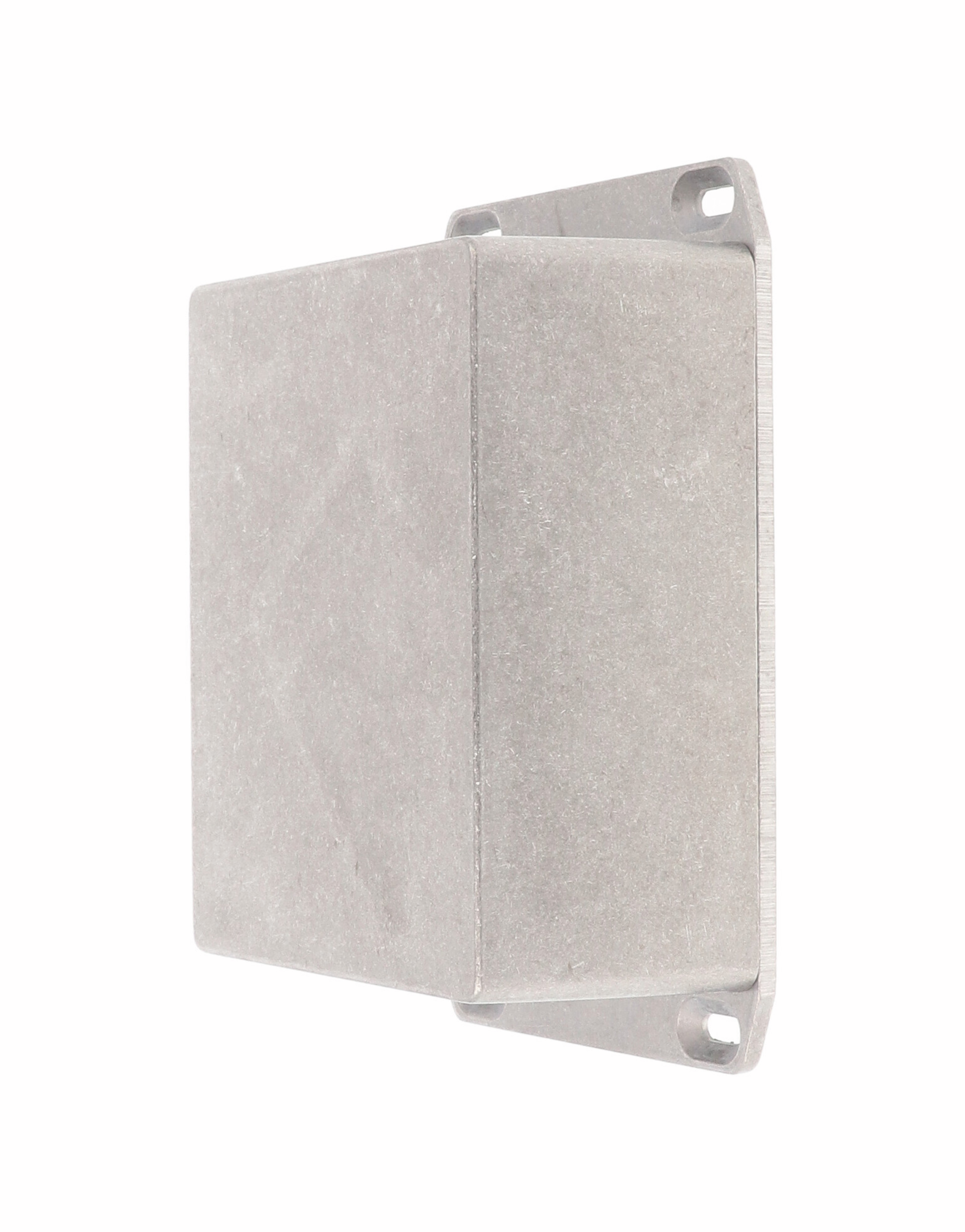

Hammond 1590 Small housing 120mm x 94mm x 56,5mm silver IP54
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
31 Pcs. in stock
Next Stock Receipt
Week 44/2024
20 Pcs.
20 Pcs.
Planned delivery time
Ø 4 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Small housing
- Assembly Type
- Screw mounting
- Dimension: Length
- 120 mm
- Dimension: Width
- 94 mm
- Dimension: Height
- 56.5 mm
- Type ( axial, radial )
- Flange
- Colour
- silver
- Material
- Aluminum
- Finished
- Protection Class IP
- IP54
- RoHS-Conform
Specifications
Open all
Dimensions and weights
- Dimension: Length
- 120 mm
- Dimension: Width
- 94 mm
- Dimension: Height
- 56.5 mm
Safety/Certifications
- Protection Class IP
- IP54
