V50101

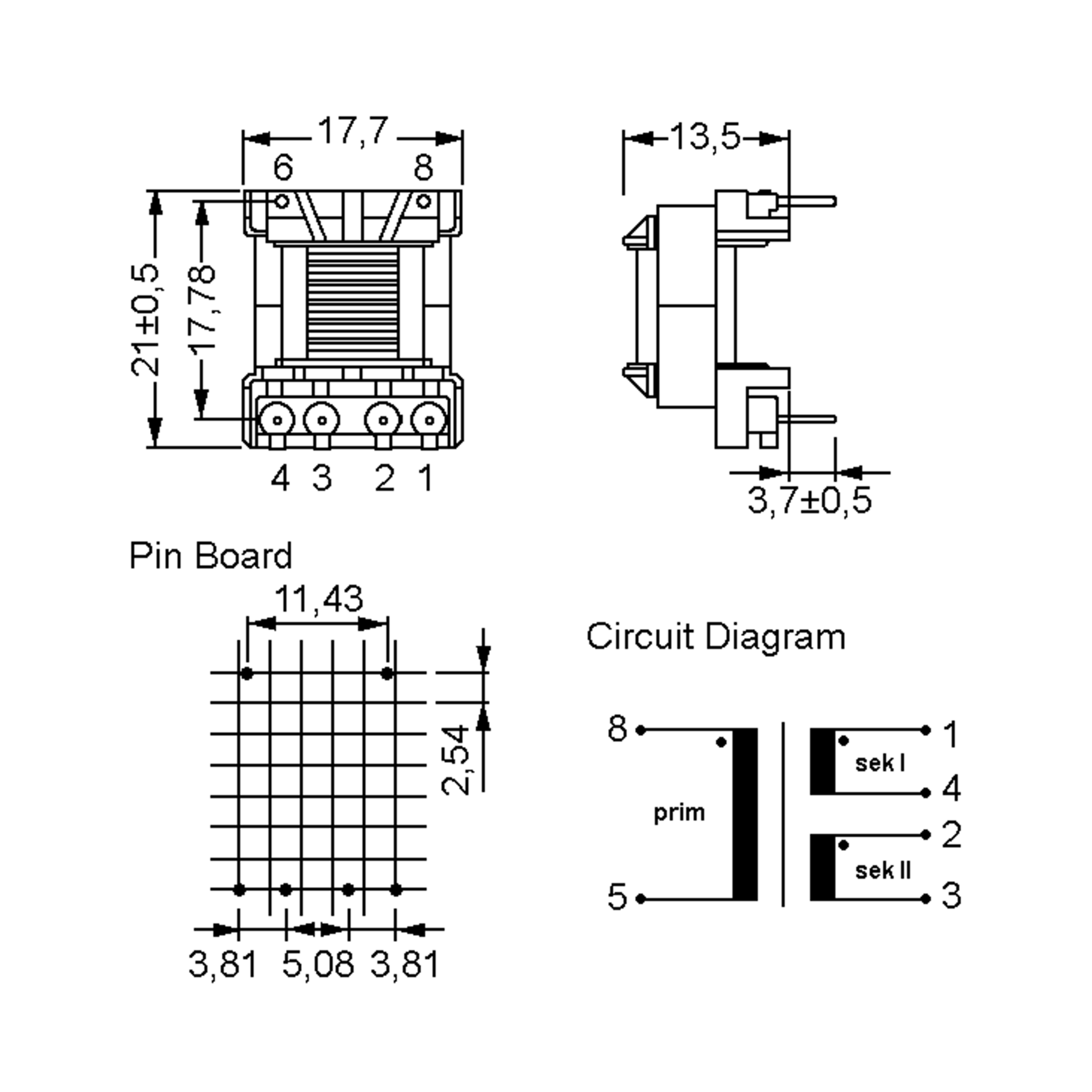

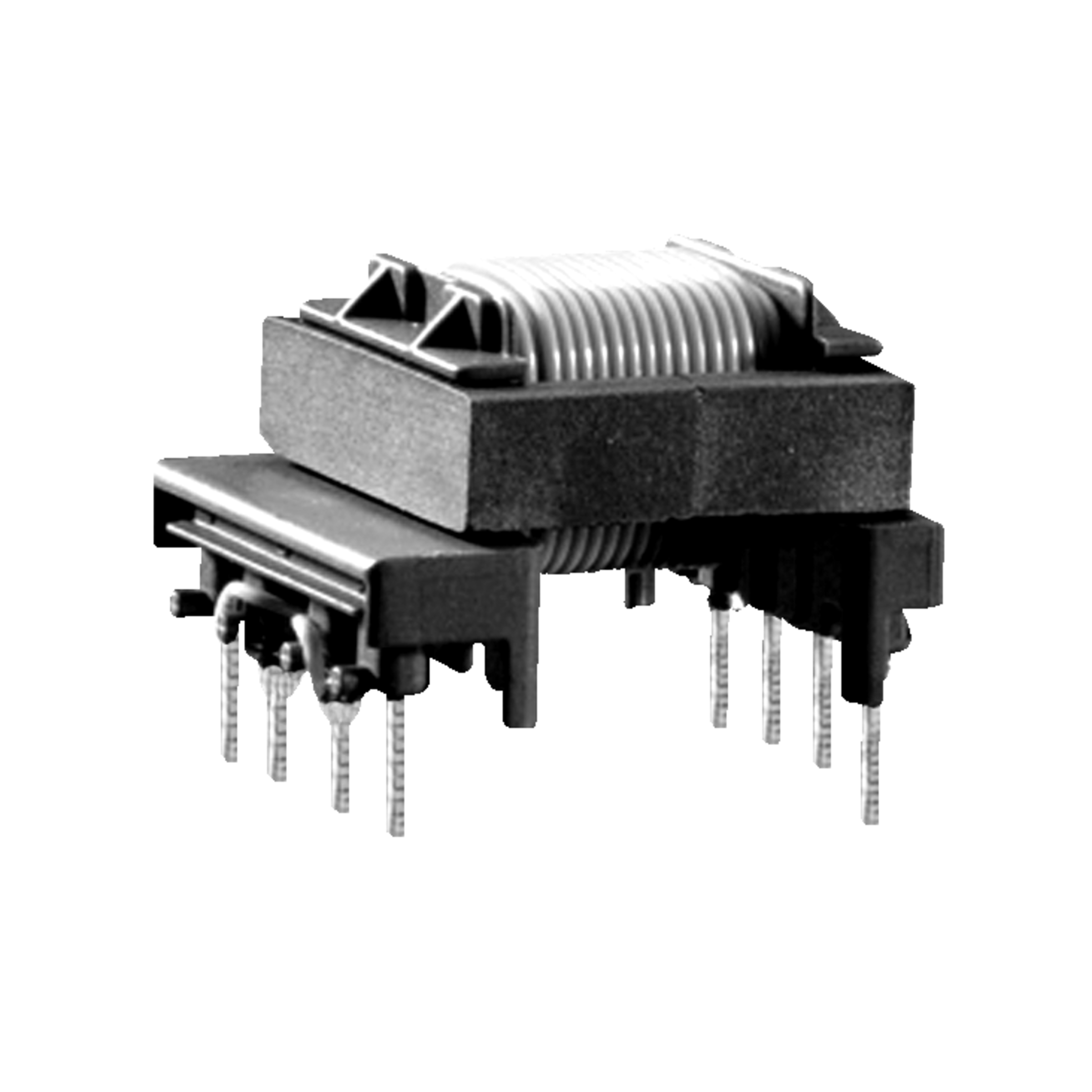

Hahn Flyback transformer EF 16/5 31:3:3 265V 2x9V 280mA
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
176 Pcs.
176 Pcs.
Planned delivery time
Ø 3 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 176 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 176 or multiple of 176)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Series
- EF 16/5
- Transmission ratio
- 31:3:3
- Input voltage range, min.
- 85 V
- Input voltage range, max.
- 265 V
- Secondary voltage
- 2 x 9 V
- RoHS-Conform
Specifications
Open all
Electrical features
- Performance
- 5 W
Technical features
- Input voltage range, min.
- 85 V
- Input voltage range, max.
- 265 V
- Secondary voltage
- 2 x 9 V
- Secondary current
- 280 mA
- Open circuit inductance
- 2.4 mH
