BVEI6624039

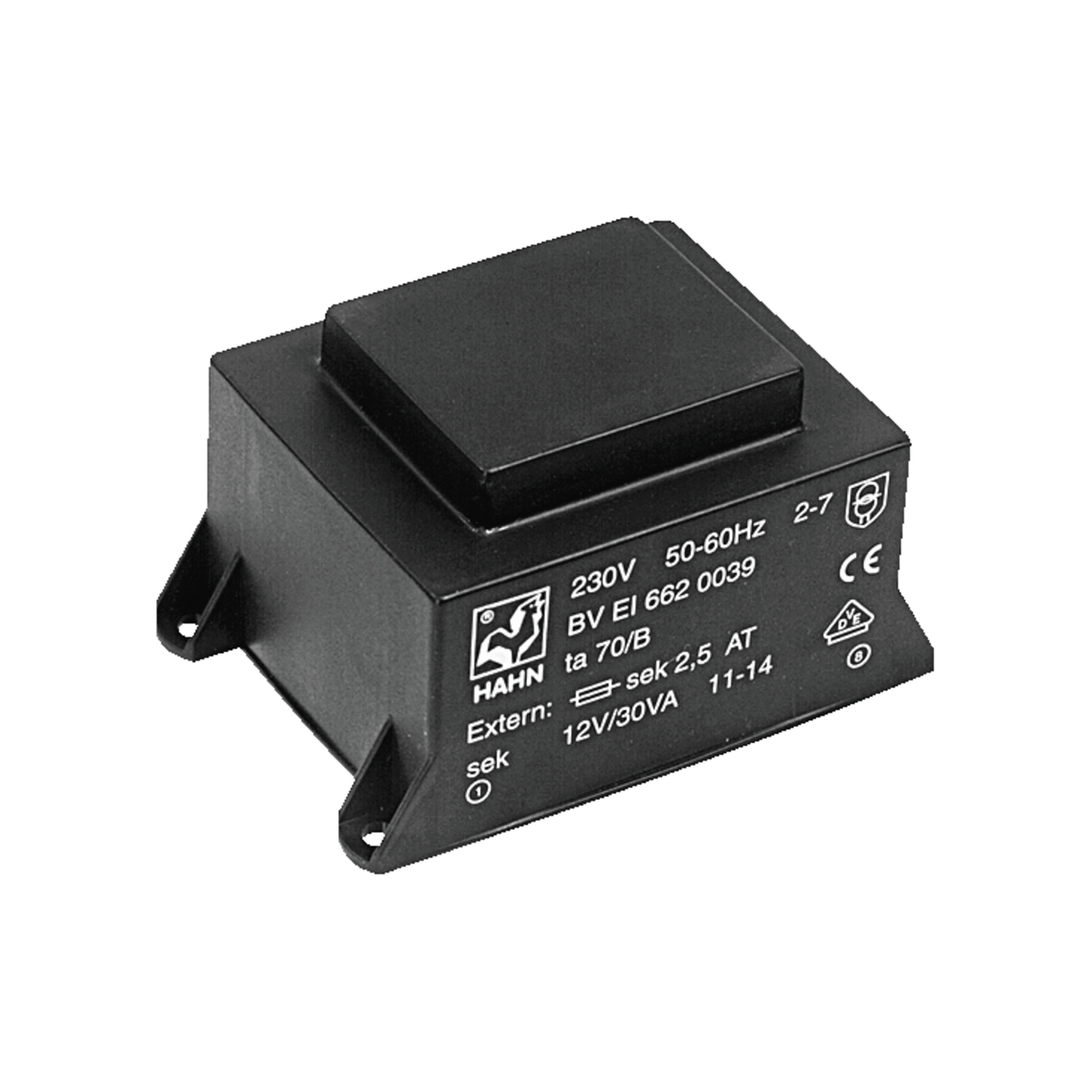

Hahn Print transformer BVEI662 EI66 30VA 230V 12V 2.500mA not short circuit proof
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
9 Pcs.
9 Pcs.
Planned delivery time
Ø 3 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 9 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 9 or multiple of 9)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Print transformer
- Series
- BVEI662
- Core
- EI66
- Performance
- 30 VA
- Primary voltage
- 230 V
- Secondary voltage
- 12 V
- RoHS-Conform
Specifications
Open all
Dimensions and weights
- Dimension: Length
- 87.2 mm
- Dimension: Width
- 58.6 mm
- Dimension: Height
- 48.5 mm
Operating conditions
- Permissible excess temperature
- 50 K K
Technical features
- Number of inputs
- 1
- Primary voltage
- 230 V
- Number of outputs
- 1
- Secondary voltage
- 12 V
- Secondary current
- 2.500 mA
- Open circuit voltage
- 1,2 x UN sek
- Test voltage
- 4 kV
- Performance
- 30 VA
- Temperature resistance class
- T 70/B
- Final temperature in intended use
- 120 °C
Safety/Certifications
- Approvals
- ENEC10
- VDE 0570
