BVEI4811184

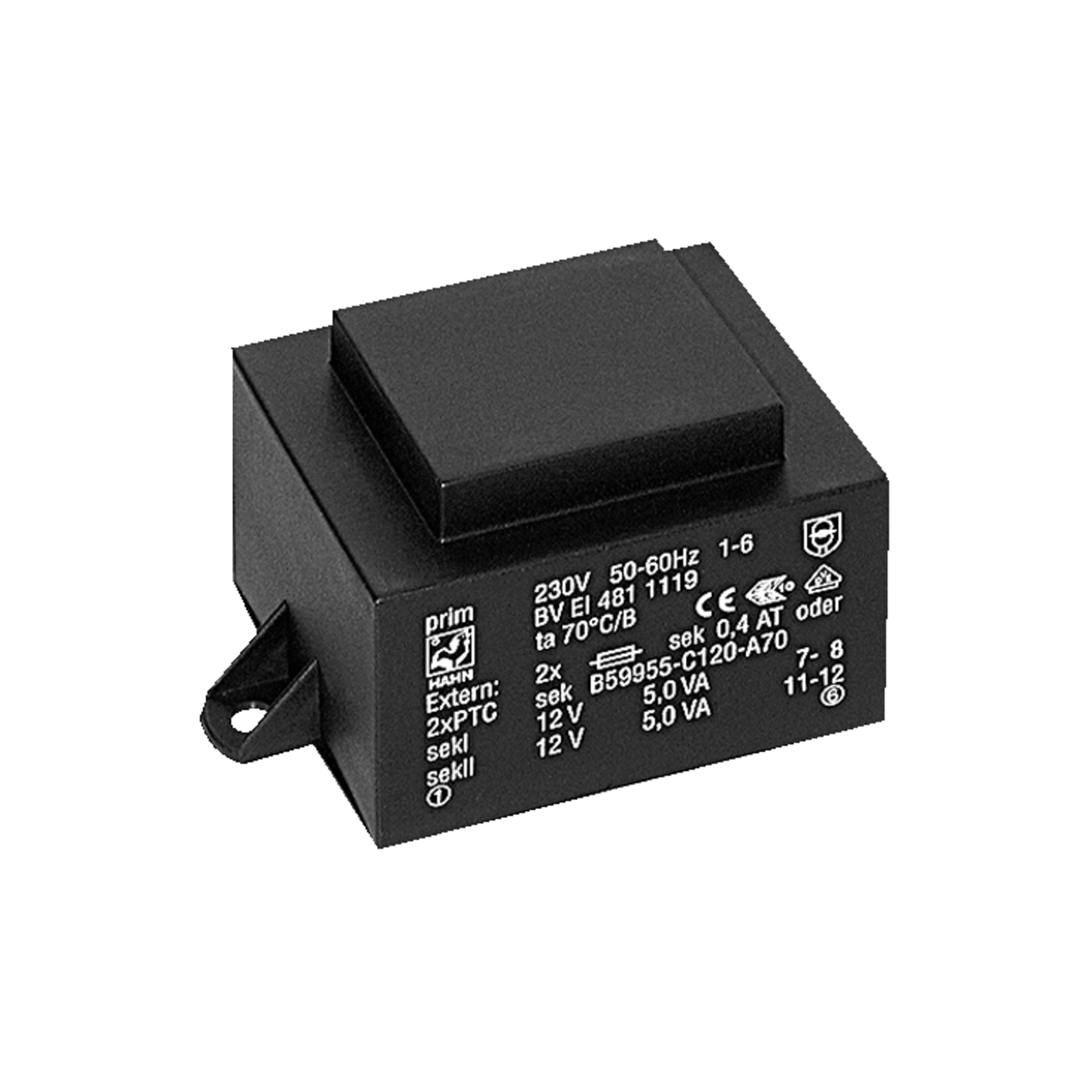

Hahn BVEI481 Print transformer EI48 10VA 230V 15V
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
106 Pcs. in stock
Next Stock Receipt
Week 44/2024
48 Pcs.
48 Pcs.
Planned delivery time
Ø 3 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 16 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Print transformer
- Series
- BVEI481
- Core
- EI48
- Performance
- 10 VA
- Primary voltage
- 230 V
- Secondary voltage
- 15 V
- RoHS-Conform
Specifications
Open all
Dimensions and weights
- Dimension: Length
- 69 mm
- Dimension: Width
- 42.1 mm
- Dimension: Height
- 34.6 mm
Operating conditions
- Permissible excess temperature
- 50 K K
Technical features
- Number of inputs
- 1
- Primary voltage
- 230 V
- Number of outputs
- 1
- Secondary voltage
- 15 V
- Secondary current
- 667 mA
- Open circuit voltage
- < 2 x UN sek
- Test voltage
- 4 kV
- Performance
- 10 VA
- Temperature resistance class
- T 70/B
- Final temperature in intended use
- 120 °C
Safety/Certifications
- Approvals
- ENEC10
- UL
- VDE 0570
