BVEI3068003

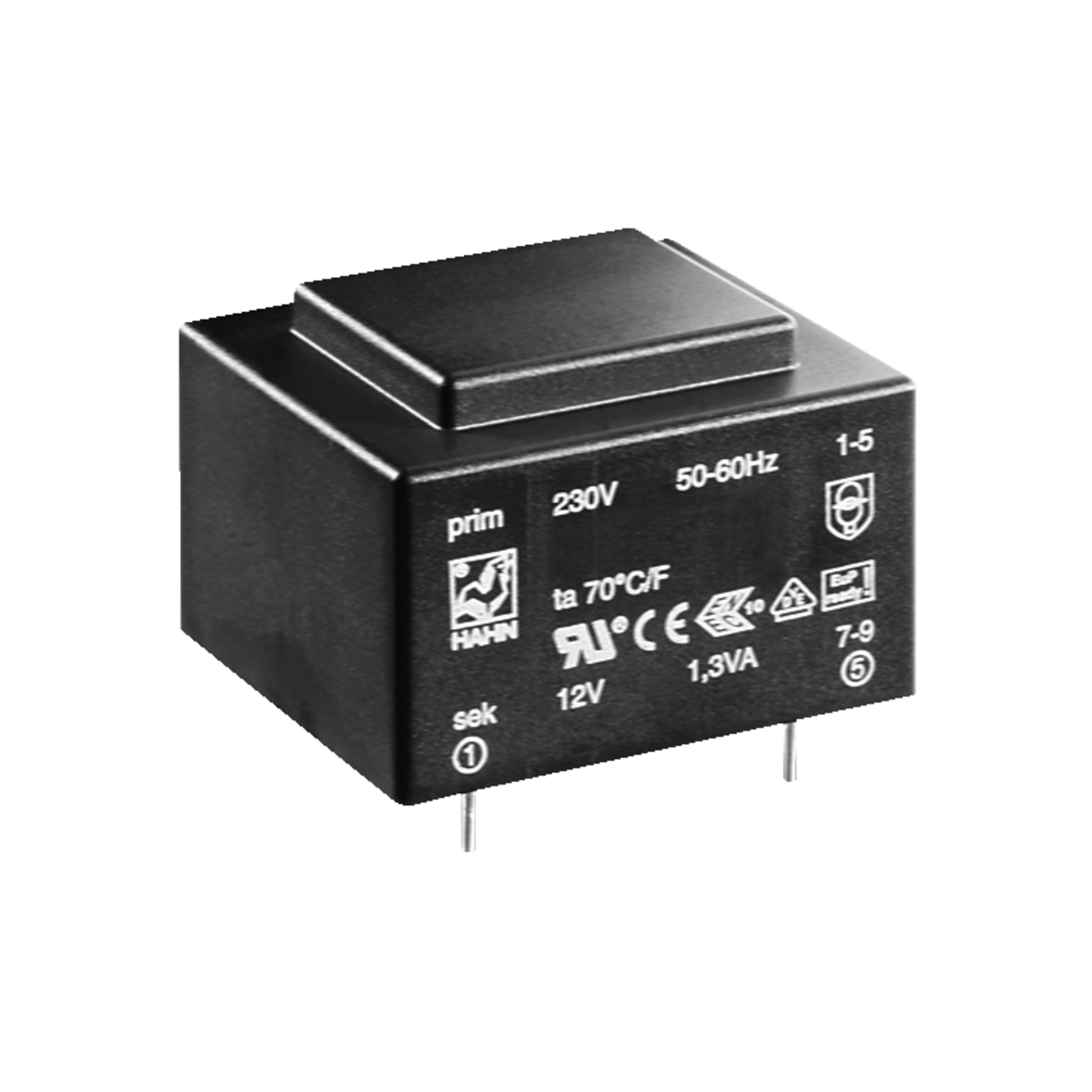

Hahn Print transformer BVEI306 EI30 2,8VA 230V 12V 233mA absolutely short circuit proof
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Item no longer available!
Back Order
0 Pcs.
0 Pcs.
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 18.02.2020
Article discontinued
Data Sheet
ECAD Model
Prices
Manufacturer bundle 50 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 50 or multiple of 50)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Print transformer
- Series
- BVEI306
- Core
- EI30
- Performance
- 2.8 VA
- Primary voltage
- 230 V
- Secondary voltage
- 12 V
- RoHS-Conform
Specifications
Open all
Dimensions and weights
- Dimension: Length
- 32.8 mm
- Dimension: Width
- 27.8 mm
- Dimension: Height
- 22.1 mm
Technical features
- Number of inputs
- 1
- Primary voltage
- 230 V
- Number of outputs
- 1
- Secondary voltage
- 12 V
- Secondary current
- 233 mA
- Open circuit voltage
- 21,4 V
- Performance
- 2.8 VA
- Temperature resistance class
- Ta 70/F
- End temperature in the event of a short circuit, max.
- 210 °C
Safety/Certifications
- Approvals
- ENEC10
- UL
- VDE
- cCSA
