BVEI3062079

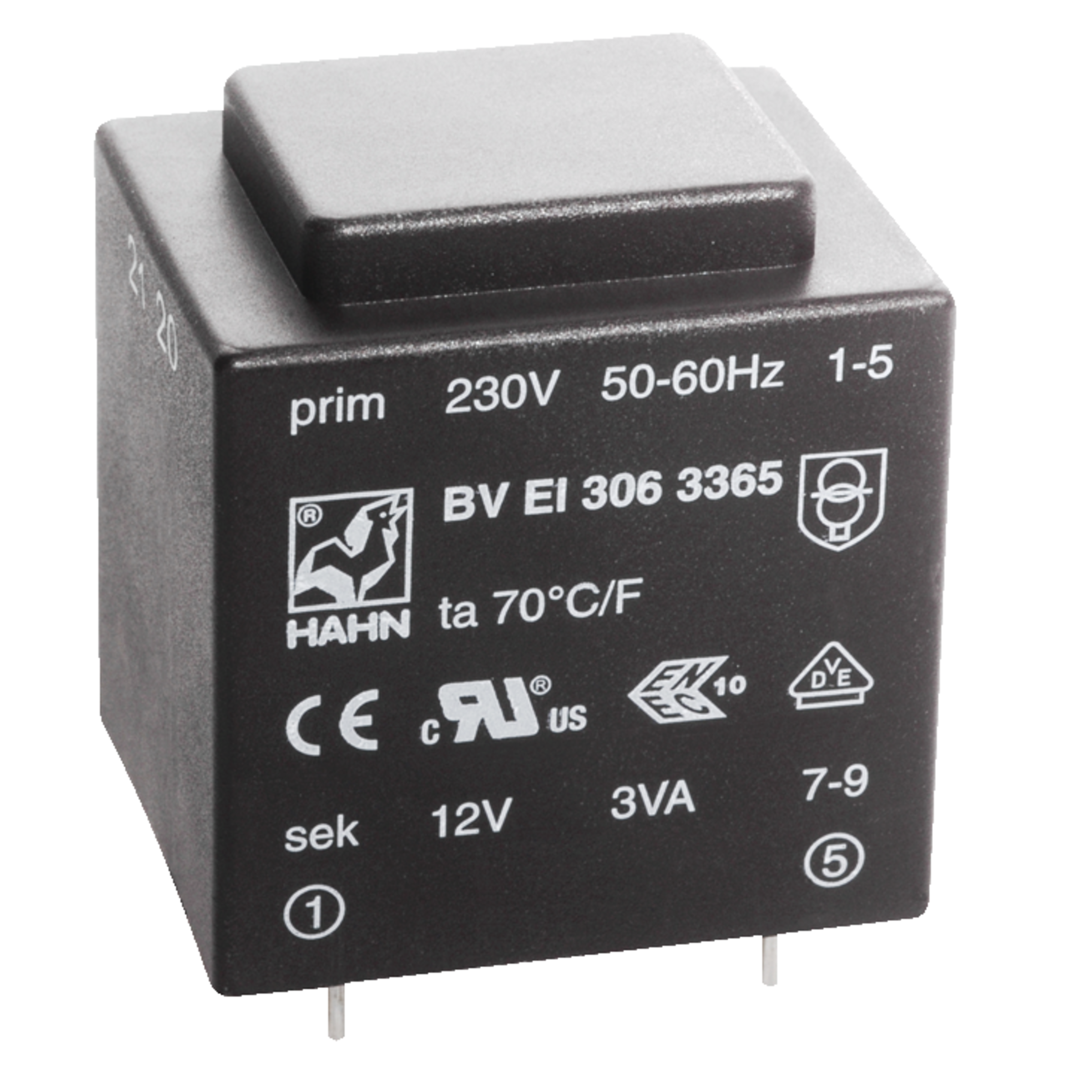

Hahn Print transformer BVEI306 EI30 3,2VA 230V 2x18V 2x89mA absolutely short circuit proof
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
50 Pcs.
50 Pcs.
Planned delivery time
Ø 3 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 50 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 50 or multiple of 50)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Print transformer
- Series
- BVEI306
- Core
- EI30
- Performance
- 3.2 VA
- Primary voltage
- 230 V
- Secondary voltage
- 2 x 18 V
- RoHS-Conform
Specifications
Open all
Operating conditions
- Permissible excess temperature
- 100 K K
Technical features
- Number of inputs
- 1
- Primary voltage
- 230 V
- Number of outputs
- 2
- Secondary voltage
- 2 x 18 V
- Secondary current
- 2 x 89 mA
- Open circuit voltage
- < 2 x UN sek
- Test voltage
- 4 kV
- Performance
- 3.2 VA
- Temperature resistance class
- Ta 40/F
- Final temperature in intended use
- 190 °C
- End temperature in the event of a short circuit, max.
- 140 °C
Safety/Certifications
- Approvals
- ENEC10
- UL
- VDE
