HNP67EU-2C1A

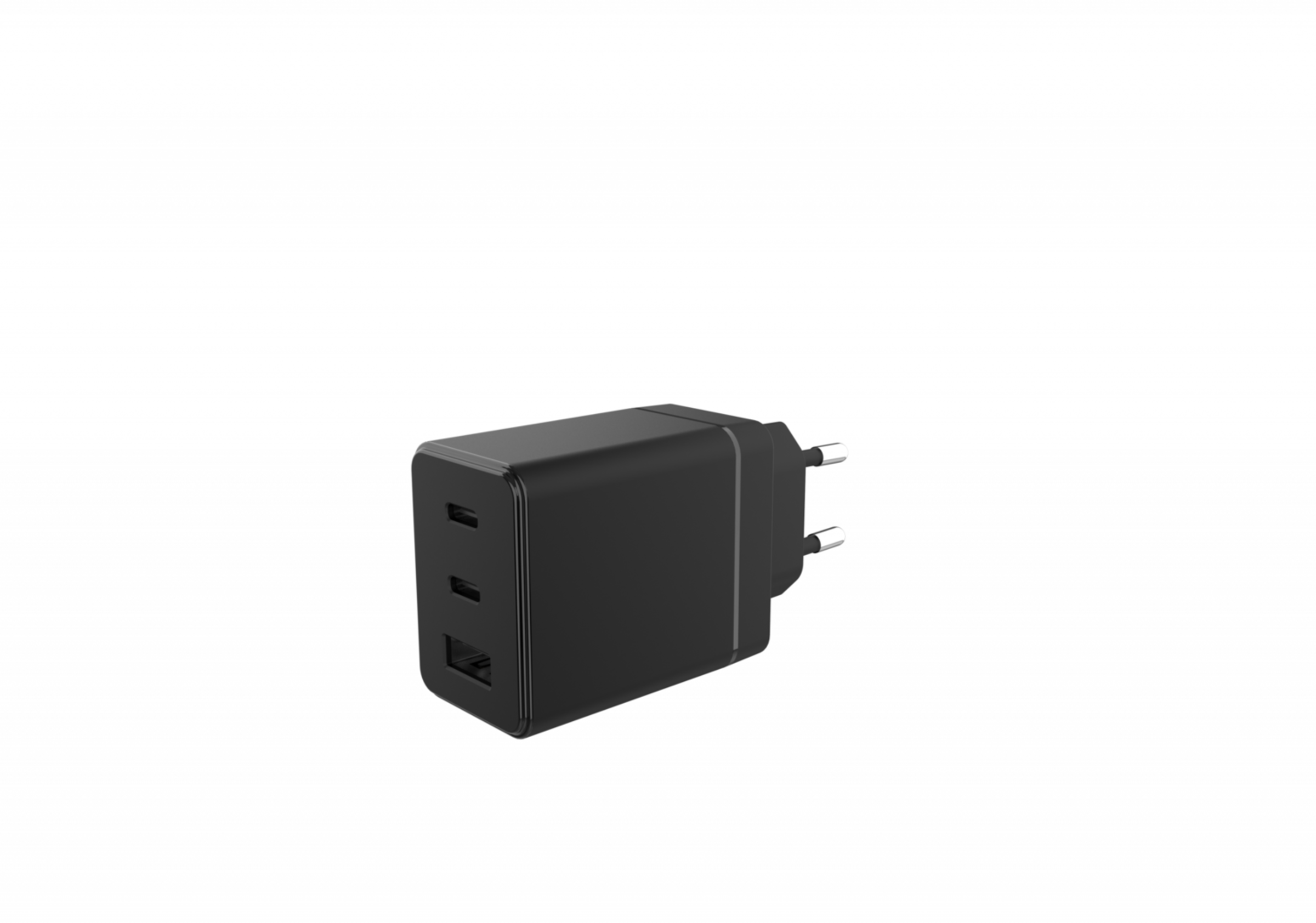

HN-Power Wall Mount Power Supply 67W 5V 3,5A 2xUSB-C USB-A

HNP67EU-2C1A
NEW
Manufacturer Part No.
HNP67EU-2C1A
Schukat Part No.
HNP67EU-2C1A
Manufacturer
HN-Power
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

7 Pcs. in stock

Planned delivery time
Ø 11 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Package/Case
Wall Mount Power Supply
Output Power
67 W
Output voltage
5 V
Output current
3.500 A
Efficiency
91.15 %
Connection type, output
2xUSB-C
USB-A
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • HN-Power
Series
  • HNP67EU
Product group
  • M5284
Application
  • ITE
  • Industry
Package/Case
  • Wall Mount Power Supply
Dimension: Length
  • 44 mm
Dimension: Width
  • 31.2 mm
Dimension: Height
  • 92.2 mm
Weight
  • 129 g
Manufacturer's warranty (years)
  • 1
Product description
  • The HNP67EU-2C+1A combines advanced fast-charging technology, excellent energy efficiency and an extremely compact form factor. With two USB-C ports and one USB-A port, it provides versatile charging options for a wide range of modern devices – from smartphones and tablets to networking equipment and industrial controllers.Supporting USB Power Delivery 3.0 and Quick Charge 3.0, the adaptor ensures fast yet safe charging. Its intelligent power distribution allows a flexible range of output combinations with up to 67 watts total output, making it ideal for portable equipment and professional systems.Built according to modern safety standards such as CE LVD EN62368-1 and EMC EN55032/EN55035, and equipped with overcurrent, overvoltage and short-circuit protection, the HNP67EU-2C+1A is ready for demanding environments. Its extremely low standby consumption and double insulation make it a durable and energy-efficient solution.
Features
  • USB-C PD
Application note
  • USB-C Power Delivery feature with output voltages of 5V, 9V, 12V, 15V, or 20V.

Operating conditions

Operating Temperature Min.
  • -10 °C
Operating Temperature Max.
  • 25 °C
Storage Temperature Min.
  • -20 °C
Storage Temperature Max.
  • 70 °C

Input

Mains frequency min.
  • 50 Hz
Mains frequency max.
  • 60 Hz
Input voltage min. AC
  • 100 V
Input voltage max. AC
  • 240 V
Input current
  • 1.5 A
Efficiency
  • 91.15 %
Efficiency (at 10% load)
  • 82.43 %
Average efficiency
  • 91.15 %
No load power, less than
  • 0.3 W
Leakage current, max.
  • 0.25 mA
Power factor correction (PFC)
Connection type, input
  • Euro Plug

Output

Number of outputs
  • 1
Output Power
  • 67 W
Output voltage
  • 5 V
Selectable output voltage
Ripple & Noise
  • 200 mVp-p
Output current
  • 3.500 A
Overload protection
Type of overload protection
  • Hiccup
Short-circuit protection
Overvoltage protection
Overtemperature protection
Connection type, output
  • 2xUSB-C
  • USB-A

Safety/Certifications

Protection class
  • II
Isolation voltage I/P-O/P
  • 3,000 V
Energy level
  • (EU) 2019/1782 + Level VI
Approvals
  • CE
  • EN
Standards (EMC)
  • EN 55032
Standards (safety)
  • EN 62368-1
