HNP65EU-CPDGAN

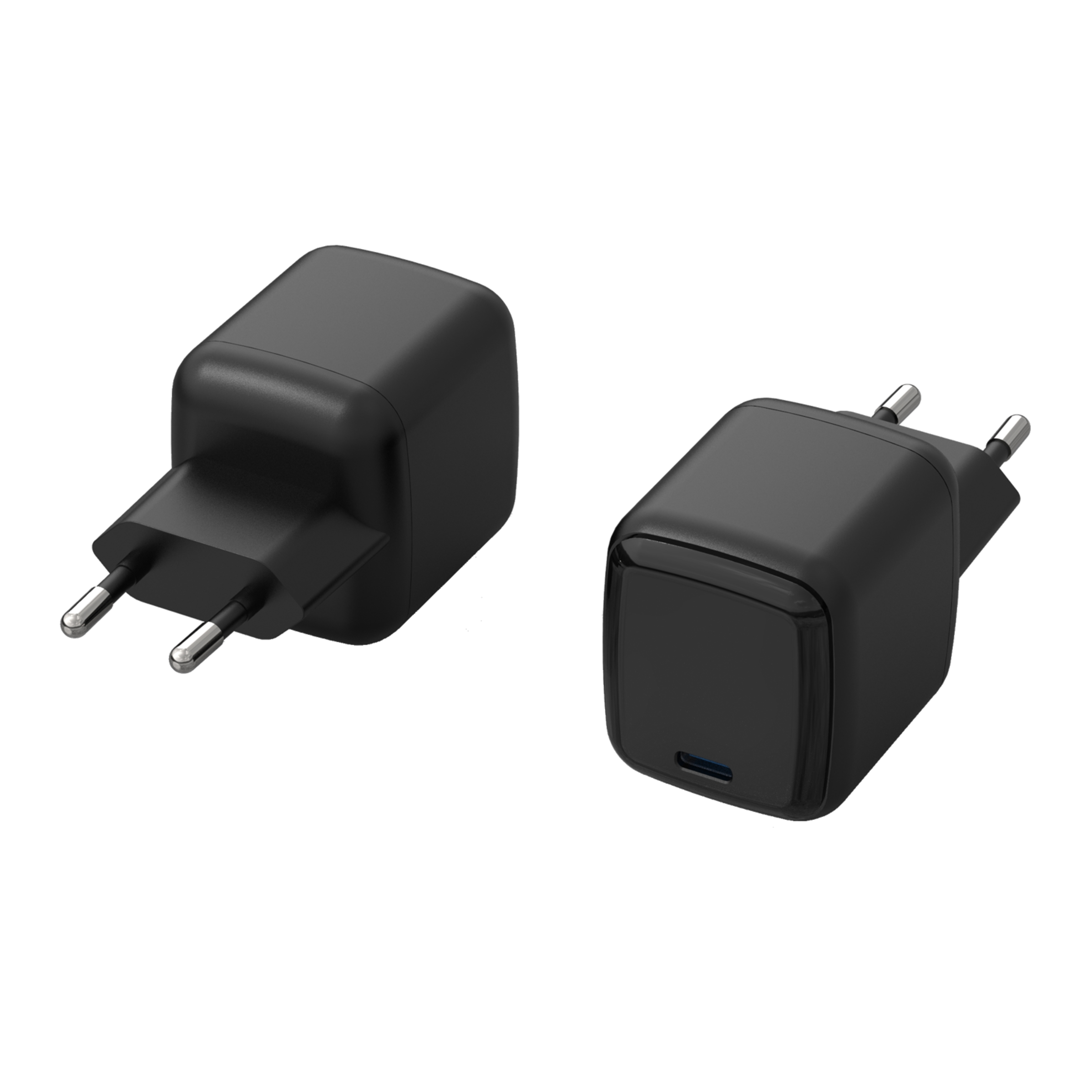

HN-Power Wall Mount Power Supply 65W 20V 3,25A USB-C

HNP65EU-CPDGANHNP65EU-CPDGAN
Manufacturer Part No.
HNP65EU-CPDGAN
Schukat Part No.
HNP65EU-CPDGAN
Manufacturer
HN-Power
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

3 Pcs. in stock

Planned delivery time
Ø 19 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Notice
Cross-references:
Here you will find suitable USB-C cables.
Here you will find suitable USB connectors.
Package/Case
Wall Mount Power Supply
Output Power
65 W
Output voltage
20 V
Output current
3.250 A
Connection type, output
USB-C
RoHS-Conform

Specifications

Close all

General

Manufacturer
  • HN-Power
Series
  • HNP65EU
Product group
  • M5284
Application
  • ITE
  • Industry
Package/Case
  • Wall Mount Power Supply
Dimension: Length
  • 43.8 mm
Dimension: Width
  • 38.1 mm
Dimension: Height
  • 84.4 mm
Weight
  • 105 g
Manufacturer's warranty (years)
  • 1
Product description
  • The 65W GaN USB-C power supply HNP65EU-CPDGaN from HN Electronic impresses with state-of-the-art gallium nitride (GaN) technology, maximum energy efficiency and an ultra-compact design. Thanks to USB Type-C™ Power Delivery 3.0 and Quick Charge 3.0, this USB-C fast charger is ideal for the latest smartphones, tablets, laptops, single-board computers, as well as professional industrial and network devices. With a maximum power output of 65 watts and automatic voltage adjustment (5V / 9V / 12V / 15V / 20V), the USB-C PD adapter delivers the optimum charging power at all times – safely, reliably and efficiently. The GaN power supply achieves an efficiency of up to 90.46% and extremely low idle power consumption of less than 0.21 W, in compliance with DOE VI and EU CoC V5 Tier 2.
Notice

Operating conditions

Operating Temperature Min.
  • -10 °C
Operating Temperature Max.
  • 25 °C
Storage Temperature Min.
  • -20 °C
Storage Temperature Max.
  • 70 °C

Input

Mains frequency min.
  • 47 Hz
Mains frequency max.
  • 63 Hz
Input voltage min. AC
  • 90 V
Input voltage max. AC
  • 264 V
Input current
  • 1.8 A
Efficiency (at 10% load)
  • 83.75 %
Average efficiency
  • 90.46 %
No load power, less than
  • 0.07 W
Leakage current, max.
  • 0.25 mA
Inrush current, max.
  • 100 A
Power factor correction (PFC)
Connection type, input
  • Euro Plug

Output

Number of outputs
  • 1
Output Power
  • 65 W
Output voltage
  • 20 V
Selectable output voltage
Selectable DC output voltages (V)
  • 5; 9; 12; 20
Ripple & Noise
  • 200 mVp-p
Output current
  • 3.250 A
Overload protection
Type of overload protection
  • Hiccup
Short-circuit protection
Overvoltage protection
Overtemperature protection
Connection type, output
  • USB-C

Safety/Certifications

Protection class
  • II
Isolation voltage I/P-O/P
  • 4,000 V
Energy level
  • (EU) 2019/1782 + Level VI
Approvals
  • CE
  • EN
Standards (EMC)
  • EN 55032
Standards (safety)
  • EN 62368-1

Other Products

All Products of the Series
NEW
Loading...

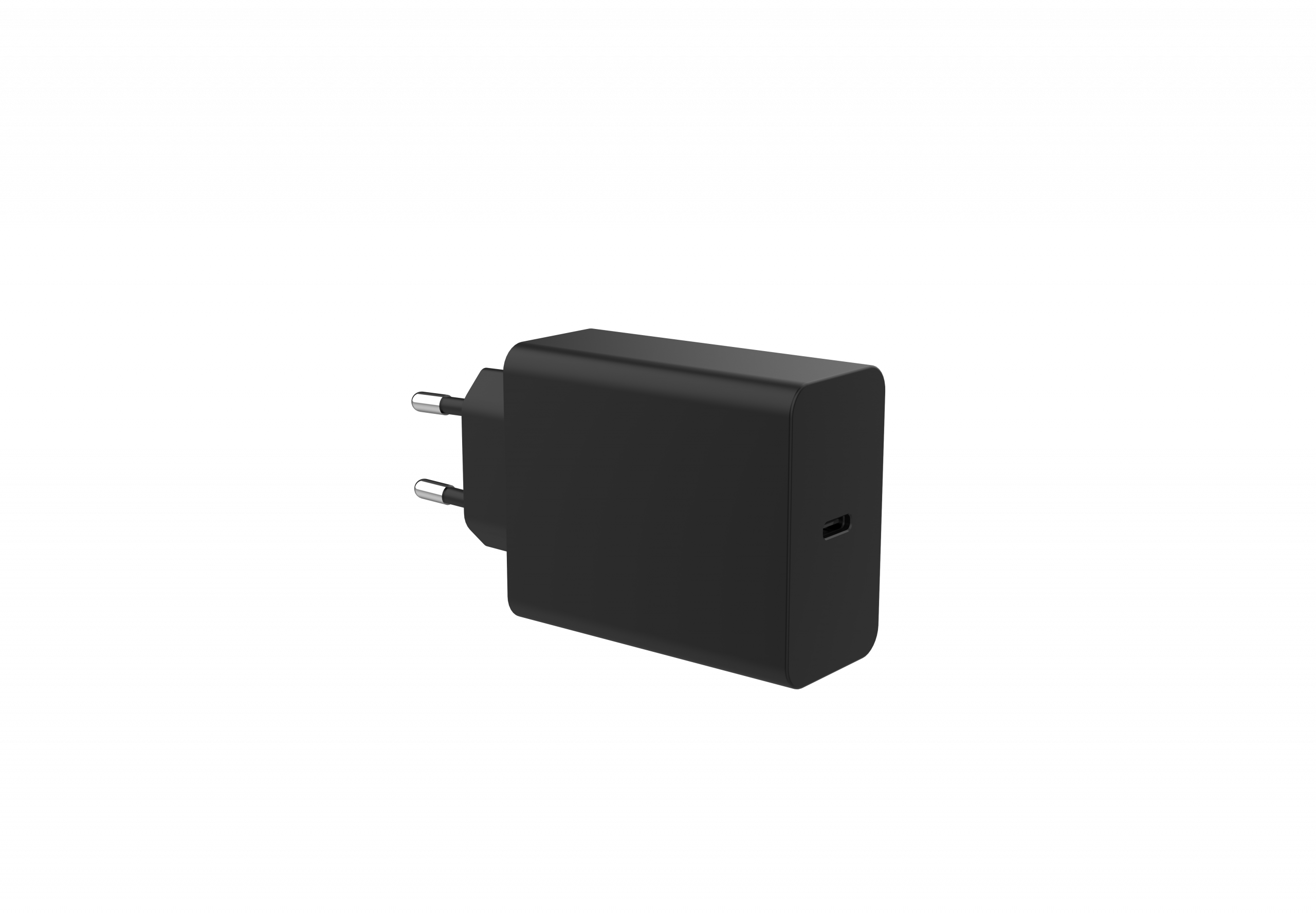

HNP65EU-1C
HN-Power
Wall Mount Power Supply 65W 5V 3A USB-C
from 12,28 €
NEW
Loading...

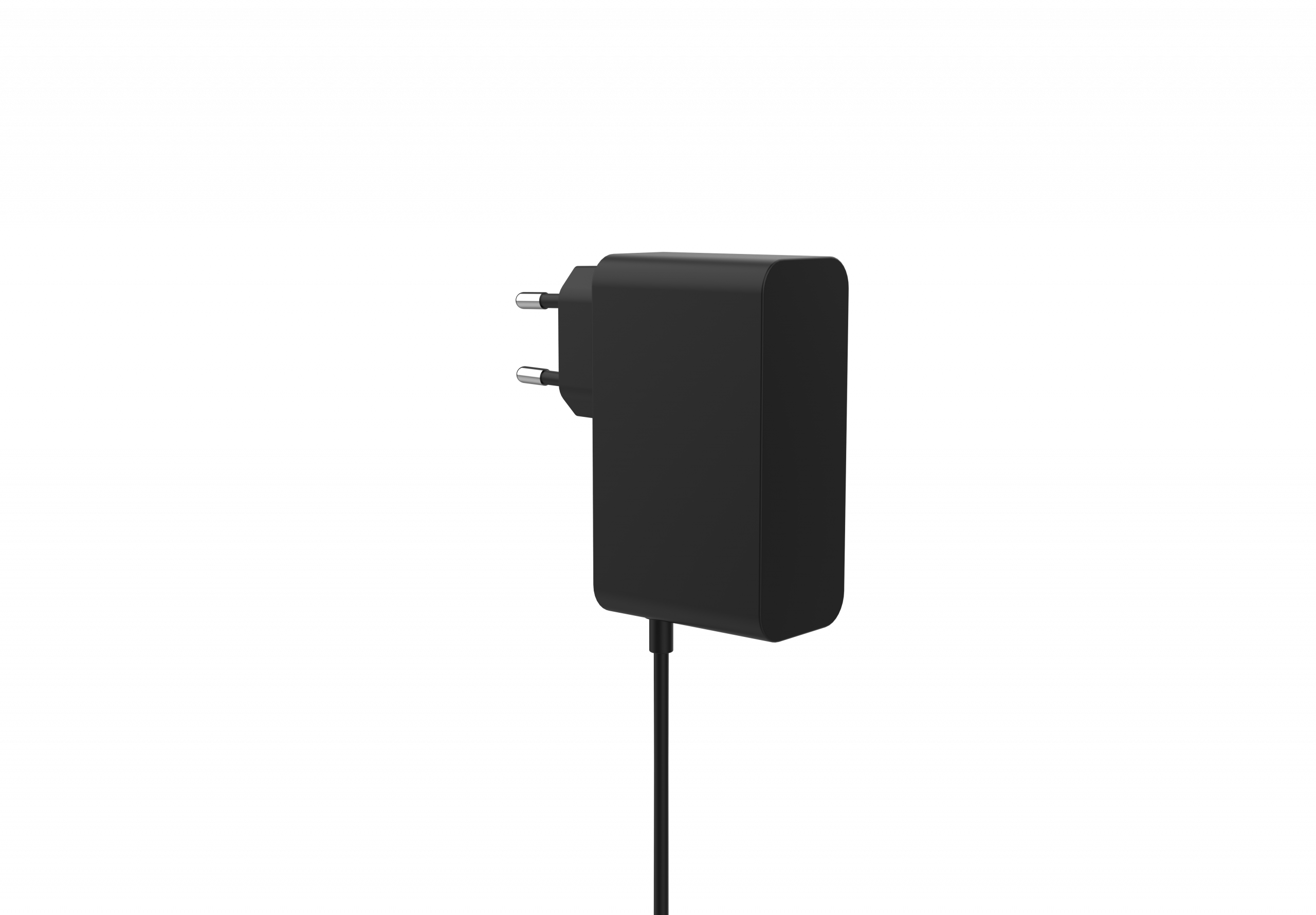

HNP65EU-C
