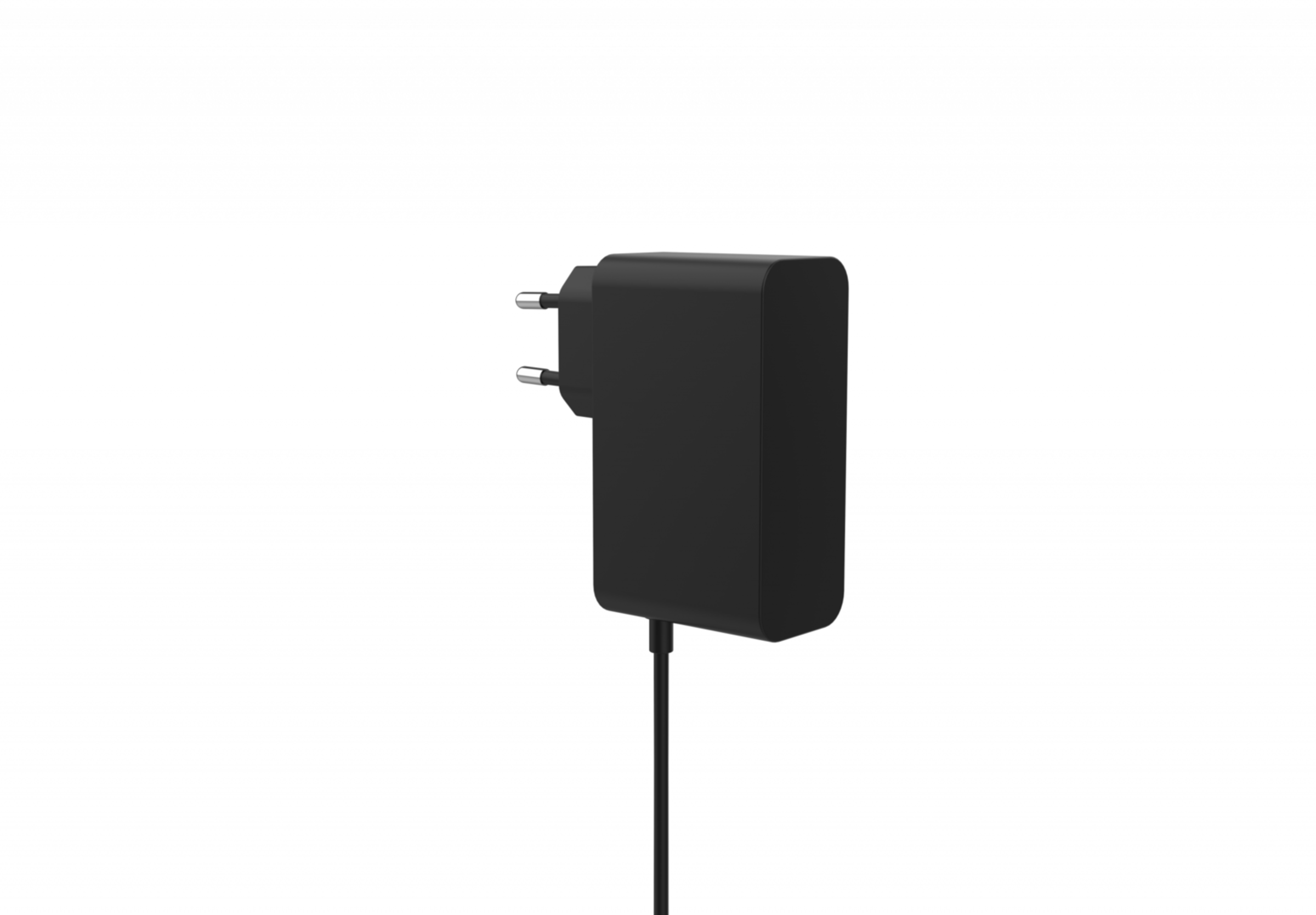

HNP65EU-C

HN-Power Wall Mount Power Supply 65W 5V 3,25A USB-C

HNP65EU-CHNP65EU-C
NEW
Manufacturer Part No.
HNP65EU-C
Schukat Part No.
HNP65EU-C
Manufacturer
HN-Power
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

10 Pcs. in stock

Planned delivery time
Ø 11 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 54 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Package/Case
Wall Mount Power Supply
Output Power
65 W
Output voltage
5 V
Output current
3.250 A
Efficiency
91.29 %
Connection type, output
USB-C
RoHS-Conform

Specifications

Close all

General

Manufacturer
  • HN-Power
Series
  • HNP65EU
Product group
  • M5284
Application
  • ITE
  • Industry
Package/Case
  • Wall Mount Power Supply
Dimension: Length
  • 38.85 mm
Dimension: Width
  • 34.55 mm
Dimension: Height
  • 42.3 mm
Weight
  • 160 g
Manufacturer's warranty (years)
  • 1
Product description
  • The compact 65W AC/DC USB-C™ adapter is the perfect power solution for modern mobile devices, industrial electronics, and high-performance single-board computers. With USB Power Delivery 3.0, Quick Charge 3.0, and up to 65 watts of output power, it provides fast, efficient and reliable charging for smartphones, tablets, laptops, and other USB-C devices.The ultra-small, double-insulated plug-in adaptor meets the highest efficiency standards (EU CoC V5 Tier 2 / DOE VI) and offers an extremely low standby power consumption of <0.3 W. Comprehensive protection features such as overload, overcurrent, overvoltage and short-circuit protection ensure maximum safety during operation.This makes the HNP65EU-C ideal for telecommunication systems, networking equipment, embedded platforms, mobile working environments, and the latest generation of smartphones. - Single-board computers (e.g. Raspberry Pi™, Jetson™, industrial SBCs) - Tablets, portable equipment and modern smartphones - Networking & telecommunication devices - Peripherals and embedded systems - Professional and industrial mobile computing environments
Features
  • USB-C PD
Application note
  • USB-C Power Delivery feature with output voltages of 5V, 9V, 12V, 15V, or 20V.

Operating conditions

Operating Temperature Min.
  • -10 °C
Operating Temperature Max.
  • 25 °C
Storage Temperature Min.
  • -20 °C
Storage Temperature Max.
  • 70 °C

Input

Mains frequency min.
  • 50 Hz
Mains frequency max.
  • 60 Hz
Input voltage min. AC
  • 100 V
Input voltage max. AC
  • 240 V
Input current
  • 0.7 A
Efficiency
  • 91.29 %
Efficiency (at 10% load)
  • 86.56 %
Average efficiency
  • 91.29 %
No load power, less than
  • 0.3 W
Leakage current, max.
  • 0.25 mA
Power factor correction (PFC)
Connection type, input
  • Euro Plug

Output

Number of outputs
  • 1
Output Power
  • 65 W
Output voltage
  • 5 V
Selectable output voltage
Ripple & Noise
  • 200 mVp-p
Output current
  • 3.250 A
Overload protection
Type of overload protection
  • Hiccup
Short-circuit protection
Overvoltage protection
Overtemperature protection
Connection type, output
  • USB-C
Cable length, output
  • 150 cm

Safety/Certifications

Protection class
  • II
Isolation voltage I/P-O/P
  • 3,000 V
Energy level
  • (EU) 2019/1782 + Level VI
Approvals
  • CE
  • EN
Standards (EMC)
  • EN 55032
Standards (safety)
  • EN 62368-1

Other Products

All Products of the Series
NEW
Loading...

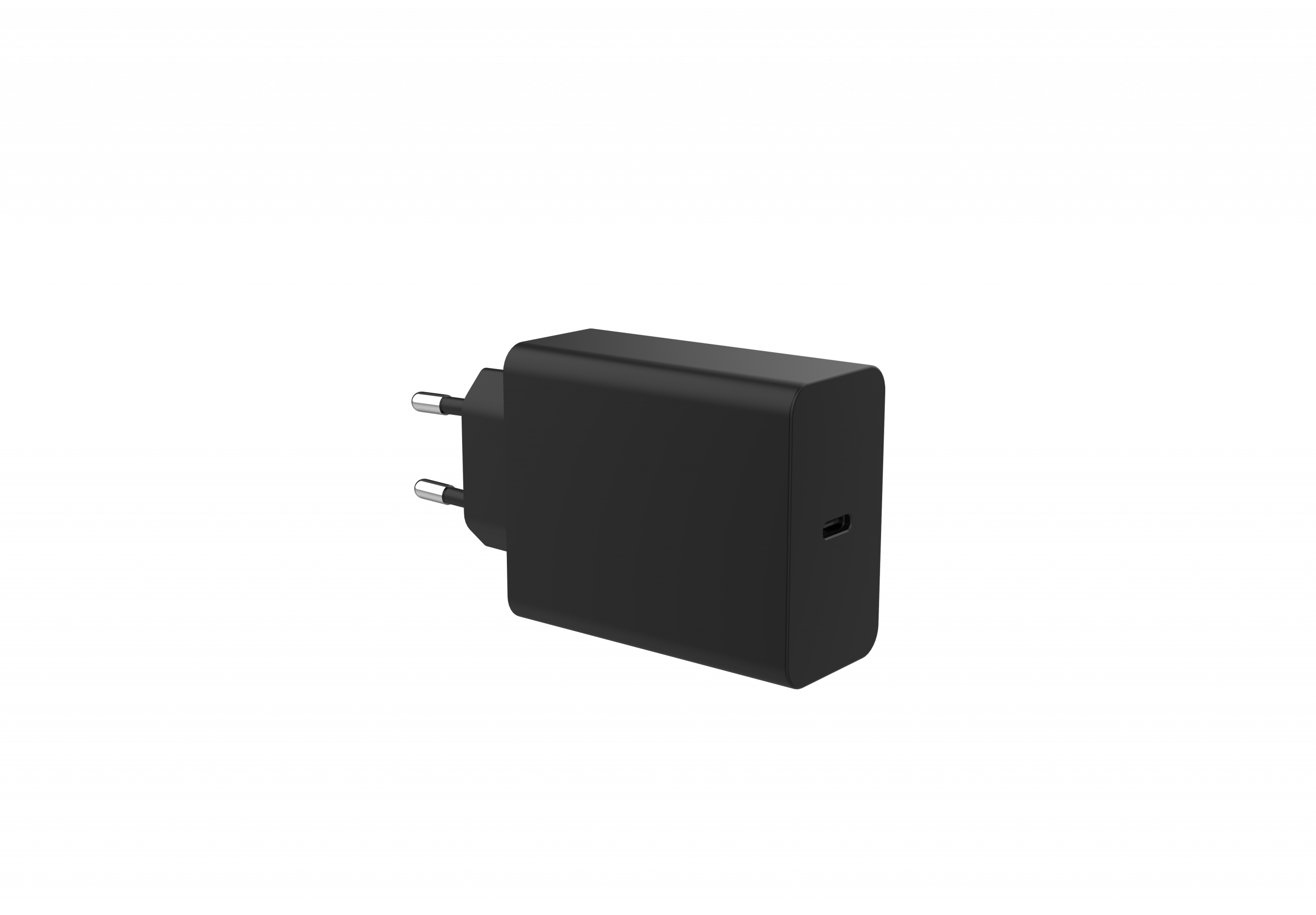

HNP65EU-1C
HN-Power
Wall Mount Power Supply 65W 5V 3A USB-C
from €12.28
Loading...

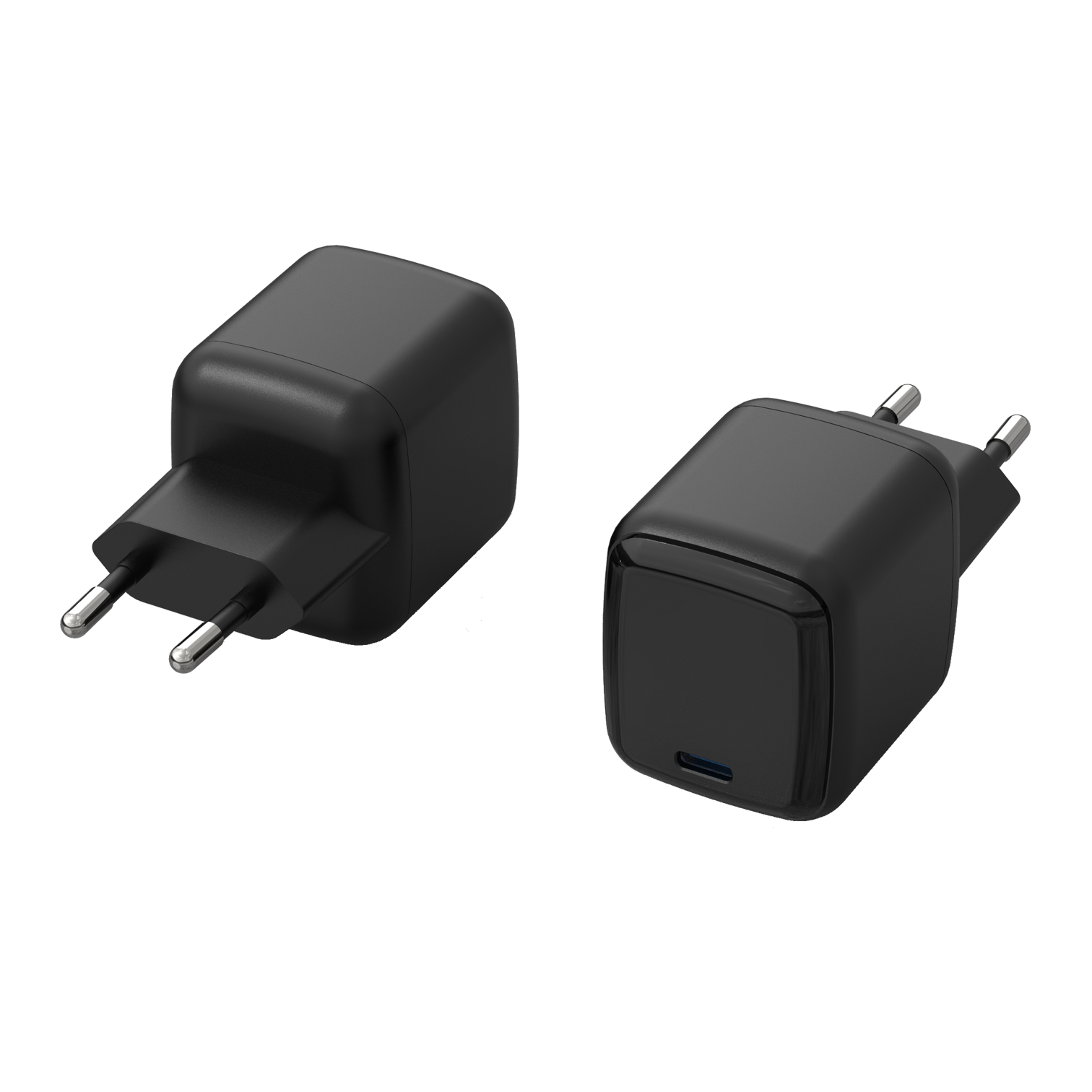

HNP65EU-CPDGAN
