HNP65EU-1C

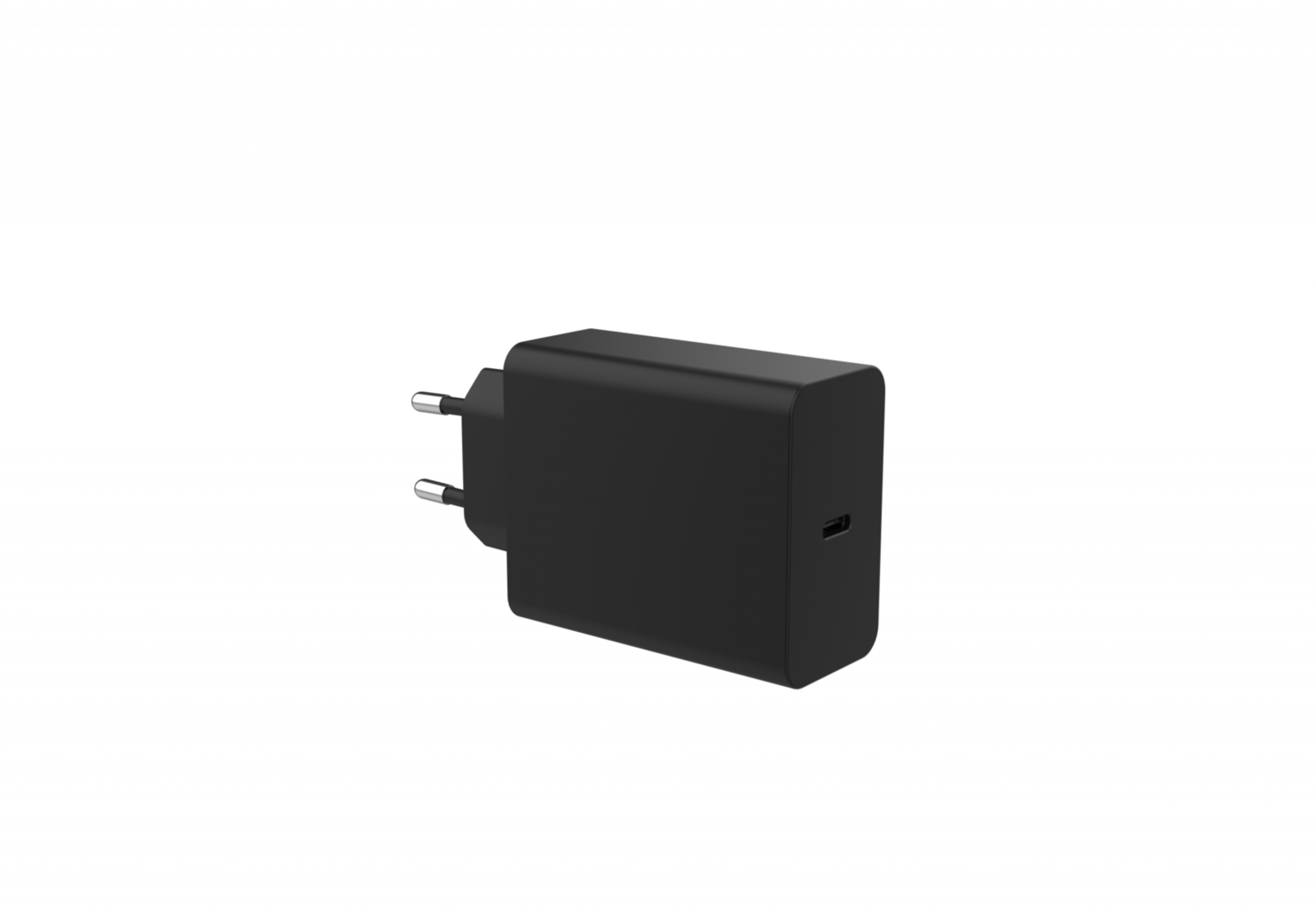

HN-Power Wall Mount Power Supply 65W 5V 3A USB-C

HNP65EU-1CHNP65EU-1C
NEW
Manufacturer Part No.
HNP65EU-1C
Schukat Part No.
HNP65EU-1C
Manufacturer
HN-Power
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

10 Pcs. in stock

Planned delivery time
Ø 11 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 80 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Package/Case
Wall Mount Power Supply
Output Power
65 W
Output voltage
5 V
Output current
3.000 A
Efficiency
91.06 %
Connection type, output
USB-C
RoHS-Conform

Specifications

Close all

General

Manufacturer
  • HN-Power
Series
  • HNP65EU
Product group
  • M5284
Application
  • ITE
  • Industry
Package/Case
  • Wall Mount Power Supply
Dimension: Length
  • 51.2 mm
Dimension: Width
  • 28.4 mm
Dimension: Height
  • 98.55 mm
Weight
  • 124 g
Manufacturer's warranty (years)
  • 1
Product description
  • The HNP65EU-1C is a high-performance 65-watt USB-C™ Power Delivery adapter designed for modern, power-hungry devices and industrial-grade applications. Supporting PD 3.0, QC 3.0, PPS and multiple fast-charging standards (Apple 2.4A, Samsung AFC/FCP, BC1.2), it delivers stable and reliable power for ultrabooks, tablets, smartphones, networking hardware, IoT systems and professional electronics.With extremely low standby power consumption (<0.3 W), double insulation and comprehensive protection against overload, short circuit, overvoltage and overcurrent, the unit fully complies with EU CoC V5 Tier 2 and DOE VI efficiency requirements.Its compact housing offers maximum power density, making it ideal for industrial environments, IT, communication systems and mobile professional equipment. - Single-board computers (Jetson, Raspberry Pi, Banana Pi, etc.) - Wireless & IoT communication devices - Networking equipment & peripherals - Ultrabooks and tablets up to 65 W - Professional instrumentation and automation systems - Smartphones with fast-charging support - Office & industrial electronics
Features
  • USB-C PD
Application note
  • USB-C Power Delivery feature with output voltages of 5V, 9V, 12V, 15V, or 20V.

Operating conditions

Operating Temperature Min.
  • -10 °C
Operating Temperature Max.
  • 25 °C
Storage Temperature Min.
  • -20 °C
Storage Temperature Max.
  • 70 °C

Input

Mains frequency min.
  • 50 Hz
Mains frequency max.
  • 60 Hz
Input voltage min. AC
  • 100 V
Input voltage max. AC
  • 240 V
Input current
  • 0.7 A
Efficiency
  • 91.06 %
Efficiency (at 10% load)
  • 86.69 %
Average efficiency
  • 91.06 %
No load power, less than
  • 0.3 W
Leakage current, max.
  • 0.25 mA
Power factor correction (PFC)
Connection type, input
  • Euro Plug

Output

Number of outputs
  • 1
Output Power
  • 65 W
Output voltage
  • 5 V
Selectable output voltage
Ripple & Noise
  • 200 mVp-p
Output current
  • 3.000 A
Overload protection
Type of overload protection
  • Hiccup
Short-circuit protection
Overvoltage protection
Overtemperature protection
Connection type, output
  • USB-C

Safety/Certifications

Protection class
  • II
Isolation voltage I/P-O/P
  • 3,000 V
Energy level
  • (EU) 2019/1782 + Level VI
Approvals
  • CE
  • EN
Standards (EMC)
  • EN 55032
Standards (safety)
  • EN 62368-1

Other Products

All Products of the Series
NEW
Loading...

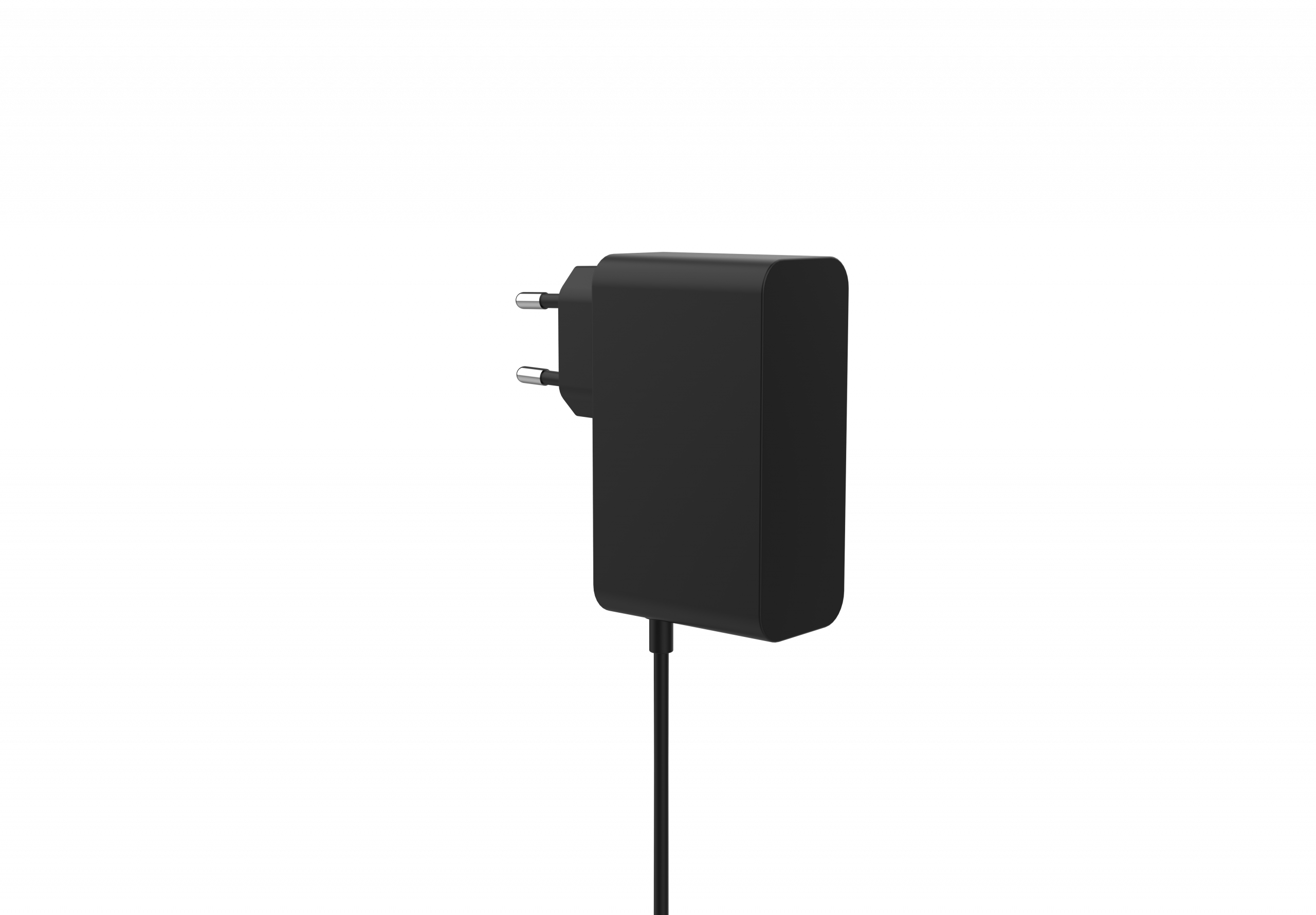

HNP65EU-C
