HNP60-UNIL6

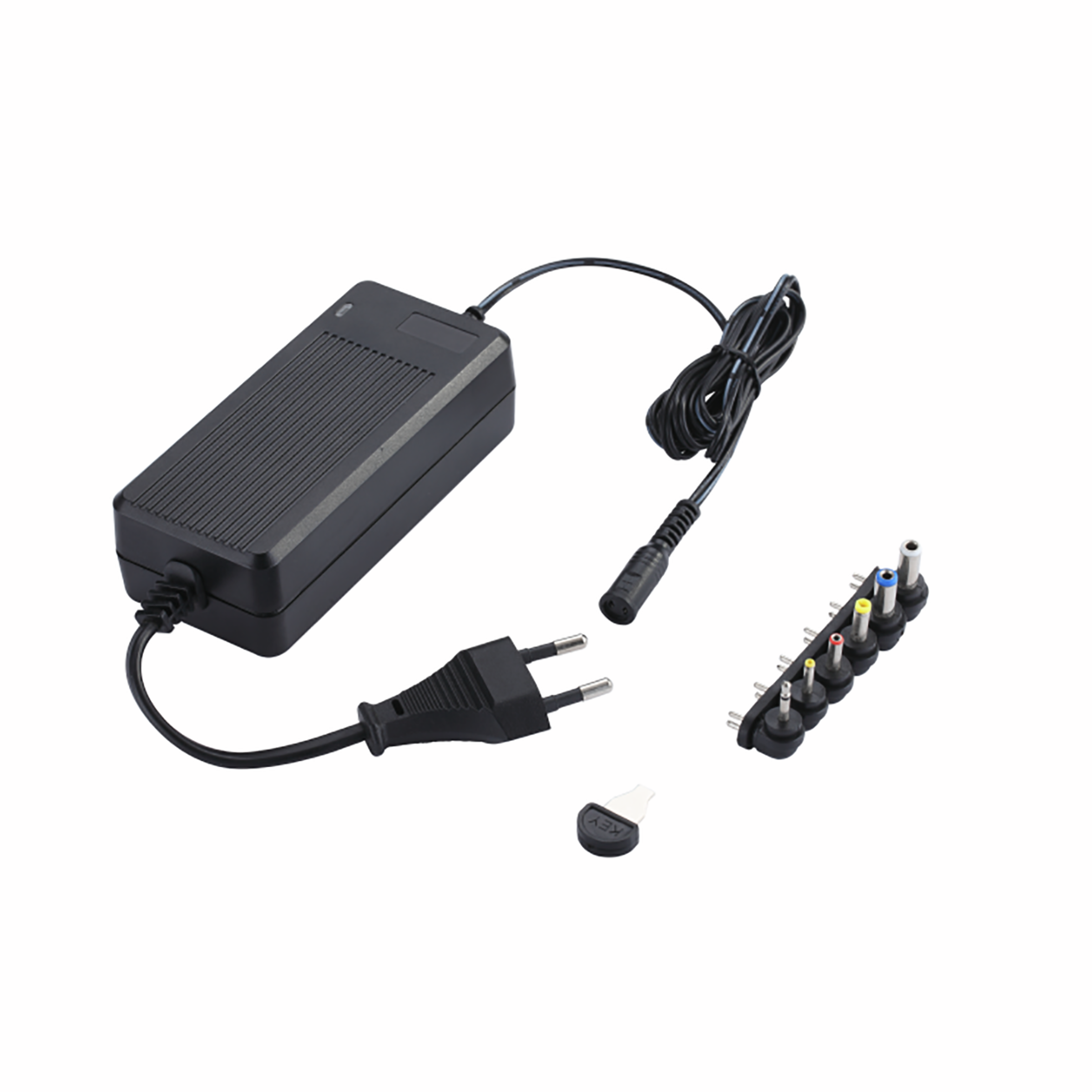

HN-Power Desktop Power Supply 60W 24V 2,5A Plug Adapter

HNP60-UNIL6HNP60-UNIL6
Manufacturer Part No.
HNP60-UNIL6
Schukat Part No.
HNP60-UNIL6
Manufacturer
HN-Power
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

45 Pcs. in stock

Next Stock Receipt
Week 40/2026
40 Pcs.
Planned delivery time
Ø 19 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 40 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Notice
Cross-references:
Here you will find suitable AC connection cables.
Package/Case
Desktop Power Supply
Output Power
60 W
Output voltage
24 V
Output current
2.500 A
Connection type, output
Plug Adapter
RoHS-Conform

Specifications

Close all

General

Manufacturer
  • HN-Power
Series
  • HNP60-UNIL6
Product group
  • M5305
Application
  • ITE
  • Industry
Package/Case
  • Desktop Power Supply
Dimension: Length
  • 138 mm
Dimension: Width
  • 52 mm
Dimension: Height
  • 33.5 mm
Weight
  • 305 g
Manufacturer's warranty (years)
  • 1
Product description
  • Discover the HNP60-UNIL6 60W universal power supply – the perfect solution for tablets, smartphones, telecommunications devices and mobile equipment. This compact desktop power supply impresses with its high efficiency, ErP Step 3 / DOE Level VI compliance and flexible applications. With 7 selectable output voltages (9–24 V) and 6 different DC connectors, this universal AC/DC power supply is ideal as a replacement power supply for a wide range of devices. The integrated overload and short-circuit protection, double insulation and low no-load power consumption guarantee maximum safety and energy efficiency. Thanks to its compact design (138 × 52 × 33.5 mm, 305 g), the power supply fits perfectly on any desk or in mobile applications. With a universal AC input (90–264 VAC) and multiple output options, it is the flexible solution for peripheral devices, networking equipment and wireless communication.
Application note
  • Includes 6 DC adaptor plugs (3.5 × 1.35, 5.5 × 2.1, 5.5 × 2.5, 2.35 × 0.7, 4.0 × 1.7, 2.5 mm mono plug)
Notice

Operating conditions

Operating Temperature Min.
  • 0 °C
Operating Temperature Max.
  • 40 °C
Storage Temperature Min.
  • -10 °C
Storage Temperature Max.
  • 80 °C

Input

Mains frequency min.
  • 47 Hz
Mains frequency max.
  • 63 Hz
Input voltage min. AC
  • 90 V
Input voltage max. AC
  • 264 V
Input current
  • 1.5 A
Efficiency (at 10% load)
  • 86.2 %
Average efficiency
  • 90.3 %
No load power, less than
  • 0.15 W
Leakage current, max.
  • 0.25 mA
Inrush current, max.
  • 40 A
Power factor correction (PFC)
Connection type, input
  • Euro Plug

Output

Number of outputs
  • 1
Output Power
  • 60 W
Output voltage
  • 24 V
Selectable output voltage
Selectable DC output voltages (V)
  • 9; 12; 13,5; 15; 18; 20; 24
Ripple & Noise
  • 300 mVp-p
Output current
  • 2.500 A
Overload protection
Short-circuit protection
Overvoltage protection
Overtemperature protection
Connection type, output
  • Plug Adapter
Cable length, output
  • 100 cm

Safety/Certifications

Protection class
  • II
Isolation voltage I/P-O/P
  • 3,000 V
Energy level
  • (EU) 2019/1782 + Level VI
Approvals
  • CE
  • EN
  • UKCA
Standards (EMC)
  • EN 55032
Standards (safety)
  • EN 62368-1
