HNP40F-2CPD

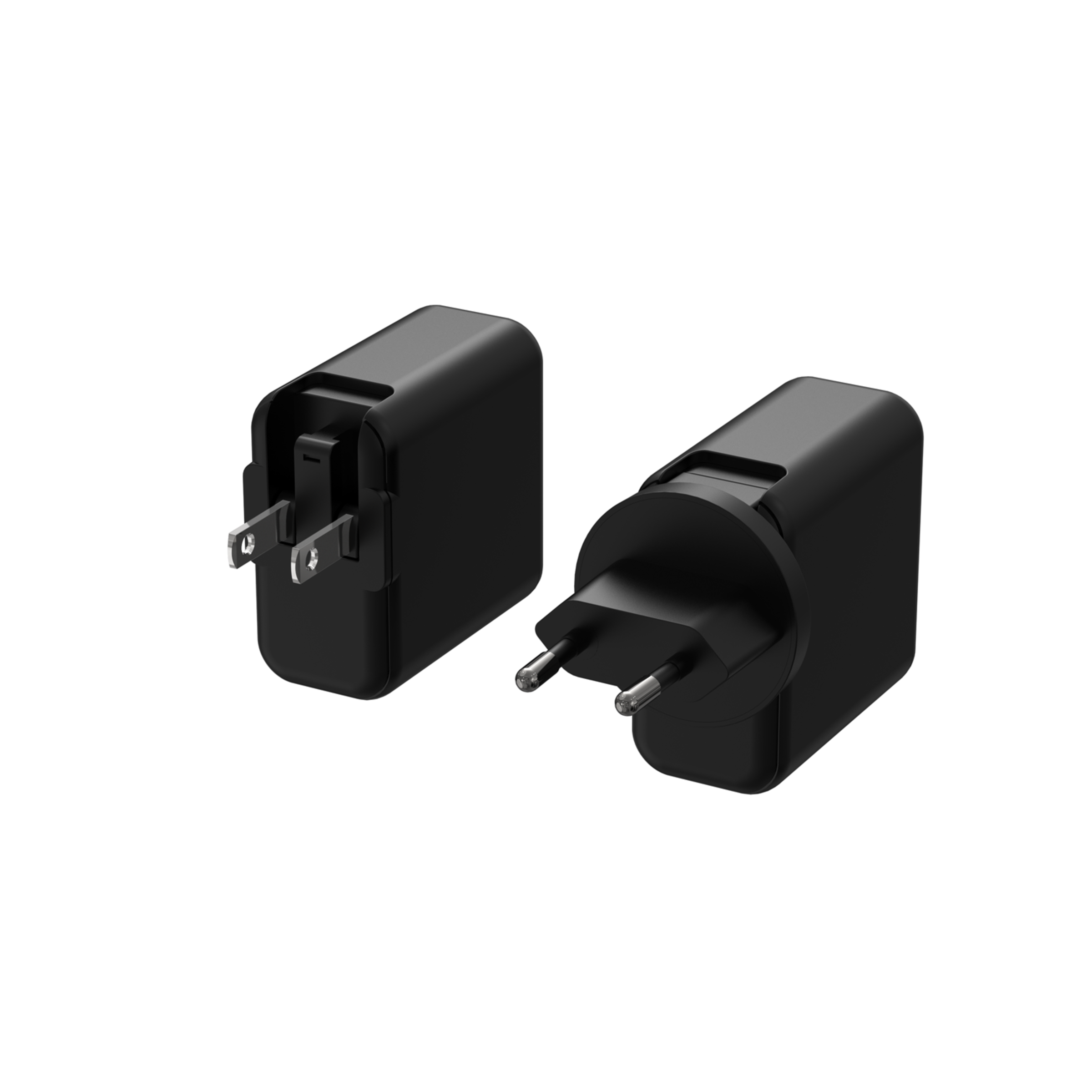

HN-Power Wall Mount Power Supply 40W 12V 1,67A USB-C

HNP40F-2CPDHNP40F-2CPD
Manufacturer Part No.
HNP40F-2CPD
Schukat Part No.
HNP40F-2CPD
Manufacturer
HN-Power
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

9 Pcs. in stock

Planned delivery time
Ø 19 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 50 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Notice
Cross-references:
Here you will find suitable USB-C cables.
Here you will find suitable USB connectors.
Package/Case
Wall Mount Power Supply
Output Power
40 W
Output voltage
12 V
Output voltage, channel 2
12 V
Output current
1.670 A
Output current, channel 2
1.670 A
Connection type, output
USB-C
RoHS-Conform

Specifications

Close all

General

Manufacturer
  • HN-Power
Series
  • HNP40F
Product group
  • M5284
Application
  • ITE
  • Industry
Package/Case
  • Wall Mount Power Supply
Dimension: Length
  • 55 mm
Dimension: Width
  • 29 mm
Dimension: Height
  • 57 mm
Weight
  • 115 g
Manufacturer's warranty (years)
  • 1
Product description
  • The HNP40F-2CPD 40-watt USB-C™ adapter is a powerful and compact AC/DC mains power supply with 2x USB Type-C™ PD 3.0 ports for professional applications and modern devices. With a total output of 40W, Power Delivery 3.0 (PD 3.0) and Quick Charge 3.0 (QC 3.0), this USB-C fast charger is ideal for smartphones, tablets, single-board computers, networking equipment, telecommunications and industrial peripherals. Thanks to a wide input voltage range of 90–264 VAC, the 40W USB-C power supply can be used worldwide (EU plug included, US input available). The high-quality construction, featuring double insulation, overload protection, short-circuit protection, overvoltage protection (Hiccup Mode) and overcurrent protection with auto-restart, guarantees maximum safety and reliability. -Single-board computers (SBC) -Wireless communication systems -Network technology & routers -Telecommunications -Industrial peripherals -Mobile devices & tablets -Latest smartphones
Notice

Operating conditions

Operating Temperature Min.
  • -10 °C
Operating Temperature Max.
  • 35 °C
Storage Temperature Min.
  • -20 °C
Storage Temperature Max.
  • 70 °C

Input

Mains frequency min.
  • 47 Hz
Mains frequency max.
  • 63 Hz
Input voltage min. AC
  • 90 V
Input voltage max. AC
  • 264 V
Input current
  • 1.2 A
Efficiency (at 10% load)
  • 80.72 %
Average efficiency
  • 89.55 %
No load power, less than
  • 0.17 W
Leakage current, max.
  • 0.25 mA
Inrush current, max.
  • 100 A
Power factor correction (PFC)
Connection type, input
  • Euro Plug

Output

Number of outputs
  • 2
Output Power
  • 40 W
Output voltage
  • 12 V
Output voltage, channel 2
  • 12 V
Selectable output voltage
Selectable DC output voltages (V)
  • 5; 9; 12
Ripple & Noise
  • 200 mVp-p
Output current
  • 1.670 A
Output current, channel 2
  • 1.670 A
Overload protection
Type of overload protection
  • Hiccup
Short-circuit protection
Overvoltage protection
Overtemperature protection
Connection type, output
  • USB-C

Safety/Certifications

Protection class
  • II
Isolation voltage I/P-O/P
  • 4,000 V
Energy level
  • (EU) 2019/1782 + Level VI
Approvals
  • CE
  • EN
Standards (EMC)
  • EN 55032
Standards (safety)
  • EN 62368-1
