HNP30EU-1C1A

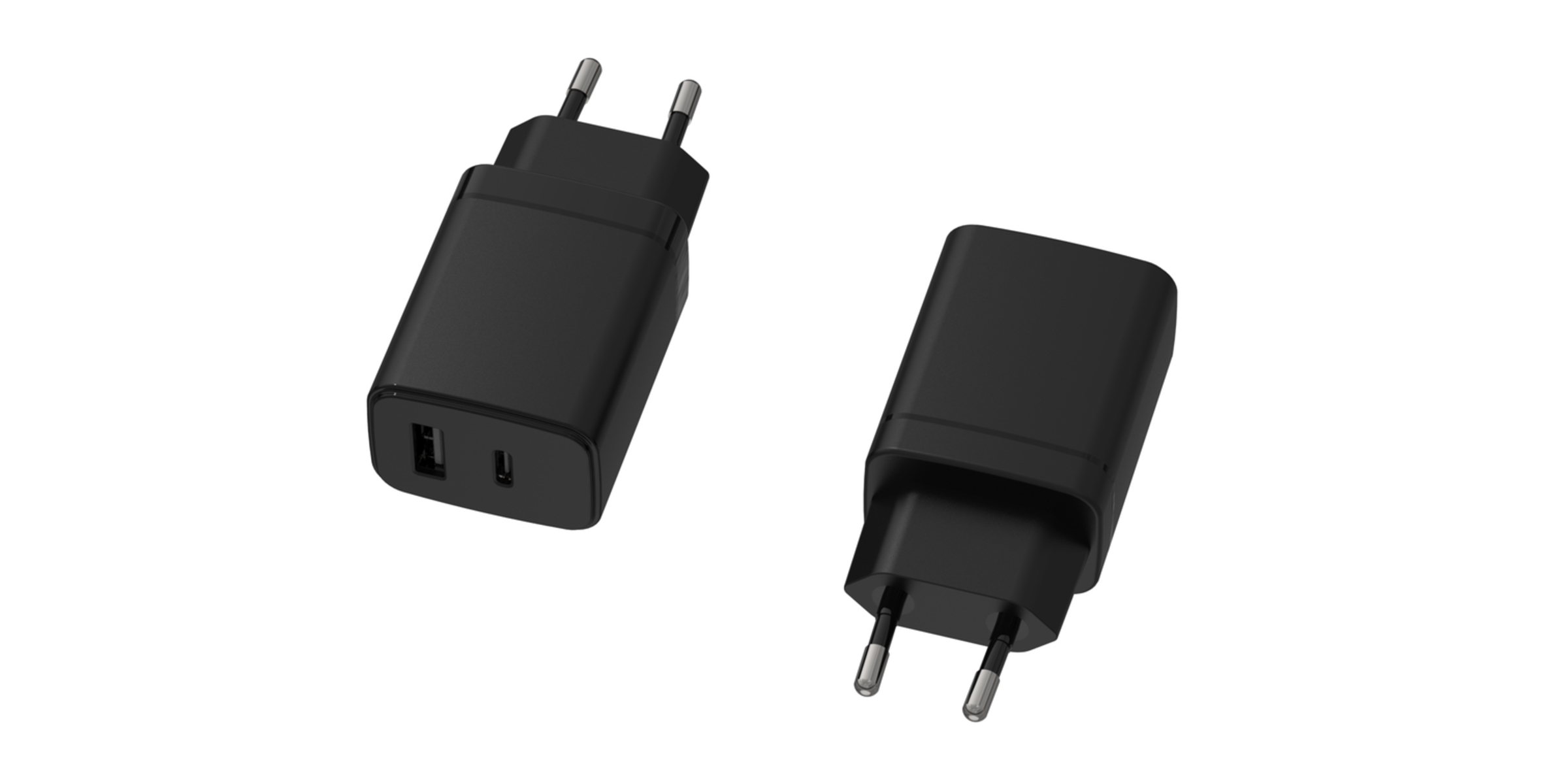

HN-Power Wall Mount Power Supply 30W 5V 3A USB-C USB-A

HNP30EU-1C1A
NEW
Manufacturer Part No.
HNP30EU-1C1A
Schukat Part No.
HNP30EU-1C1A
Manufacturer
HN-Power
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

10 Pcs. in stock

Planned delivery time
Ø 11 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Package/Case
Wall Mount Power Supply
Output Power
30 W
Output voltage
5 V
Output current
3.000 A
Efficiency
89.83 %
Connection type, output
USB-A
USB-C
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • HN-Power
Series
  • HNP30EU
Product group
  • M5284
Application
  • ITE
  • Industry
Package/Case
  • Wall Mount Power Supply
Dimension: Length
  • 39.2 mm
Dimension: Width
  • 28 mm
Dimension: Height
  • 44 mm
Weight
  • 67 g
Manufacturer's warranty (years)
  • 1
Product description
  • The HNP30EU-1C1A 30-W USB-C™ + USB-A Adapter delivers maximum performance in an exceptionally compact form factor. With dimensions of only 39.2 × 28 × 44 mm, the adapter provides a full 30 watts of output power while meeting strict efficiency standards such as EU CoC V5 Tier 2 and EnergyStar / DOE VI.Featuring USB Power Delivery 3.0 and Quick Charge 3.0, it ensures fast and reliable charging for modern smartphones, tablets, and portable electronic devices. The integrated intelligent power distribution automatically allocates power between the USB-C and USB A ports depending on the connected load.The robust internal design with overload, overcurrent, and short-circuit protection, combined with double insulation, guarantees high operational safety. Its extremely low standby power consumption (<0.3 W) makes it ideal for modern, energy-efficient applications.With a wide input voltage range of 100–240 VAC, the adapter is suitable for worldwide use. Certified EMC and safety compliance ensures reliable integration in professional IT, industrial, telecom, and consumer applications. - 30-Watt AC/DC plug-in power supply - 1× USB-C™ + 1× USB-A - Fast charging: PD 3.0 & QC 3.0 - Double-insulated design - Ultra-small form factor - Overload and short-circuit protection - Very low standby power consumption (<0.3 W) - High efficiency: EU CoC V5 Tier 2 / DOE VI
Features
  • USB-C PD
Application note
  • USB-C Power Delivery feature with output voltages of 5V, 9V, 12V, 15V, or 20V.

Operating conditions

Operating Temperature Min.
  • -10 °C
Operating Temperature Max.
  • 25 °C
Storage Temperature Min.
  • -20 °C
Storage Temperature Max.
  • 70 °C

Input

Mains frequency min.
  • 50 Hz
Mains frequency max.
  • 60 Hz
Input voltage min. AC
  • 100 V
Input voltage max. AC
  • 240 V
Input current
  • 1 A
Efficiency
  • 89.83 %
Efficiency (at 10% load)
  • 79.78 %
Average efficiency
  • 89.83 %
No load power, less than
  • 0.3 W
Leakage current, max.
  • 0.25 mA
Power factor correction (PFC)
Connection type, input
  • Euro Plug

Output

Number of outputs
  • 2
Output Power
  • 30 W
Output voltage
  • 5 V
Selectable output voltage
Ripple & Noise
  • 200 mVp-p
Output current
  • 3.000 A
Overload protection
Type of overload protection
  • Hiccup
Short-circuit protection
Overvoltage protection
Overtemperature protection
Connection type, output
  • USB-A
  • USB-C

Safety/Certifications

Protection class
  • II
Isolation voltage I/P-O/P
  • 3,000 V
Energy level
  • (EU) 2019/1782 + Level VI
Approvals
  • CE
  • EN
Standards (EMC)
  • EN 55032
Standards (safety)
  • EN 62368-1

Other Products

All Products of the Series
Loading...

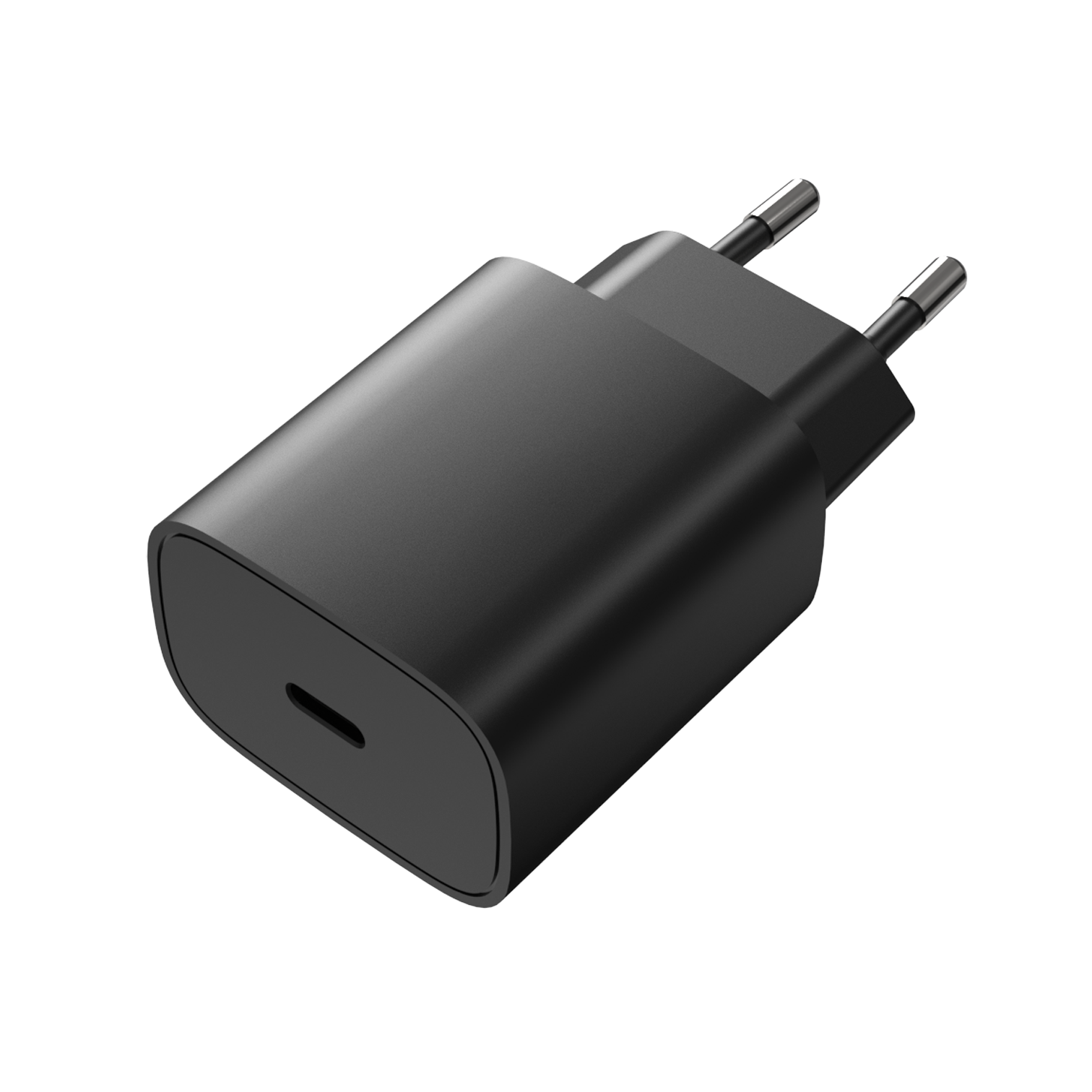

HNP30EU-CPD
