Fact Sheet
Package/Case
Wall Mount Power Supply
Output Power
24 W
Output voltage
12 V
Output current
2.000 A
Connection type, output
Plug Adapter
RoHS-Conform
Specifications
Close all
General
Manufacturer
HN-Power
Series
HNP24-UNIL6
Product group
M5223
Application
ITE
Industry
Package/Case
Wall Mount Power Supply
Dimension: Length
92.2 mm
Dimension: Width
46.2 mm
Dimension: Height
35.8 mm
Weight
165 g
Label
Nemko
Manufacturer's warranty (years)
1

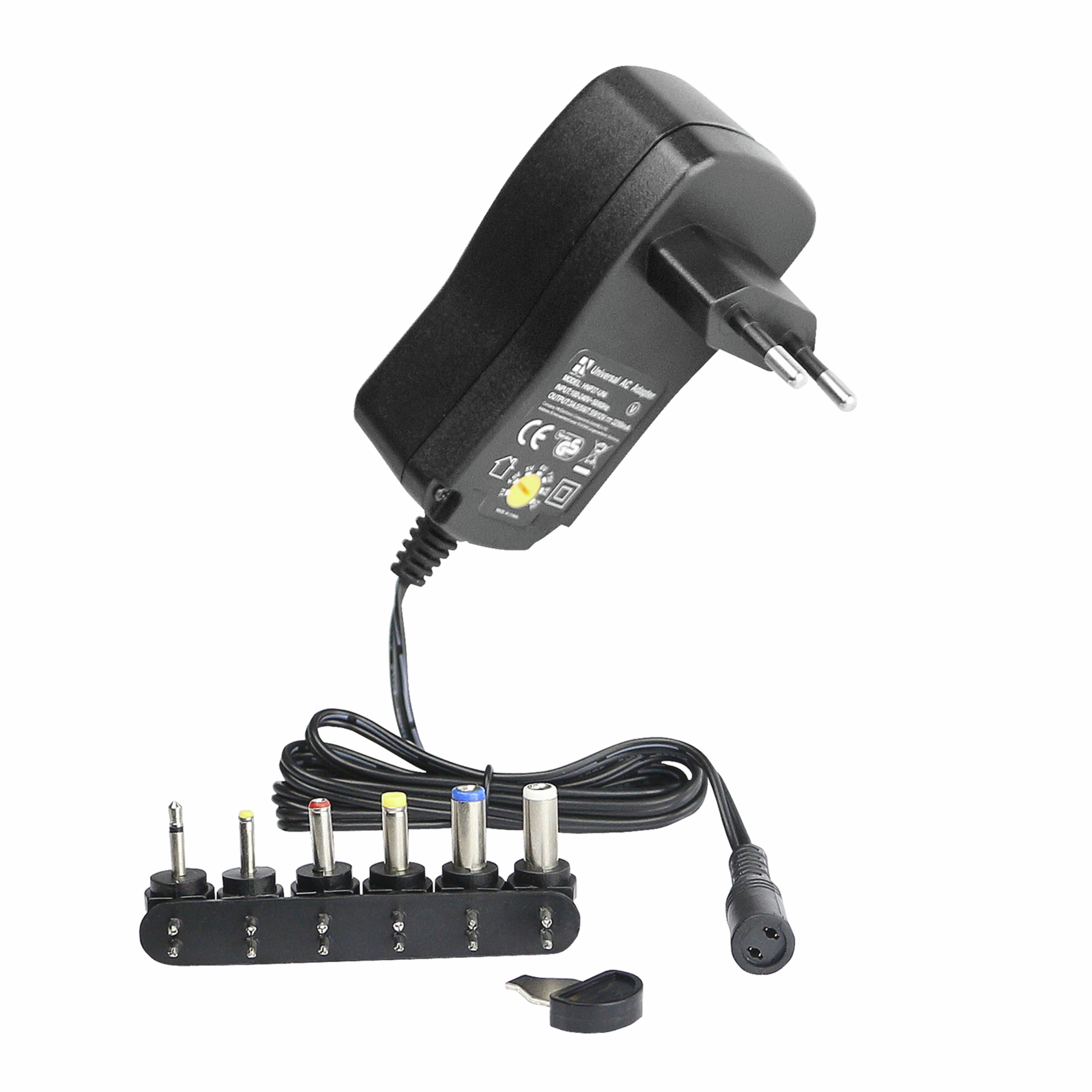

Product description
The HNP24-UNIL6 universal plug-in power supply is a compact, high-performance 24-watt AC/DC power supply with a flexibly adjustable output voltage ranging from 3 to 12 volts. Thanks to 7 selectable voltage settings and 6 DC plugs supplied, this power supply is ideal as a universal replacement for numerous electronic devices.
This highly efficient switching power supply meets the current ErP Step 3 / DOE Level VI energy efficiency requirements and impresses with its low no-load power consumption, high operational reliability and double insulation. Protection functions against overload, short circuit and overvoltage ensure reliable continuous operation – even in demanding applications.
Thanks to its compact, flat design, the power supply is ideal for use in telecommunications, networking, wireless communication, peripheral devices and mobile devices such as tablets and smartphones.
-Universal replacement for original power supplies
-Wireless communication devices
-Network technology & peripherals
-Mobile devices, tablets & smartphones
-Telecommunications & portable electronics
Application note
Including 6 DC adaptor plugs (3.5 × 1.35, 5.5 × 2.1, 5.5 × 2.5, 2.35 × 0.7, 4.0 × 1.7, 2.5 mm mono plug)
