HNP20EU-CPDV2

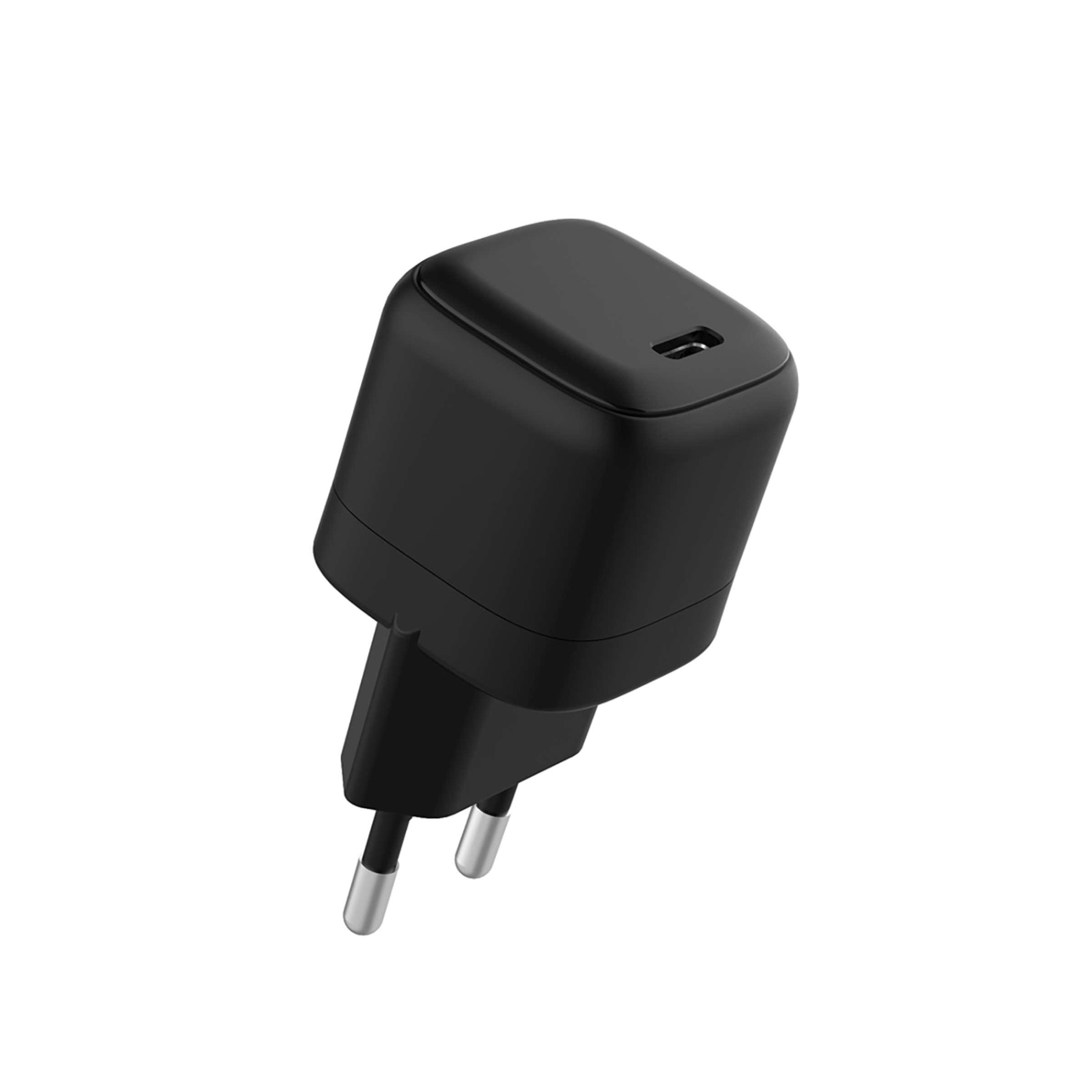

HN-Power Wall Mount Power Supply 20,04W 12V 1,67A USB-C

HNP20EU-CPDV2HNP20EU-CPDV2
Manufacturer Part No.
HNP20EU-CPDV2
Schukat Part No.
HNP20EU-CPDV2
Manufacturer
HN-Power
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

24 Pcs. in stock

Planned delivery time
Ø 15 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 200 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Notice
Cross-references:
Here you will find suitable USB-C cables.
Here you will find suitable USB connectors.
Package/Case
Wall Mount Power Supply
Output Power
20.04 W
Output voltage
12 V
Output current
1.670 A
Connection type, output
USB-C
RoHS-Conform

Specifications

Close all

General

Manufacturer
  • HN-Power
Series
  • HNP20EU-CPD
Product group
  • M5284
Application
  • ITE
  • Industry
Package/Case
  • Wall Mount Power Supply
Dimension: Length
  • 33.3 mm
Dimension: Width
  • 33.3 mm
Dimension: Height
  • 33.6 mm
Weight
  • 47 g
Manufacturer's warranty (years)
  • 1
Product description
  • The HNP20EU-CPDV2 USB Type-C™ PD 3.0 adapter is an ultra-compact, energy-efficient 20-watt AC/DC plug-in switching power supply for modern industrial and consumer applications. Thanks to USB Power Delivery 3.0 and Quick Charge 3.0, the adapter enables fast, intelligent and safe charging of the latest smartphones, tablets and portable devices. The V2 version features a particularly small, low-profile housing, extremely low no-load power consumption (< 0.1 W) and very high efficiency in accordance with EU CoC V5 Tier 2 and EnergyStar DOE VI. Double insulation and comprehensive protection mechanisms against overload, short circuit, overcurrent and overvoltage ensure reliable continuous operation. With a wide input voltage range of 90–264 VAC, the HNP20EU-CPDV2 can be used worldwide and complies with all relevant safety, EMC and environmental standards. This makes it the ideal power supply for compact, high-performance USB-C applications. -Single-board computers (SBCs) -Network technology and telecommunications -Wireless communication systems -Mobile and portable devices -Peripheral devices and tablets -Latest smartphones with USB-C fast charging
Features
  • Adjustable output voltage
Application note
  • Standard colour: black. White available from a minimum order quantity (MOQ) of 1,000 pieces.
Notice

Operating conditions

Operating Temperature Min.
  • -10 °C
Operating Temperature Max.
  • 35 °C
Storage Temperature Min.
  • -20 °C
Storage Temperature Max.
  • 70 °C

Input

Mains frequency min.
  • 47 Hz
Mains frequency max.
  • 63 Hz
Input voltage min. AC
  • 90 V
Input voltage max. AC
  • 264 V
Input current
  • 0.7 A
Efficiency (at 10% load)
  • 78.82 %
Average efficiency
  • 88.78 %
No load power, less than
  • 0.03 W
Leakage current, max.
  • 0.25 mA
Inrush current, max.
  • 60 A
Power factor correction (PFC)
Connection type, input
  • Euro Plug

Output

Number of outputs
  • 1
Output Power
  • 20.04 W
Output voltage
  • 12 V
Selectable output voltage
Selectable DC output voltages (V)
  • 5; 9; 12
Ripple & Noise
  • 200 mVp-p
Output current
  • 1.670 A
Overload protection
Type of overload protection
  • Hiccup
Short-circuit protection
Overvoltage protection
Overtemperature protection
Connection type, output
  • USB-C

Safety/Certifications

Protection class
  • II
Isolation voltage I/P-O/P
  • 4,000 V
Energy level
  • (EU) 2019/1782 + Level VI
Approvals
  • CE
  • EN
Standards (EMC)
  • EN 55032
Standards (safety)
  • EN 62368-1

Other Products

All Products of the Series
Loading...

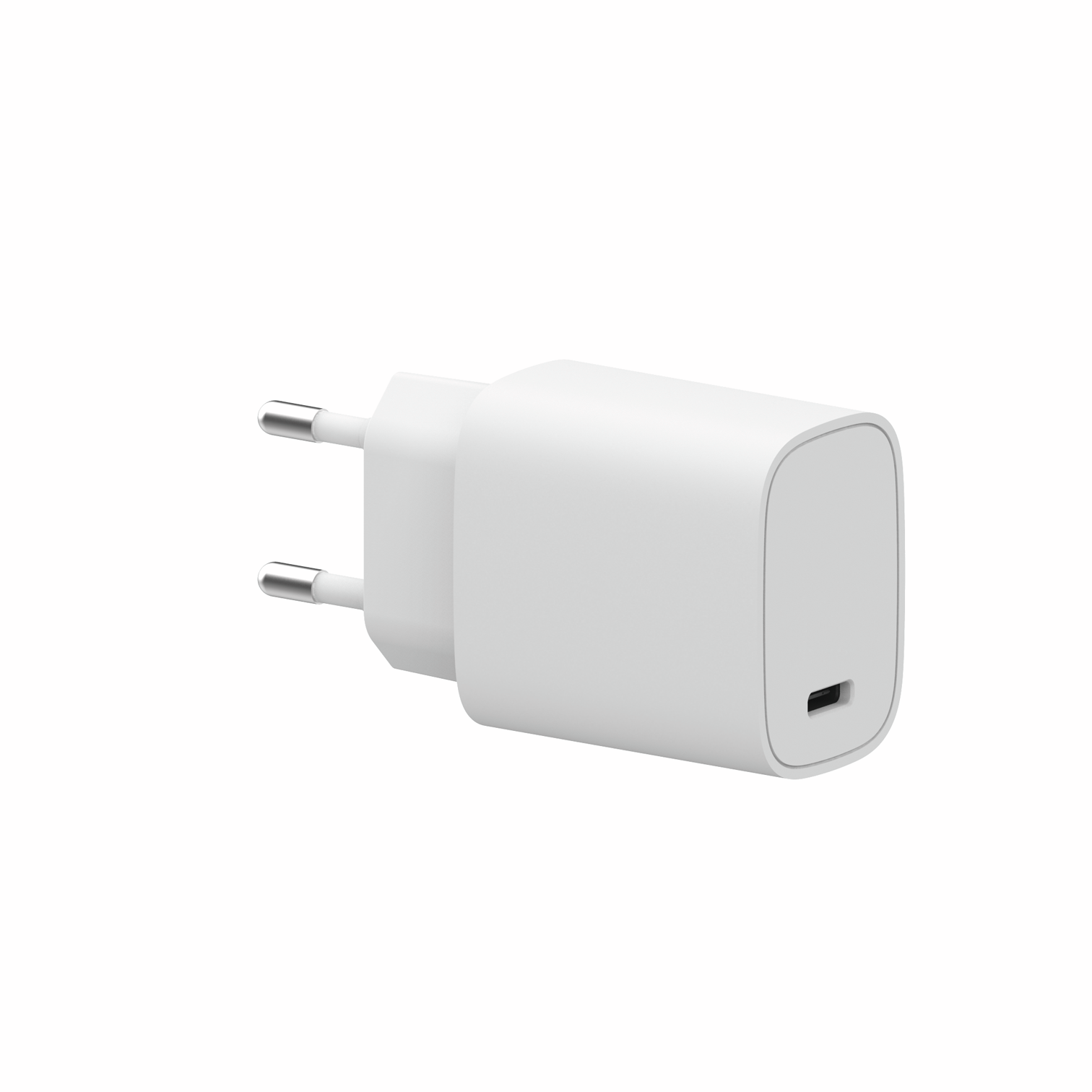

HNP20EU-CPD
