31 Pcs. in stock
Planned delivery time
Ø 19 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)

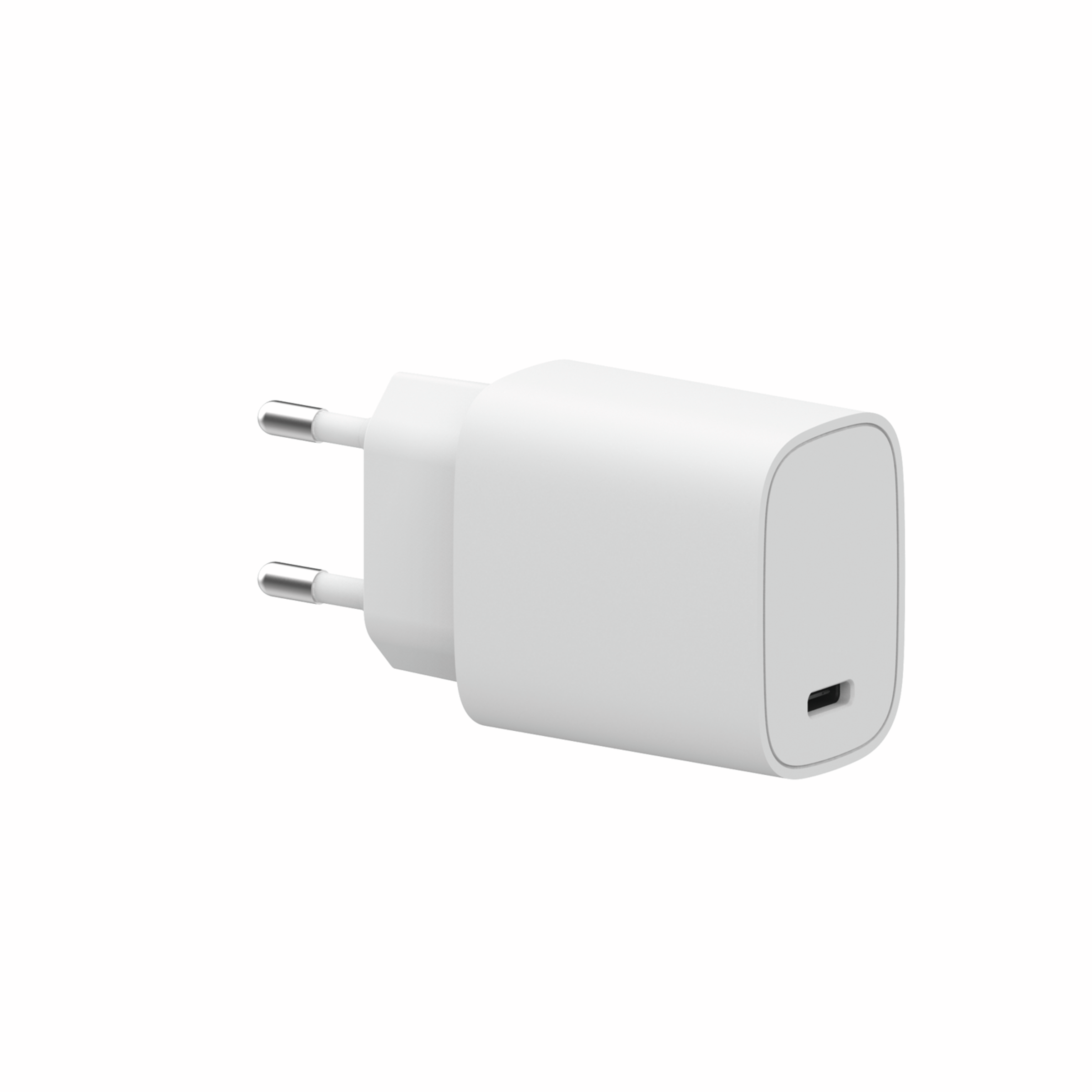

The HNP20EU-CPD USB Type-C™ PD 3.0 adapter is a compact, energy-efficient 20-watt AC/DC plug-in switching power supply adapter for modern applications in industry, IT and consumer electronics. Thanks to USB Power Delivery 3.0 and Quick Charge 3.0, this power supply is ideal for fast and safe charging of the latest smartphones, tablets and portable devices.
The adapter stands out thanks to its compact, low-profile design, double insulation and extremely low no-load power consumption (< 0.075 W). Comprehensive protection functions, such as overload, short-circuit, overcurrent and overvoltage protection, ensure reliable continuous operation – even in demanding environments.
The wide input voltage range of 90–264 VAC enables worldwide use. Compliance with current energy efficiency and safety standards (EU CoC V5 Tier 2, EnergyStar DOE VI, CE, EN62368-1, RoHS) makes the HNP20EU-CPD a future-proof solution for professional applications.
-20 W USB Type-C™ AC/DC power supply
-USB Power Delivery PD 3.0 & Quick Charge 3.0
-Output voltages: 5 V / 9 V / 12 V
-Compact, pluggable switching power supply
-Extremely low standby power consumption
-High efficiency in accordance with DOE VI / EU CoC V5 Tier 2
-Overload, short-circuit, overcurrent and overvoltage protection
-CE, RoHS and EMC compliant
