HNP20EU-1C

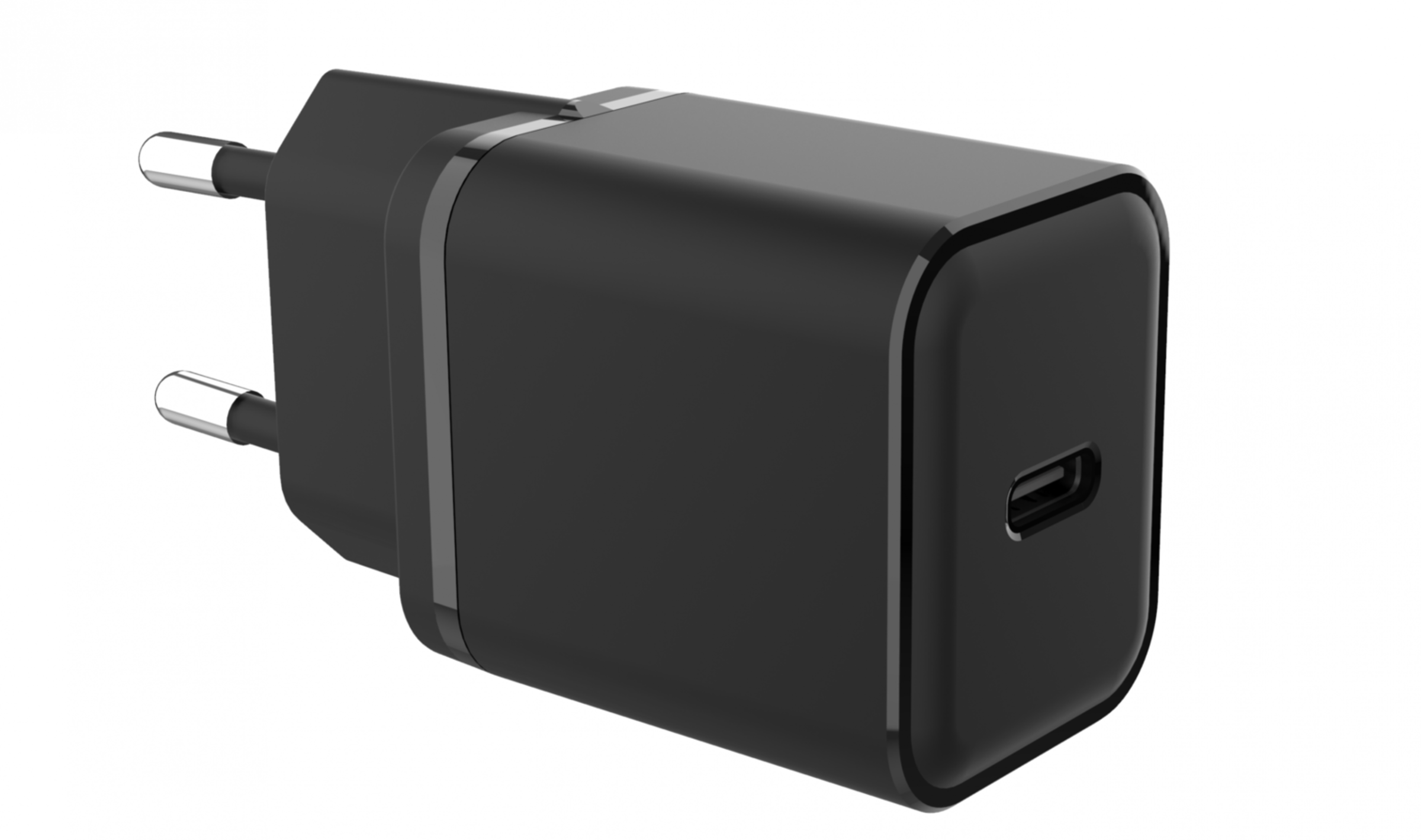

HN-Power Wall Mount Power Supply 20W 5V 3A USB-C

HNP20EU-1C
NEW
Manufacturer Part No.
HNP20EU-1C
Schukat Part No.
HNP20EU-1C
Manufacturer
HN-Power
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

9 Pcs. in stock

Planned delivery time
Ø 11 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 270 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Package/Case
Wall Mount Power Supply
Output Power
20 W
Output voltage
5 V
Output current
3.000 A
Efficiency
88.13 %
Connection type, output
USB-C
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • HN-Power
Series
  • HNP20EU
Product group
  • M5284
Application
  • ITE
  • Industry
Package/Case
  • Wall Mount Power Supply
Dimension: Length
  • 36.05 mm
Dimension: Width
  • 28.05 mm
Dimension: Height
  • 77.1 mm
Weight
  • 46 g
Manufacturer's warranty (years)
  • 1
Product description
  • The 20W USB-C™ Power Delivery adapter from HN Electronic delivers maximum power in a compact design. Thanks to the latest PD 3.0 and QC 3.0 fast-charging technology, it charges smartphones, tablets, single-board computers, and modern wireless devices significantly faster and more safely than conventional power adapters. The adapter meets current EU efficiency standards (CoC V5 Tier 2 / DOE VI) and features extremely low standby power consumption, double insulation, and reliable overload and short-circuit protection. Ideal for professional applications, industry, telecommunications, IT, and mobile devices.
Features
  • USB-C PD
Application note
  • USB-C Power Delivery feature with 5V, 9V, or 12V output voltage.

Operating conditions

Operating Temperature Min.
  • -10 °C
Operating Temperature Max.
  • 25 °C
Storage Temperature Min.
  • -20 °C
Storage Temperature Max.
  • 70 °C

Input

Mains frequency min.
  • 50 Hz
Mains frequency max.
  • 60 Hz
Input voltage min. AC
  • 100 V
Input voltage max. AC
  • 240 V
Input current
  • 0.7 A
Efficiency
  • 88.13 %
Efficiency (at 10% load)
  • 81.24 %
Average efficiency
  • 88.13 %
No load power, less than
  • 0.1 W
Leakage current, max.
  • 0.25 mA
Power factor correction (PFC)
Connection type, input
  • Euro Plug

Output

Number of outputs
  • 1
Output Power
  • 20 W
Output voltage
  • 5 V
Selectable output voltage
Ripple & Noise
  • 200 mVp-p
Output current
  • 3.000 A
Overload protection
Type of overload protection
  • Hiccup
Short-circuit protection
Overvoltage protection
Overtemperature protection
Connection type, output
  • USB-C

Safety/Certifications

Protection class
  • II
Isolation voltage I/P-O/P
  • 3,000 V
Energy level
  • (EU) 2019/1782 + Level VI
Approvals
  • CE
  • EN
Standards (EMC)
  • EN 55032
Standards (safety)
  • EN 62368-1
