HNP18-UNIL6

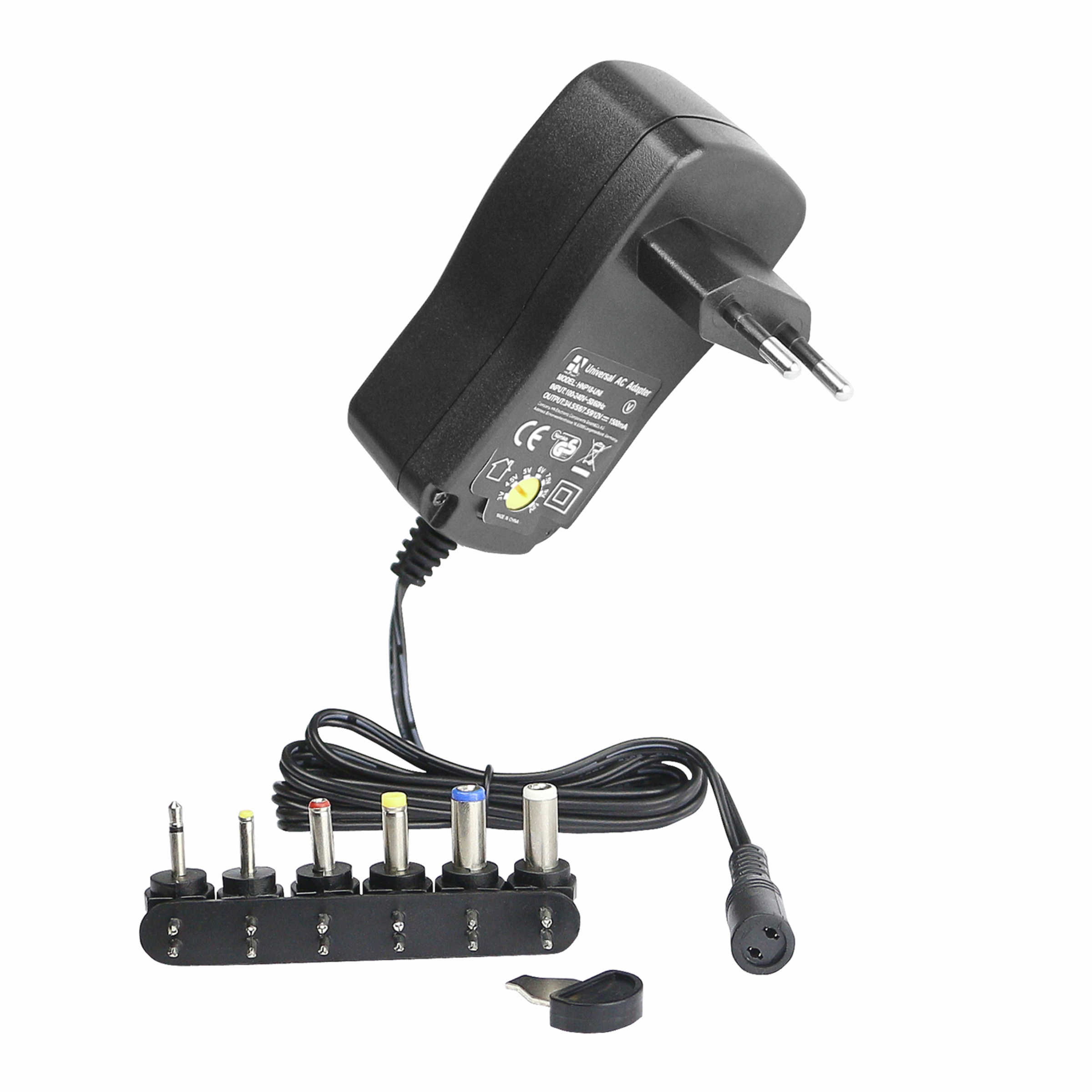

HN-Power Wall Mount Power Supply 18W 12V 1,5A Plug Adapter

HNP18-UNIL6HNP18-UNIL6
Manufacturer Part No.
HNP18-UNIL6
Schukat Part No.
HNP18-UNIL6
Manufacturer
HN-Power
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

7 Pcs. in stock

Planned delivery time
Ø 19 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 50 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Package/Case
Wall Mount Power Supply
Output Power
18 W
Output voltage
12 V
Output current
1.500 A
Connection type, output
Plug Adapter
RoHS-Conform

Specifications

Close all

General

Manufacturer
  • HN-Power
Series
  • HNP18-UNIL6
Product group
  • M5223
Application
  • ITE
  • Industry
Package/Case
  • Wall Mount Power Supply
Dimension: Length
  • 92.2 mm
Dimension: Width
  • 46.2 mm
Dimension: Height
  • 35.8 mm
Weight
  • 150 g
Label
  • Nemko
Manufacturer's warranty (years)
  • 1
Product description
  • The HNP18-UNIL6 series from HN Electronic Components offers maximum flexibility in a compact 18 W universal plug-in power supply. The seven fixed output voltages, ranging from 3 V to 12 V, can be conveniently selected and permanently set using the supplied adjustment key. With six interchangeable DC plugs, the adapter covers a wide range of common device connections and is therefore ideally suited as a universal replacement for original power supplies in service, retail and end-user applications. The double-insulated (Class II) switching power supply operates with a wide-range input of 90–264 VAC, offers overload, short-circuit, overcurrent (auto-restart) and overvoltage protection, and meets the requirements of ErP Step 3 / DOE Level VI. The low no-load power consumption (< 0.09 W) ensures energy-efficient operation. -Universal replacement adaptors -Wireless communication devices -Network technology -Peripheral devices -Mobile & portable equipment -Tablets & smartphones -Telecommunications equipment
Application note
  • Including 6 DC adaptor plugs (3.5 × 1.35, 5.5 × 2.1, 5.5 × 2.5, 2.35 × 0.7, 4.0 × 1.7, 2.5 mm mono plug)

Operating conditions

Operating Temperature Min.
  • 0 °C
Operating Temperature Max.
  • 40 °C
Storage Temperature Min.
  • -10 °C
Storage Temperature Max.
  • 80 °C

Input

Mains frequency min.
  • 47 Hz
Mains frequency max.
  • 63 Hz
Input voltage min. AC
  • 90 V
Input voltage max. AC
  • 264 V
Input current
  • 0.5 A
Efficiency (at 10% load)
  • 81.65 %
Average efficiency
  • 86.53 %
No load power, less than
  • 0.09 W
Leakage current, max.
  • 0.25 mA
Inrush current, max.
  • 30 A
Power factor correction (PFC)
Connection type, input
  • Euro Plug

Output

Number of outputs
  • 1
Output Power
  • 18 W
Output voltage
  • 12 V
Selectable output voltage
Selectable DC output voltages (V)
  • 3; 4,5; 5; 6; 7,5; 9; 12
Ripple & Noise
  • 200 mVp-p
Output current
  • 1.500 A
Overload protection
Short-circuit protection
Overvoltage protection
Overtemperature protection
Connection type, output
  • Plug Adapter
Cable length, output
  • 150 cm

Safety/Certifications

Protection class
  • II
Isolation voltage I/P-O/P
  • 3,000 V
Energy level
  • (EU) 2019/1782 + Level VI
Approvals
  • CE
  • EN
  • IEC
  • UKCA
Standards (EMC)
  • EN 55014
  • EN 55032
Standards (safety)
  • EN 60950-1
  • IEC 62368-1
