3 Pcs. in stock
Planned delivery time
Ø 19 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
Package/Case
Wall Mount Power Supply
Output Power
18 W
Output voltage
5 V
Output current
3.000 A
Connection type, output
5.5*2.1mm barrel connector
RoHS-Conform
Specifications
Close all
General
Manufacturer
HN-Power
Series
HNP18-CV2
Product group
M5284
Application
ITE
Industry
Package/Case
Wall Mount Power Supply
Dimension: Length
56 mm
Dimension: Width
30 mm
Dimension: Height
73 mm
Weight
93 g
Label
TÜV; Intertek
Manufacturer's warranty (years)
1
Product description

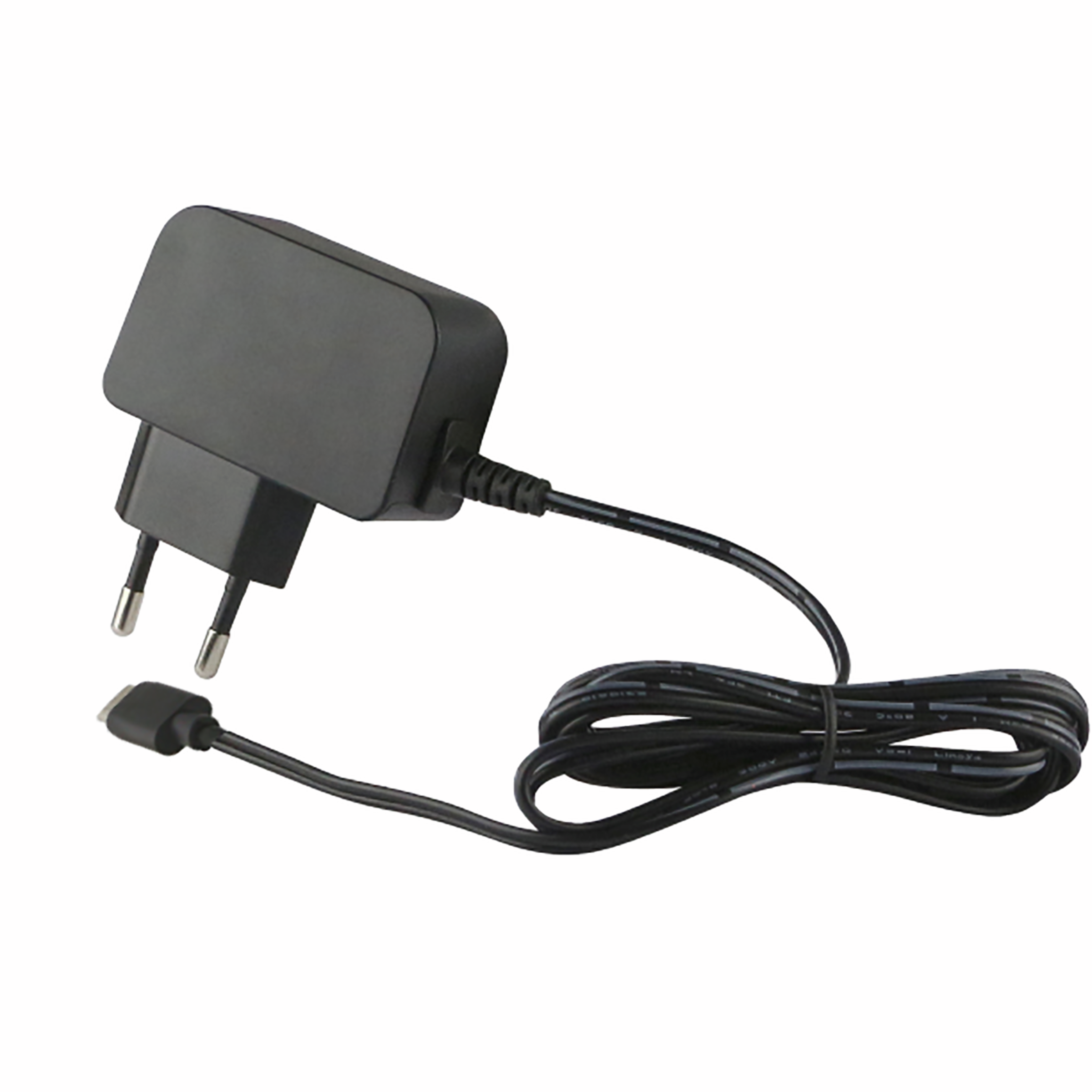

The HNP18-CV2 is a reliable 18-watt AC/DC plug-in power supply featuring a USB-C output and exceptionally low no-load power consumption. Designed for industrial applications, IT infrastructure and high-performance consumer electronics, it offers the highest levels of safety, efficiency and durability.
With an input voltage of 90–264 VAC, state-of-the-art switching power supply technology and protection functions against overload and short circuits, the power supply is ideally suited for worldwide use. The compact housing allows for flexible integration – whether for the Raspberry Pi 4®, microcontroller boards, IoT devices, network technology, mobile devices or telecommunications systems.
Energy efficiency in accordance with EU CoC V5 Tier 2 and EnergyStar / DOE VI ensures minimal standby power consumption and helps to reduce operating costs. Thanks to high-quality components, double insulation and international safety approvals (TÜV/GS, ETL), the HNP18-CV2 meets the high demands of professional environments.
Ideal for manufacturers, system integrators and discerning users who rely on high stability, a constant 5 V supply and certified quality.
-Input: 90–264 VAC, 47–63 Hz
-Output: 5.0 V DC / 3.0 A (USB-C)
-Power: 18 W
-Efficiency: DOE VI / EU CoC V5 Tier 2
-No-load consumption: < 0.075 W
-Ripple/noise: < 100 mVpp
-Operating temperature: –10 °C to +40 °C
-Protection functions: Overcurrent, overvoltage, short circuit
-Certifications: TÜV/GS, EN62368-1; ETL UL 62368-1
-Dimensions: 56 × 30 × 73 mm, 93 g
-Cable: 1.5 m USB-C, UL2725 20 AWG
