HNP140EU-3C1A

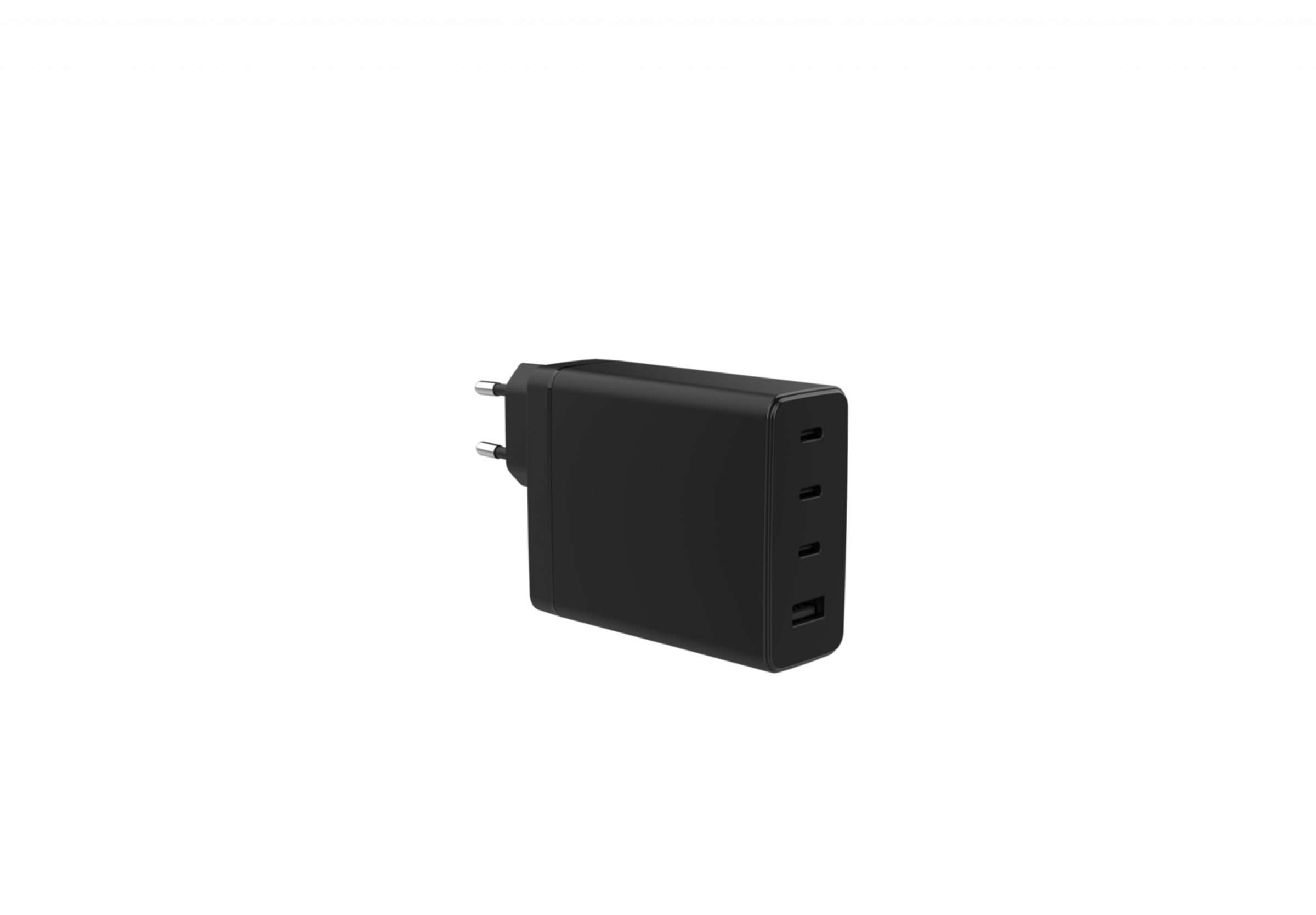

HN-Power Wall Mount Power Supply 140W 5V 5A USB-A

HNP140EU-3C1A
NEW
Manufacturer Part No.
HNP140EU-3C1A
Schukat Part No.
HNP140EU-3C1A
Manufacturer
HN-Power
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

10 Pcs. in stock

Planned delivery time
Ø 11 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 20 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Package/Case
Wall Mount Power Supply
Output Power
140 W
Output voltage
5 V
Output current
5.000 A
Efficiency
86.54 %
Connection type, output
USB-A
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • HN-Power
Series
  • HNP140EU
Product group
  • M5284
Application
  • ITE
  • Industry
Package/Case
  • Wall Mount Power Supply
Dimension: Length
  • 68.15 mm
Dimension: Width
  • 31.65 mm
Dimension: Height
  • 121.3 mm
Weight
  • 346 g
Manufacturer's warranty (years)
  • 1
Product description
  • The HNP140EU-3C+1A combines high performance, state-of-the-art fast-charging technologies and excellent energy efficiency in an ultra-compact form factor. With a total output of 140 watts and three USB-C ports plus one USB-A port, this plug-in switching adaptor delivers outstanding flexibility for nearly any modern device or industrial system.With USB Power Delivery 3.0, Quick Charge 3.0 and PPS support, the adapter ensures ultra-fast, safe and reliable charging – even for high-power devices such as notebooks, tablets or the latest flagship smartphones.It meets leading global energy and safety standards, including EU CoC V5 Tier 2, EnergyStar DOE VI, CE LVD EN62368-1 and modern EMC regulations. Thanks to very low standby power consumption, double insulation and comprehensive protection circuits (overcurrent, short-circuit and overvoltage protection), the HNP140EU-3C+1A delivers professional-grade reliability for industrial, telecom and mobile applications.
Features
  • USB-C PD
Application note
  • USB-C Power Delivery feature with output voltages of 5V, 9V, 12V, 15V, 20V, or 28V.

Operating conditions

Operating Temperature Min.
  • -10 °C
Operating Temperature Max.
  • 25 °C
Storage Temperature Min.
  • -20 °C
Storage Temperature Max.
  • 70 °C

Input

Mains frequency min.
  • 50 Hz
Mains frequency max.
  • 60 Hz
Input voltage min. AC
  • 100 V
Input voltage max. AC
  • 240 V
Input current
  • 2 A
Efficiency
  • 86.54 %
Efficiency (at 10% load)
  • 70.72 %
Average efficiency
  • 86.54 %
No load power, less than
  • 0.3 W
Leakage current, max.
  • 0.25 mA
Power factor correction (PFC)
Connection type, input
  • Euro Plug

Output

Number of outputs
  • 1
Output Power
  • 140 W
Output voltage
  • 5 V
Selectable output voltage
Ripple & Noise
  • 200 mVp-p
Output current
  • 5.000 A
Overload protection
Type of overload protection
  • Hiccup
Short-circuit protection
Overvoltage protection
Overtemperature protection
Connection type, output
  • USB-A

Safety/Certifications

Protection class
  • II
Isolation voltage I/P-O/P
  • 3,000 V
Energy level
  • (EU) 2019/1782 + Level VI
Approvals
  • CE
  • EN
Standards (EMC)
  • EN 55032
Standards (safety)
  • EN 62368-1
