HNP12-USBL6

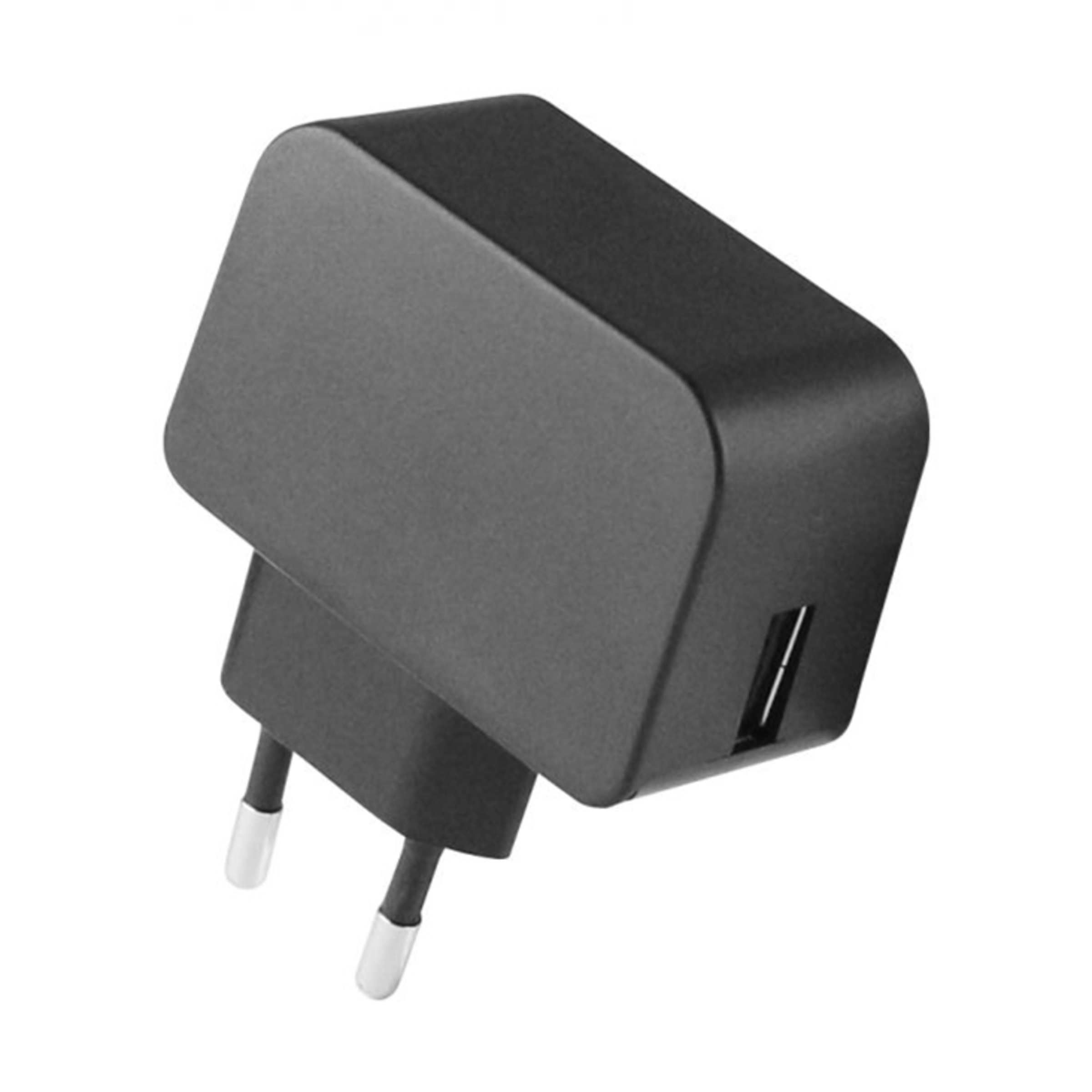

HN-Power Wall Mount Power Supply 12W 5V 2,4A USB-A

HNP12-USBL6HNP12-USBL6
Manufacturer Part No.
HNP12-USBL6
Schukat Part No.
HNP12-USBL6
Manufacturer
HN-Power
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

137 Pcs. in stock

Planned delivery time
Ø 19 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 200 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Package/Case
Wall Mount Power Supply
Output Power
12 W
Output voltage
5 V
Output current
2.400 A
Connection type, output
USB-A
RoHS-Conform

Specifications

Close all

General

Manufacturer
  • HN-Power
Series
  • HNP12
Product group
  • M5284
Application
  • ITE
  • Industry
Package/Case
  • Wall Mount Power Supply
Dimension: Length
  • 56 mm
Dimension: Width
  • 27 mm
Dimension: Height
  • 73 mm
Weight
  • 125 g
Label
  • TÜV
Manufacturer's warranty (years)
  • 1
Product description
  • The HNP12-USBL6 USB plug-in power supply is designed as a plug-in switching power supply and delivers an output power of up to 12 watts. Its compact, low-profile design and double insulation (Protection Class II) ensure safe and reliable operation, even in continuous-use applications. Comprehensive protection functions, such as overload, short-circuit and overvoltage protection with automatic restart, ensure a high level of operational safety. Thanks to its compliance with the EU CoC V5 Tier 2 and EnergyStar DOE VI guidelines, the power supply achieves a very low no-load consumption of less than 0.075 W, thereby meeting current requirements for energy-efficient power supplies. Typical applications include single-board computers, network and telecommunications technology, wireless communication systems, mobile devices, tablets and smartphones, as well as peripheral devices.

Operating conditions

Operating Temperature Min.
  • -10 °C
Operating Temperature Max.
  • 40 °C
Storage Temperature Min.
  • -20 °C
Storage Temperature Max.
  • 70 °C

Input

Mains frequency min.
  • 47 Hz
Mains frequency max.
  • 63 Hz
Input voltage min. AC
  • 90 V
Input voltage max. AC
  • 264 V
Input current
  • 0.45 A
Efficiency (at 10% load)
  • 78.92 %
Average efficiency
  • 80.64 %
No load power, less than
  • 0.06 W
Leakage current, max.
  • 0.25 mA
Inrush current, max.
  • 30 A
Power factor correction (PFC)
Connection type, input
  • Euro Plug

Output

Number of outputs
  • 1
Output Power
  • 12 W
Output voltage
  • 5 V
Selectable output voltage
Ripple & Noise
  • 100 mVp-p
Output current
  • 2.400 A
Overload protection
Short-circuit protection
Overvoltage protection
Overtemperature protection
Connection type, output
  • USB-A

Safety/Certifications

Protection class
  • II
Isolation voltage I/P-O/P
  • 3,000 V
Energy level
  • (EU) 2019/1782 + Level VI
Approvals
  • CE
  • EN
Standards (EMC)
  • EN 55032
Standards (safety)
  • EN 60950-1
