HNP100EU-2C1A

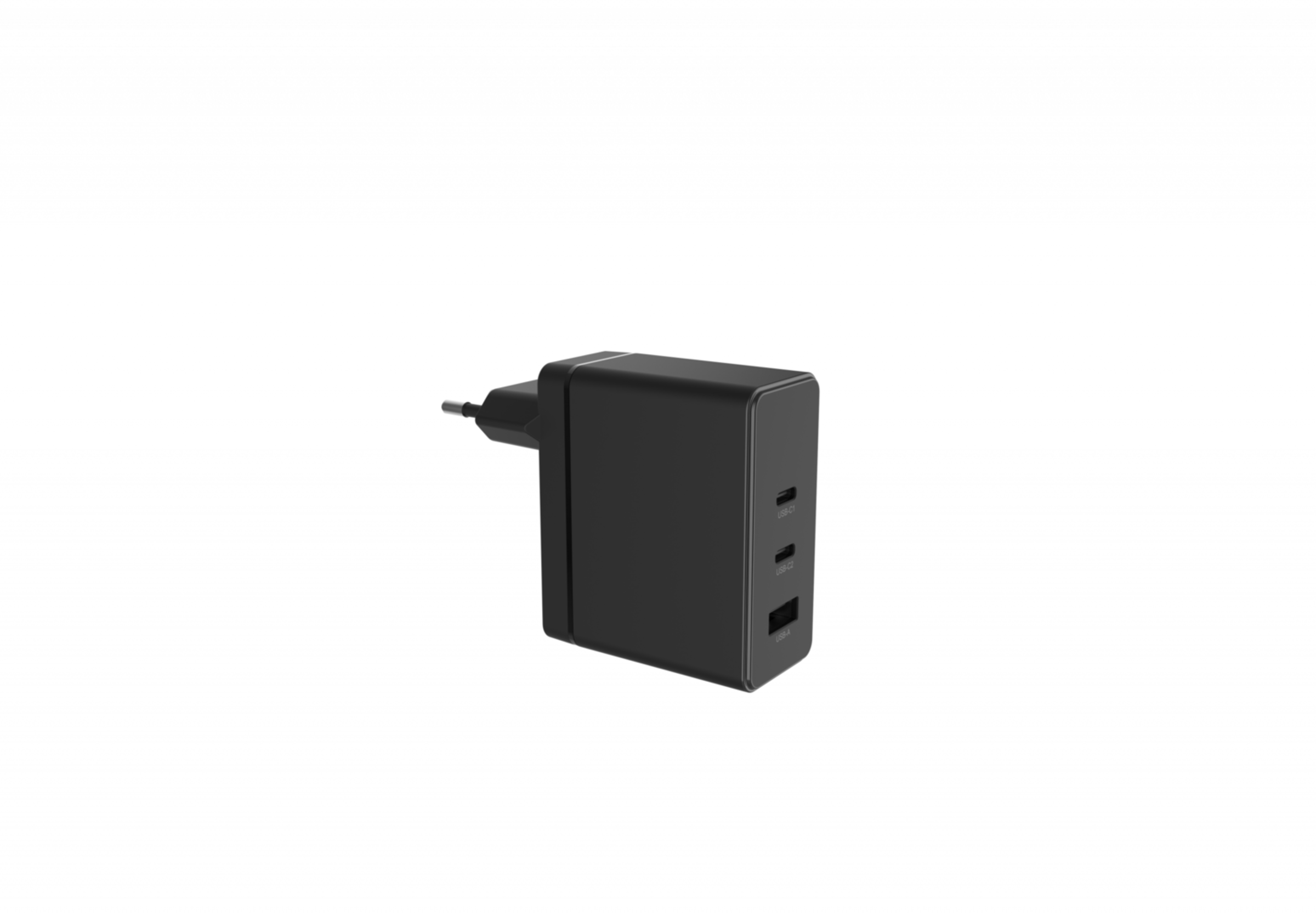

HN-Power Wall Mount Power Supply 100W 5V 4,5A 2xUSB-C USB-A

HNP100EU-2C1A
NEW
Manufacturer Part No.
HNP100EU-2C1A
Schukat Part No.
HNP100EU-2C1A
Manufacturer
HN-Power
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

10 Pcs. in stock

Planned delivery time
Ø 11 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 20 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Package/Case
Wall Mount Power Supply
Output Power
100 W
Output voltage
5 V
Output current
4.500 A
Connection type, output
2xUSB-C
USB-A
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • HN-Power
Series
  • HNP100EU
Product group
  • M5284
Application
  • ITE
  • Industry
Package/Case
  • Wall Mount Power Supply
Dimension: Length
  • 69.9 mm
Dimension: Width
  • 31.15 mm
Dimension: Height
  • 77.6 mm
Weight
  • 246 g
Manufacturer's warranty (years)
  • 1
Product description
  • The HNP100EU-2C+1A delivers powerful 100-watt output in an ultra-compact and durable plug-in adaptor. Offering two USB-C ports and one USB-A port, it supports a wide range of consumer, IT and industrial devices.With USB Power Delivery 3.0 and Quick Charge 3.0, the adapter ensures fast, safe and reliable charging for smartphones, tablets, portable equipment, single-board computers, networking devices and more. Intelligent power distribution supports a variety of output combinations up to a total of 100 watts.Complying with strict efficiency and safety standards such as EU CoC V5 Tier 2, EnergyStar DOE VI, CE LVD EN62368-1, and modern EMC regulations, the HNP100EU-2C+1A guarantees professional reliability. Comprehensive protection features such as overcurrent, overvoltage and short-circuit protection and very low standby consumption make it ideal for demanding environments.
Features
  • USB-C PD
Application note
  • USB-C-Power-Delivery-Funktion mit Ausgangsspannungen von 5 V, 9 V, 12 V, 15 V oder 20 V.

Operating conditions

Operating Temperature Min.
  • -10 °C
Operating Temperature Max.
  • 25 °C
Storage Temperature Min.
  • -20 °C
Storage Temperature Max.
  • 70 °C

Input

Mains frequency min.
  • 50 Hz
Mains frequency max.
  • 60 Hz
Input voltage min. AC
  • 100 V
Input voltage max. AC
  • 240 V
Input current
  • 1.5 A
Efficiency (at 10% load)
  • 90.39 %
Average efficiency
  • 80.8 %
No load power, less than
  • 0.3 W
Leakage current, max.
  • 0.25 mA
Inrush current, max.
  • 13.25 A
Power factor correction (PFC)
Connection type, input
  • Euro Plug

Output

Number of outputs
  • 1
Output Power
  • 100 W
Output voltage
  • 5 V
Selectable output voltage
Ripple & Noise
  • 200 mVp-p
Output current
  • 4.500 A
Overload protection
Type of overload protection
  • Hiccup
  • Unknown
Short-circuit protection
Overvoltage protection
Overtemperature protection
Connection type, output
  • 2xUSB-C
  • USB-A

Safety/Certifications

Protection class
  • II
Isolation voltage I/P-O/P
  • 3,000 V
Energy level
  • (EU) 2019/1782 + Level VI
Approvals
  • CE
  • EN
Standards (EMC)
  • EN 55032
Standards (safety)
  • EN 62368-1
