HNP07-050V2

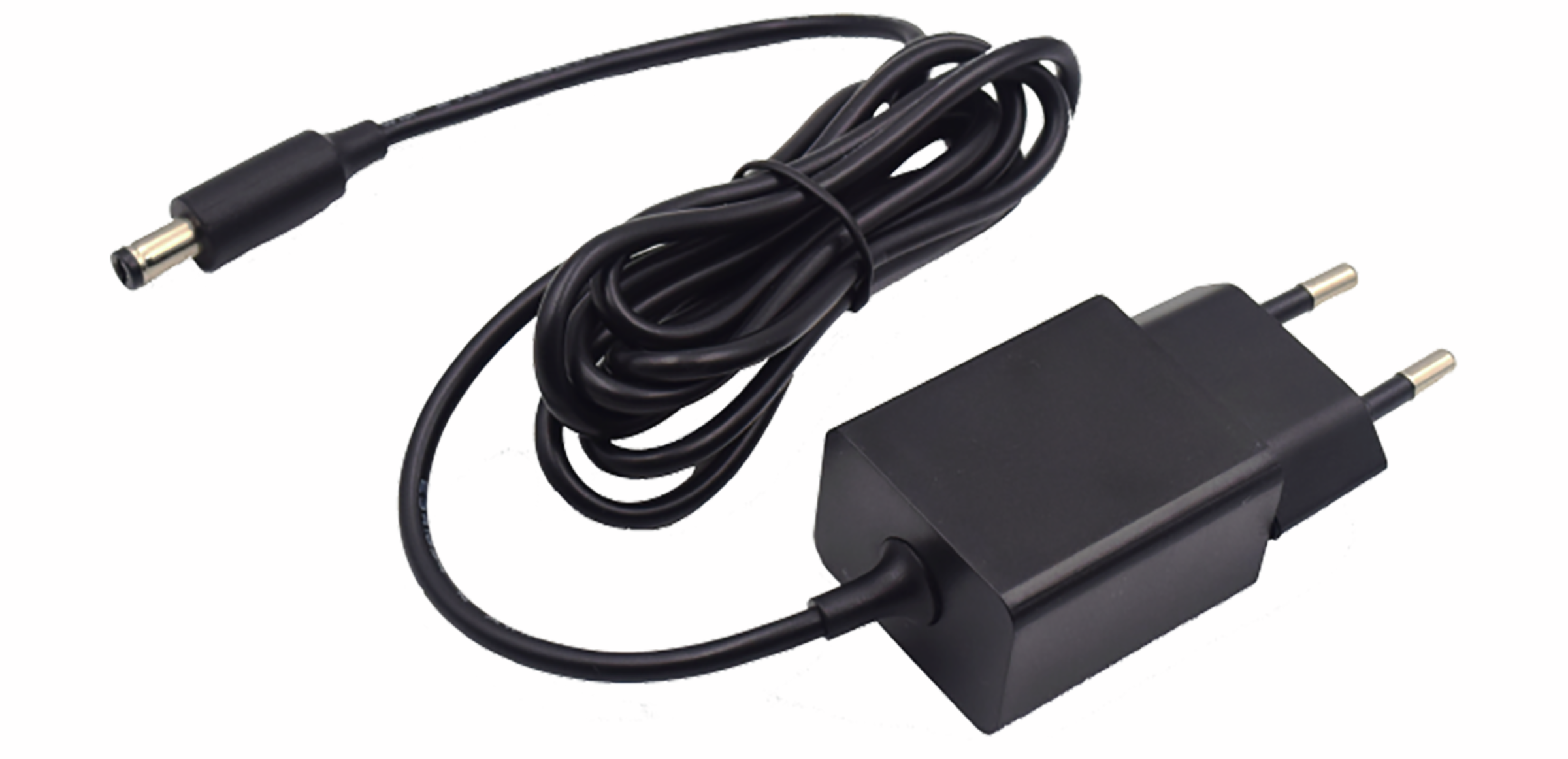

HN-Power Wall Mount Power Supply 7,5W 5V 1,5A 5.5*2.1mm barrel connector

HNP07-050V2HNP07-050V2
Manufacturer Part No.
HNP07-050V2
Schukat Part No.
HNP07-050V2
Manufacturer
HN-Power
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

5 Pcs. in stock

Planned delivery time
Ø 19 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 200 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Package/Case
Wall Mount Power Supply
Output Power
7.5 W
Output voltage
5 V
Output current
1.500 A
Connection type, output
5.5*2.1mm barrel connector
RoHS-Conform

Specifications

Close all

General

Manufacturer
  • HN-Power
Series
  • HNP07-V2
Product group
  • M5255
Application
  • ITE
  • Industry
Package/Case
  • Wall Mount Power Supply
Dimension: Length
  • 76.4 mm
Dimension: Width
  • 33.7 mm
Dimension: Height
  • 23 mm
Weight
  • 60 g
Manufacturer's warranty (years)
  • 1
Product description
  • The HNP07-V2 series offers compact, energy-efficient 7.5-watt plug-in power supplies for demanding applications in industry, telecommunications and embedded systems. With its double insulation, a minimum standby power consumption of <0.075 W and compliance with EU CoC V5 Tier 2 / DOE Level VI, it is ideal for devices that require the highest levels of efficiency and safety. Thanks to its particularly slimline housing (76.4 × 33.7 × 23 mm), the series is perfectly suited to applications with limited installation space. The integrated protection concept, featuring overload, short-circuit and overvoltage protection, ensures maximum operational safety. -Single-board computers (Raspberry Pi, Odroid, etc.) -Wi-Fi/IoT devices, radio modules -Network components -Peripheral devices -Mobile & portable equipment -Telecommunications -Small embedded systems

Operating conditions

Operating Temperature Min.
  • -10 °C
Operating Temperature Max.
  • 40 °C
Storage Temperature Min.
  • -20 °C
Storage Temperature Max.
  • 70 °C

Input

Mains frequency min.
  • 47 Hz
Mains frequency max.
  • 63 Hz
Input voltage min. AC
  • 90 V
Input voltage max. AC
  • 264 V
Input current
  • 0.35 A
Efficiency (at 10% load)
  • 72.5 %
Average efficiency
  • 77.21 %
No load power, less than
  • 0.06 W
Leakage current, max.
  • 0.25 mA
Inrush current, max.
  • 30 A
Power factor correction (PFC)
Connection type, input
  • Euro Plug

Output

Number of outputs
  • 1
Output Power
  • 7.5 W
Output voltage
  • 5 V
Selectable output voltage
Ripple & Noise
  • 200 mVp-p
Output current
  • 1.500 A
Overload protection
Short-circuit protection
Overvoltage protection
Overtemperature protection
Connection type, output
  • 5.5*2.1mm barrel connector
Cable length, output
  • 150 cm

Safety/Certifications

Protection class
  • II
Isolation voltage I/P-O/P
  • 3,000 V
Energy level
  • (EU) 2019/1782 + Level VI
Approvals
  • CE
  • EN
Standards (EMC)
  • EN 55032
Standards (safety)
  • EN 62368-1
