HNP06-050L6

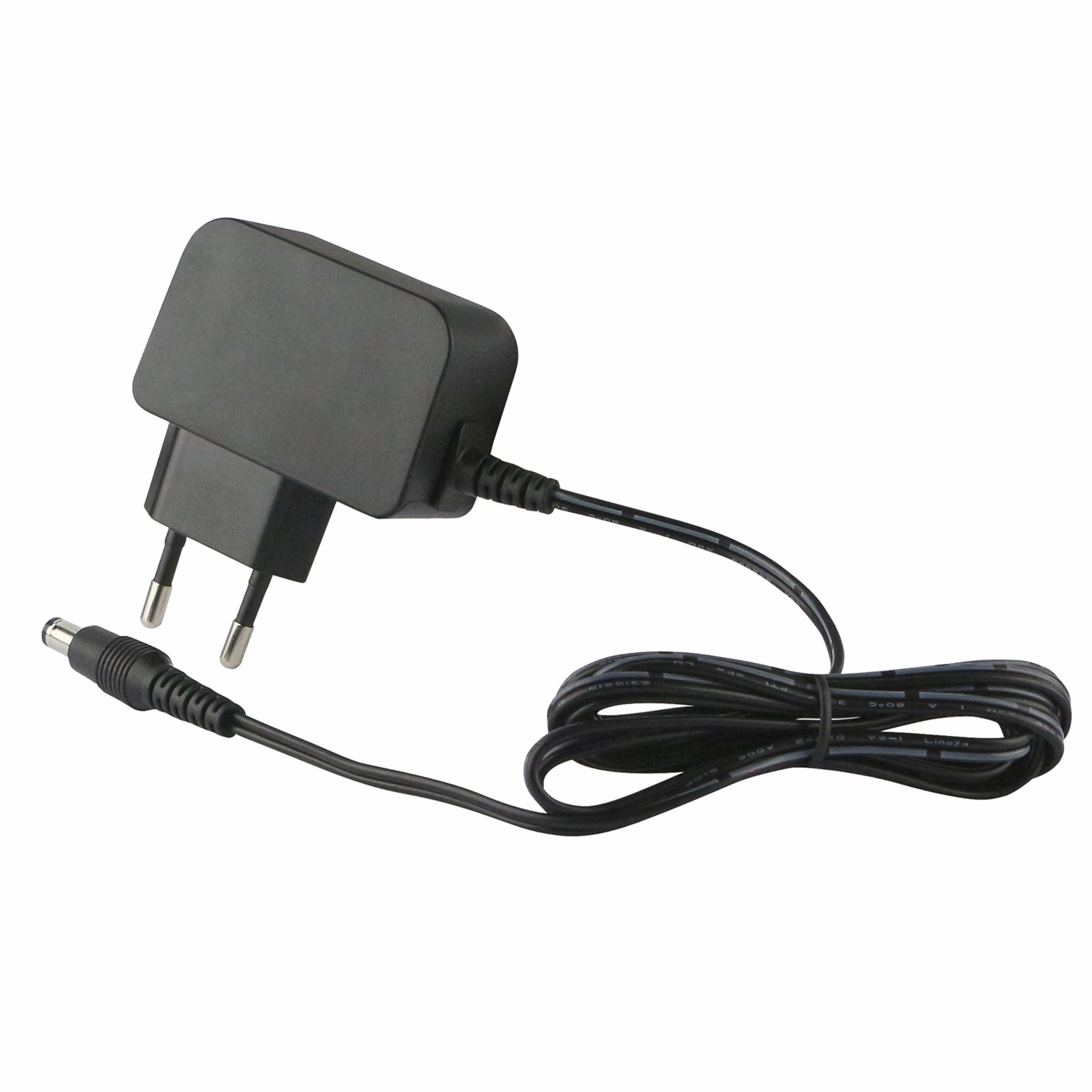

HN-Power Wall Mount Power Supply 8,0W 5V 1,500A 5.5*2.1mm barrel connector

HNP06-050L6HNP06-050L6HNP06-050L6
TOP
Manufacturer Part No.
HNP06-050L6
Schukat Part No.
HNP06-050L6
Manufacturer
HN-Power
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

143 Pcs. in stock

Next Stock Receipt
Week 40/2026
200 Pcs.
Planned delivery time
Ø 19 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 120 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Package/Case
Wall Mount Power Supply
Output Power
8 W
Output voltage
5 V
Output current
1.500 A
Connection type, output
5.5*2.1mm barrel connector
RoHS-Conform

Specifications

Close all

General

Manufacturer
  • HN-Power
Series
  • HNP06-L6
Product group
  • M5252
Application
  • ITE
  • Industry
Package/Case
  • Wall Mount Power Supply

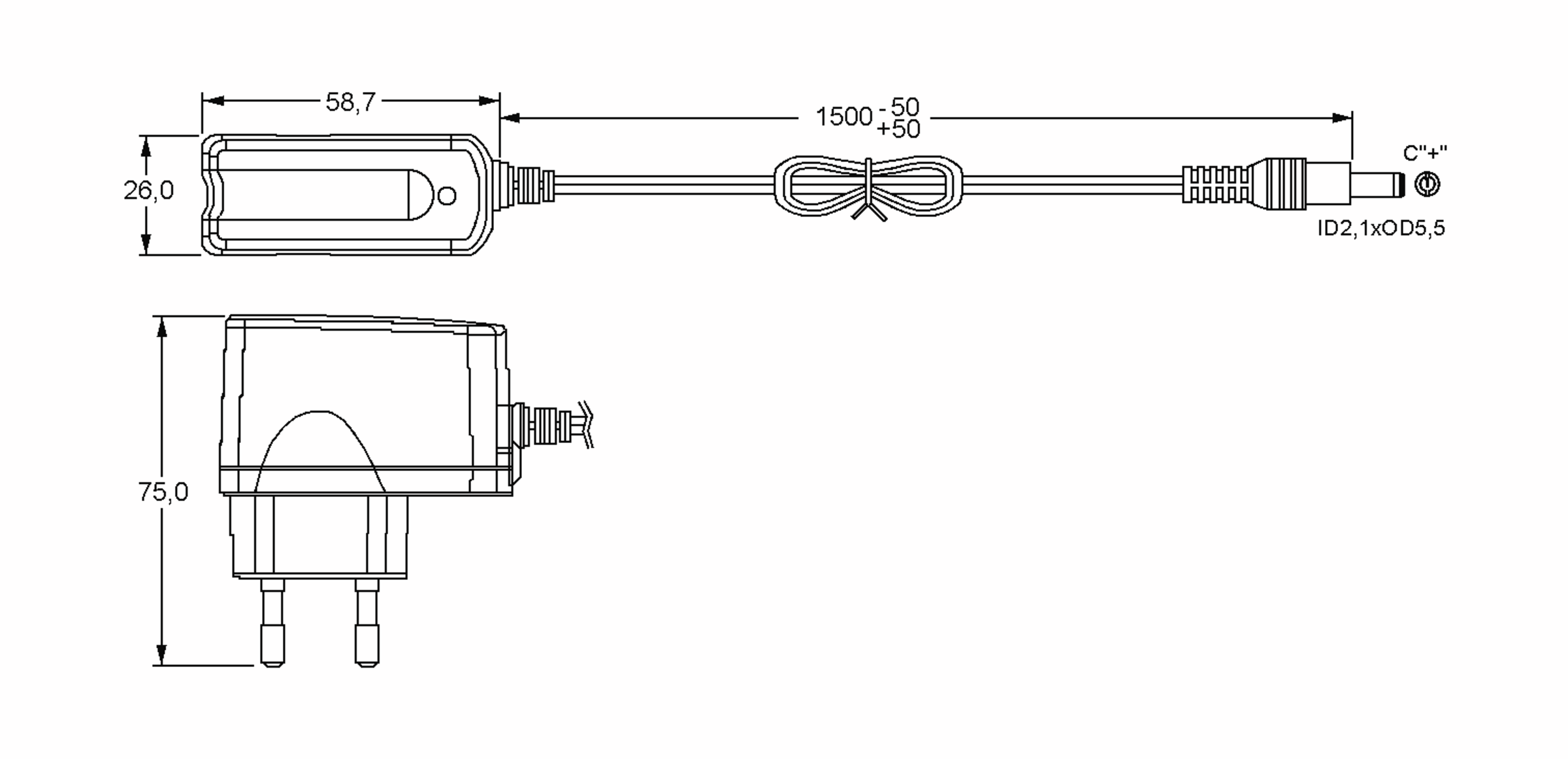

Dimension: Length
  • 56 mm
Dimension: Width
  • 27 mm
Dimension: Height
  • 73 mm
Weight
  • 70 g
Label
  • TÜV
Manufacturer's warranty (years)
  • 1
Product description
  • The HNP06-L6 series is a compact, reliable and energy-efficient 6 W plug-in power supply, designed for modern applications in IT, communications and consumer electronics. Thanks to double insulation, very low standby power consumption and compliance with current energy efficiency standards such as EU CoC V5 Tier 2 and EnergyStar / DoE Level VI, this power supply is ideal for devices operating continuously or under low load. The series offers various output voltages (5 V, 9 V, 12 V) and is equipped with overload, short-circuit and overvoltage protection – ensuring maximum operational safety. -Single-board computers (e.g. Raspberry Pi, embedded systems) -Wireless communication devices -Network technology / IoT -Peripheral devices -Mobile equipment & portable devices -Tablets, smartphones -Telecommunications applications

Operating conditions

Operating Temperature Min.
  • -10 °C
Operating Temperature Max.
  • 40 °C
Storage Temperature Min.
  • -20 °C
Storage Temperature Max.
  • 70 °C

Input

Mains frequency min.
  • 47 Hz
Mains frequency max.
  • 63 Hz
Input voltage min. AC
  • 90 V
Input voltage max. AC
  • 264 V
Input current
  • 0.45 A
Efficiency (at 10% load)
  • 78.85 %
Average efficiency
  • 77.46 %
No load power, less than
  • 0.075 W
Leakage current, max.
  • 0.25 mA
Inrush current, max.
  • 30 A
Power factor correction (PFC)
Connection type, input
  • Euro Plug

Output

Number of outputs
  • 1
Output Power
  • 8 W
Output voltage
  • 5 V
Selectable output voltage
Ripple & Noise
  • 100 mVp-p
Output current
  • 1.500 A
Overload protection
Short-circuit protection
Overvoltage protection
Overtemperature protection
Connection type, output
  • 5.5*2.1mm barrel connector
Cable length, output
  • 150 cm

Safety/Certifications

Protection class
  • II
Isolation voltage I/P-O/P
  • 3,000 V
Energy level
  • (EU) 2019/1782 + Level VI
Approvals
  • CE
  • EN
Standards (EMC)
  • EN 55014
Standards (safety)
  • EN 60950-1

Other Products

All Products of the Series
Loading...
HNP06-090L6
HN-Power
Wall Mount Power Supply 8,0W 9V 0,840A 5.5*2.1mm barrel connector
from 4,25 €
TOP
Loading...
HNP06-120L6
HN-Power
Wall Mount Power Supply 12,0W 12V 0,630A 5.5*2.1mm barrel connector
from 4,24 €
TOP
Loading...

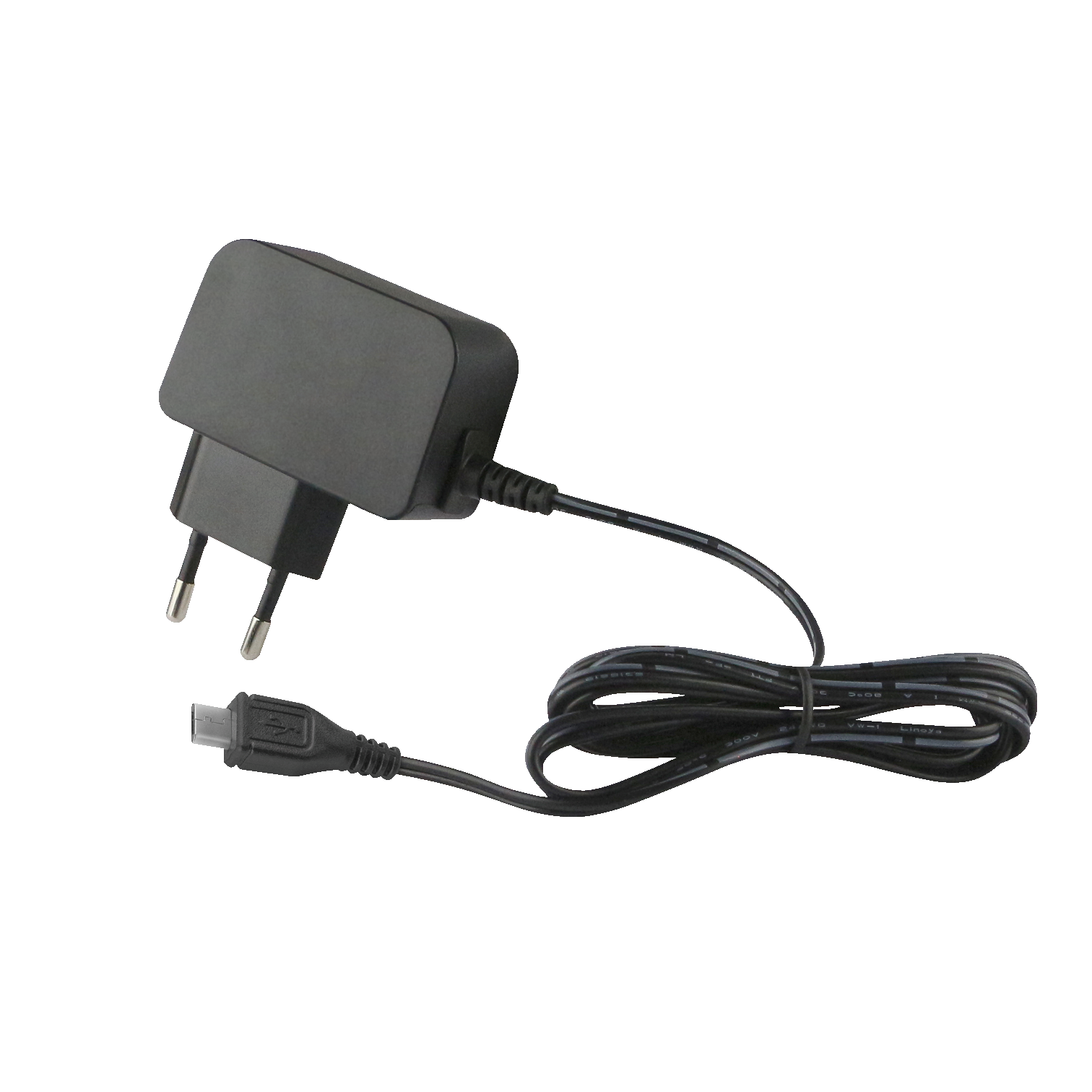

HNP06-MICROUSBL6
