HIM12-4812D-DIL24

Manufacturer Part No.
HIM12-4812D-DIL24
Schukat Part No.
HIM12-4812D-DIL24
Manufacturer
HN Electronic
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

0 Pcs. in stock

Back Order
1 Pcs.
Planned delivery time
Ø 47 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Lieferbar (ab Lager)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Output Power
12 W
Output voltage
12 V
Output voltage, channel 2
-12 V
Output current
0.5 A
Output current, channel 2
-0.5 A
Isolation voltage I/P-O/P
1600 V
RoHS-Conform

Specifications

Open all

General

Series
  • HIM12-DIL24

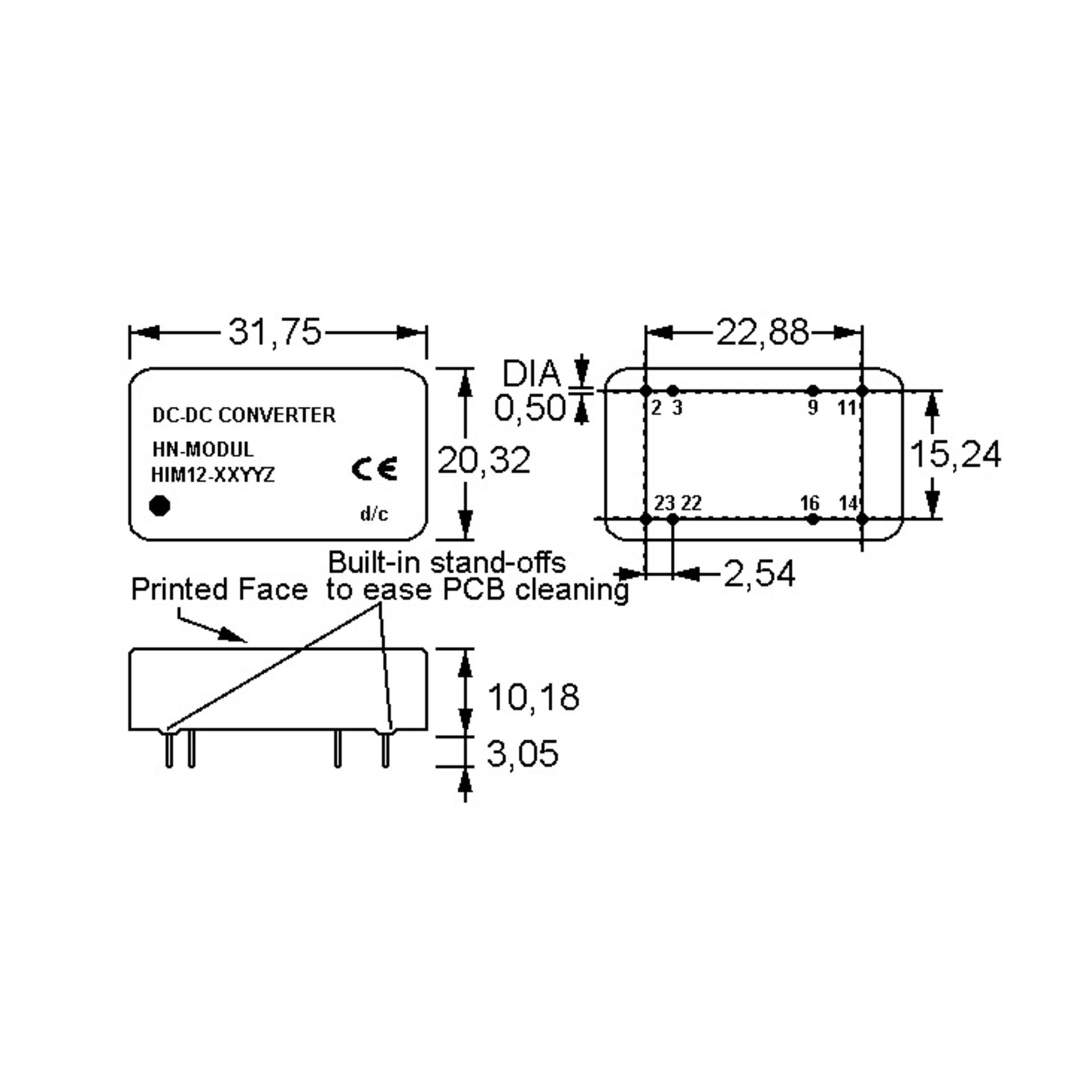

Dimension: Length
  • 31.8 mm
Dimension: Width
  • 20.3 mm
Dimension: Height
  • 10.2 mm
Weight
  • 18 g
Manufacturer's warranty (years)
  • 1

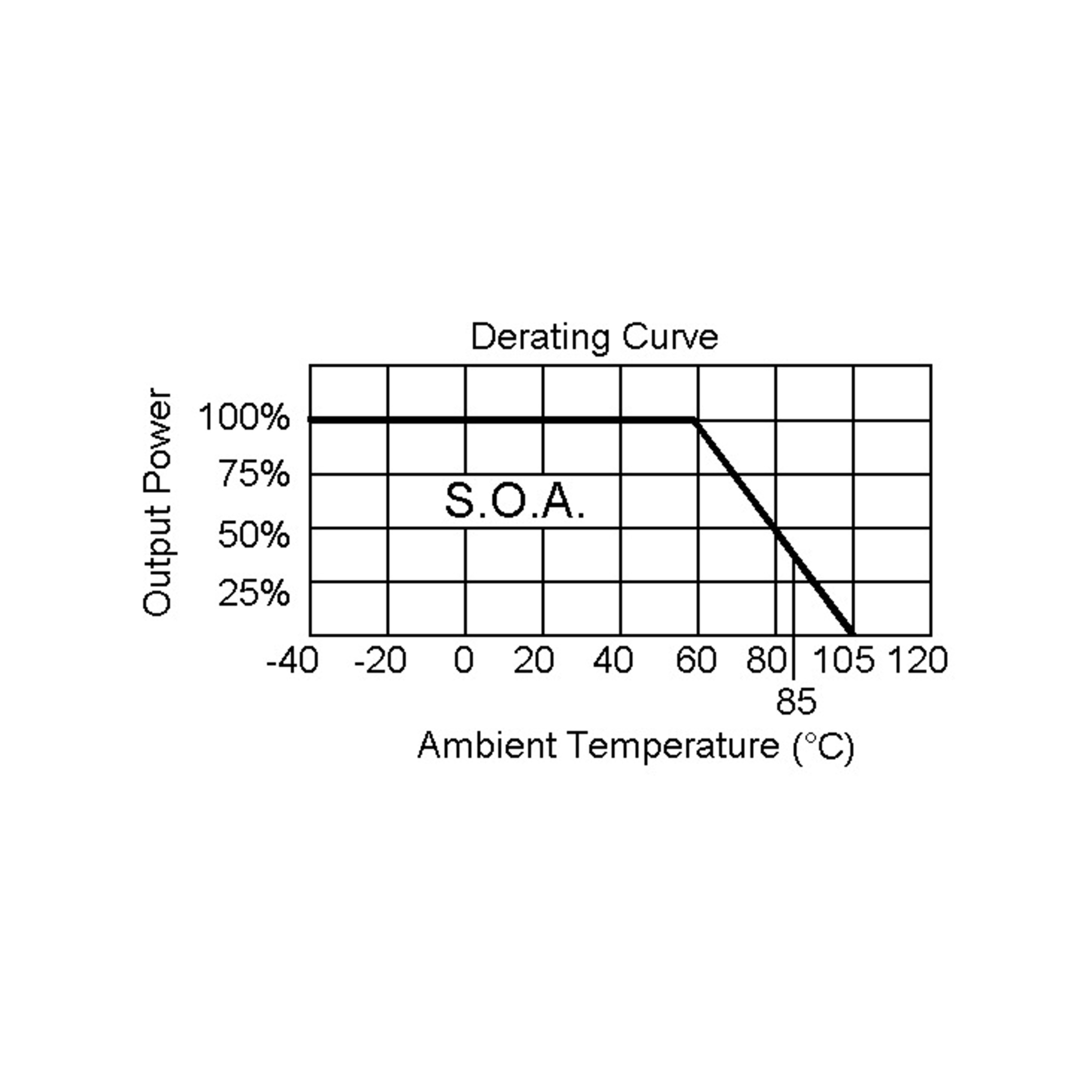

Operating conditions

MTBF
  • 1000000 h
Operating Temperature Min.
  • -40 °C
Operating Temperature Max.
  • 85 °C
Storage Temperature Min.
  • -40 °C
Storage Temperature Max.
  • 125 °C

Input

Input voltage min. DC
  • 18 V
Input voltage max. DC
  • 75 V
Input voltage range
  • 4:1
Efficiency
  • 90 %

Output

Number of outputs
  • 2
Output Power
  • 12 W
Output voltage
  • 12 V
Output voltage, channel 2
  • -12 V
Output Voltage Max.
  • 12 V
Output voltage tolerance
  • -1.2 % 1.2 %
Output voltage tolerance, channel 2
  • -1.2 % 1.2 %
Ripple & Noise
  • 85 mVp-p
Ripple & Noise, Channel 2
  • 85 mVp-p
Output current
  • 0.5 A
Output current, channel 2
  • -0.5 A
Overload protection
Short-circuit protection
Overvoltage protection
Capacitive load, max.
  • 200 µF

Safety/Certifications

Isolation voltage I/P-O/P
  • 1600 V
Approvals
  • CE
  • EN
Standards (safety)
  • EN 60950-1
