BIM10-2403S-DIL24
Manufacturer Part No.
BIM10-2403S-DIL24
Schukat Part No.
BIM10-2403S-DIL24
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Item no longer available!
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 24.11.2022
Abgekündigt durch Hersteller ohne Ersatz
Data Sheet
ECAD Model
Prices
Manufacturer bundle Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Output Power
- 10 W
- Output voltage
- 3.3 V
- Output current
- 3.000 A
- Isolation voltage I/P-O/P
- 1,500 V
- RoHS-Conform
Specifications
Open all
Operating conditions
- MTBF
- 1,000,000 h

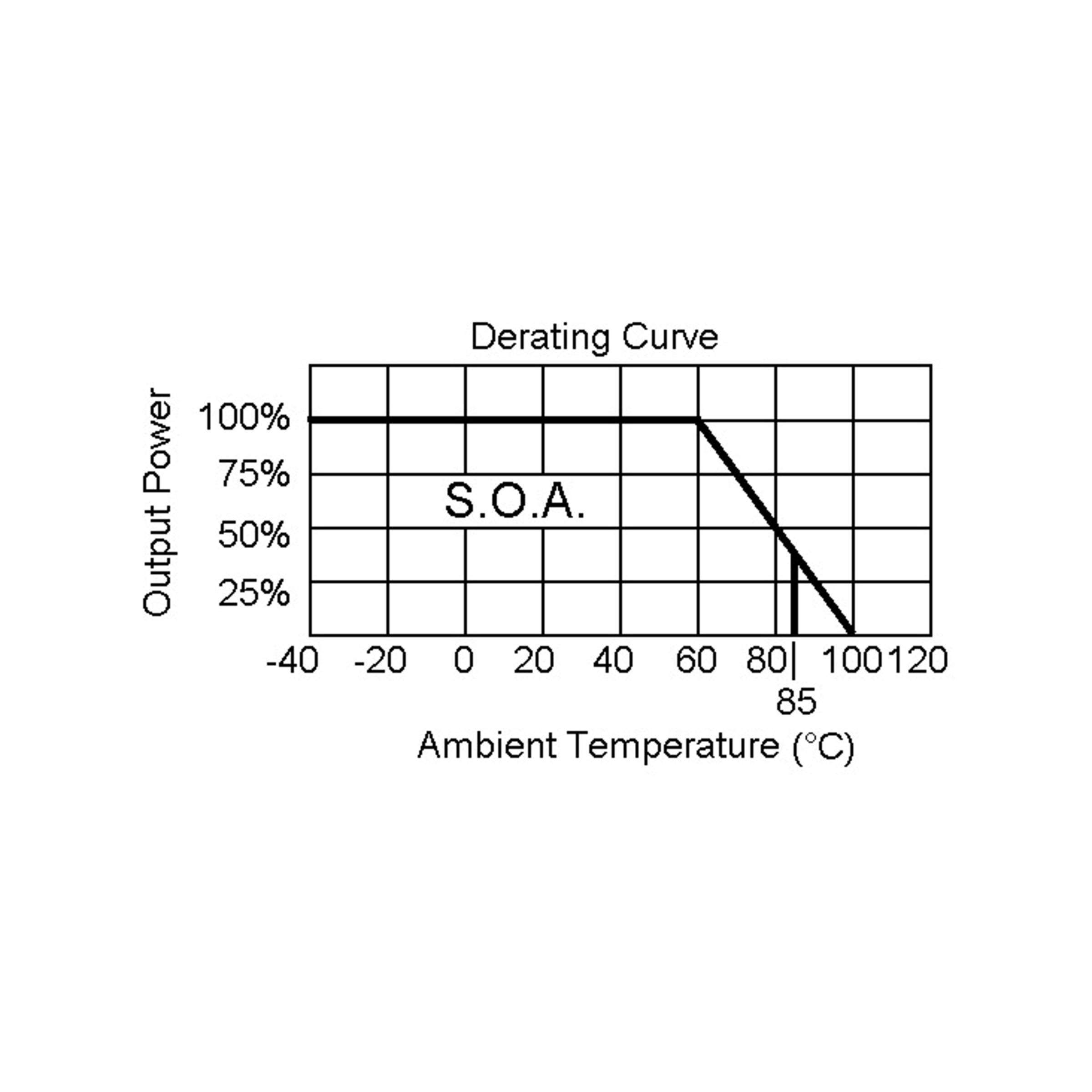

- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
- Storage Temperature Min.
- -40 °C
- Storage Temperature Max.
- 125 °C
Input
- Input voltage min. DC
- 18 V
- Input voltage max. DC
- 36 V
- Input voltage range
- 2:1
- Efficiency
- 0.85 %
Output
- Number of outputs
- 1
- Output Power
- 10 W
- Output voltage
- 3.3 V
- Output voltage tolerance
- -1.001 %
- Ripple & Noise
- 75 mVp-p
- Output current
- 3.000 A
- Overload protection
- Short-circuit protection
- Overvoltage protection
- Capacitive load, max.
- 2,200 µF
Safety/Certifications
- Isolation voltage I/P-O/P
- 1,500 V
- Approvals
- CE
- EN
- Standards (safety)
- EN 60950-1
