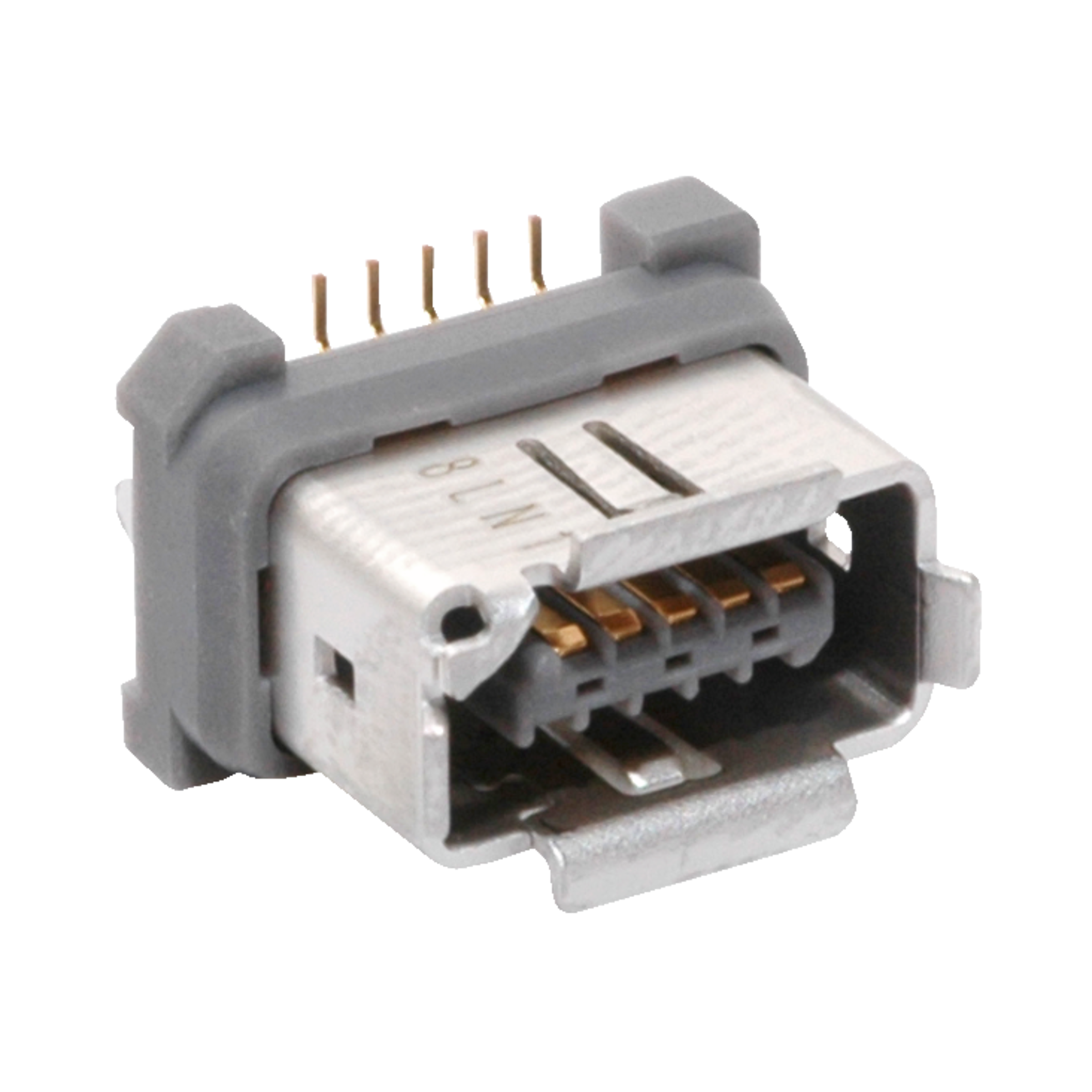

IX80G-B-10P(01)
HIROSE ELECTRIC Plug IX PCB Plug rectangular straight 10 Pole Stainless Steel Solder Cat5e Cat6a 10mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Planned delivery time
Ø 1 Week
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 450 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 450 or multiple of 450)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Contact Type
- Plug
- Type
- Plug
- Connector Contact
- Solder
- Series
- IX
- Housing material
- Stainless Steel
- Housing
- rectangular
- Connector Coating
- Palladium, nickel-plated and gold-plated
- Specifications
- PCB
- Insulating body
- Polymer
- Number of poles
- 10
- Contact Type
- Typ B
- Class of Inflammability
- UL 94 V-0
- Locking
- no
- Alignment
- straight
- Operating Temperature Max.
- 85 °C
- Rated voltage AC
- 60 V AC
- Rated current
- 1.5 A
- Rated voltage DC
- 50 V DC
- Operating Temperature Min.
- -40 °C
- RoHS-Conform
