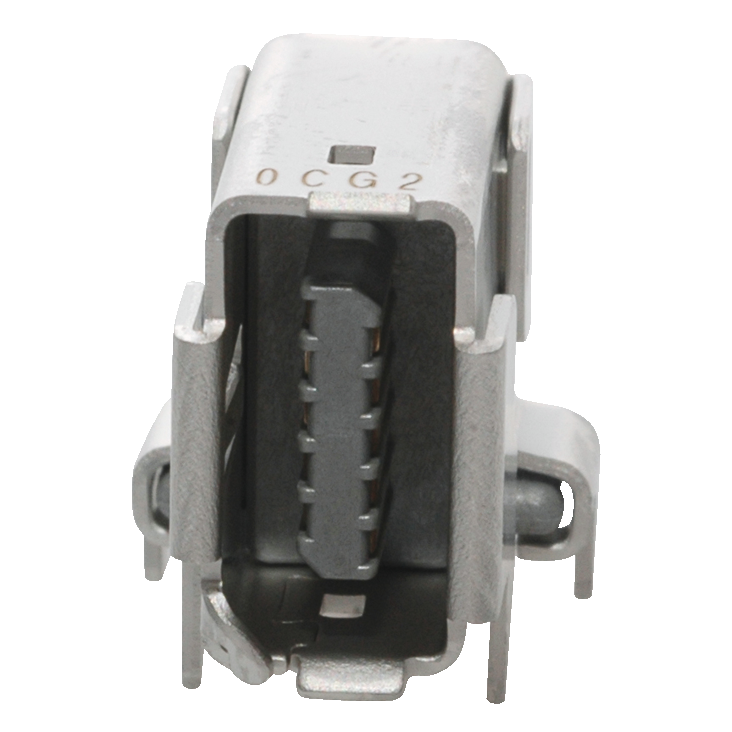

IX61G-A-10P
HIROSE ELECTRIC Plug IX PCB Plug Latching lug rectangular 90° 10 Pole Stainless Steel Solder Cat5e Cat6a 8,8mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Item no longer available!
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 03.09.2024
Discontinued by manufacturer with replacement
Data Sheet
ECAD Model
Prices
Manufacturer bundle 400 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Contact Type
- Plug
- Type
- Plug
- Connector Contact
- Solder
- Series
- IX
- Housing material
- Stainless Steel
- Housing
- rectangular
- Design
- PCB
- Insulating body
- Polymer
- Number of poles
- 10
- Contact Type
- Typ A
- Class of Inflammability
- UL 94 V-0
- Locking
- yes
- Alignment
- 90°
- Locking Type
- Latching lug
- Operating Temperature Max.
- 85 °C
- Rated voltage AC
- 60 V AC
- Rated current
- 1.5 A
- Rated voltage DC
- 50 V DC
- Operating Temperature Min.
- -40 °C
- RoHS-Conform
Specifications
Open all
Dimensions and Weights
- Dimension: Length
- 8.8 mm
- Dimension: Width
- 12.8 mm
- Dimension: Height
- 10 mm
- Height (incl. pins)
- 11.5 mm
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
Technical Features
- Rated current
- 1.5 A
- Rated voltage AC
- 60 V AC
- Rated voltage DC
- 50 V DC
- Performance
- Cat5e
- Cat6a
- Insulation resistance
- 500 x 10^6 MOhm
- Contact resistance
- 30 mOhm
Mechanical Features
- Durability
- 5,000
- Insertion force per contact, min.
- 85 N
- Housing material
- Stainless Steel
- Insulating body
- Polymer
- Contact Surface Input
- vergoldet
Safety/Certifications
- Class of Inflammability
- UL 94 V-0
Documents
IX_Catalog_D144096_en.pdf
PCN_2024-04_EN.pdf
