IX40G-A-10S-CV(7.0)

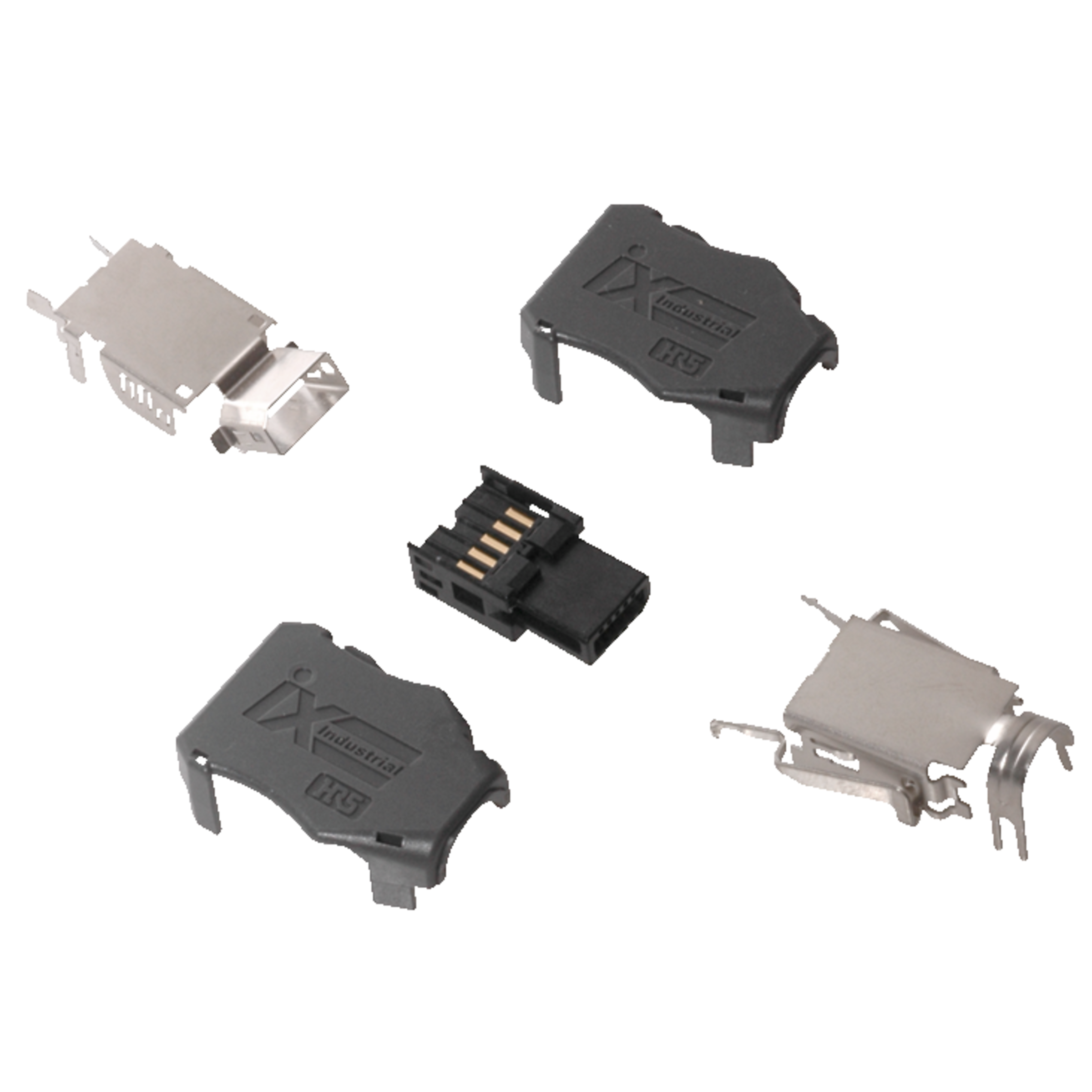

HIROSE ELECTRIC Socket IX Cable Socket rectangular straight 10 Pole Polycarbonat Resin (PA Synthetic Resin) Solder Cat5e Cat6a 22,9mm
Manufacturer Part No.
IX40G-A-10S-CV(7.0)
Schukat Part No.
IX40G-A-10S-CV
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
150 Pcs. in stock
Planned delivery time
Ø 13 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Contact Type
- Socket
- Type
- Socket
- Connector Contact
- Solder
- Series
- IX
- Colour
- gray
- Housing material
- Polycarbonat Resin (PA Synthetic Resin)
- Housing
- rectangular
- Design
- Cable
- Insulating body
- Polymide Resin (PA Synthetic Resin)
- Number of poles
- 10
- Contact Type
- Typ A
- Class of Inflammability
- UL 94 V-0
- Locking
- no
- Alignment
- straight
- Operating Temperature Max.
- 85 °C
- Rated voltage AC
- 60 V AC
- Rated current
- 1.5 A
- Rated voltage DC
- 50 V DC
- Operating Temperature Min.
- -40 °C
- RoHS-Conform
Specifications
Open all

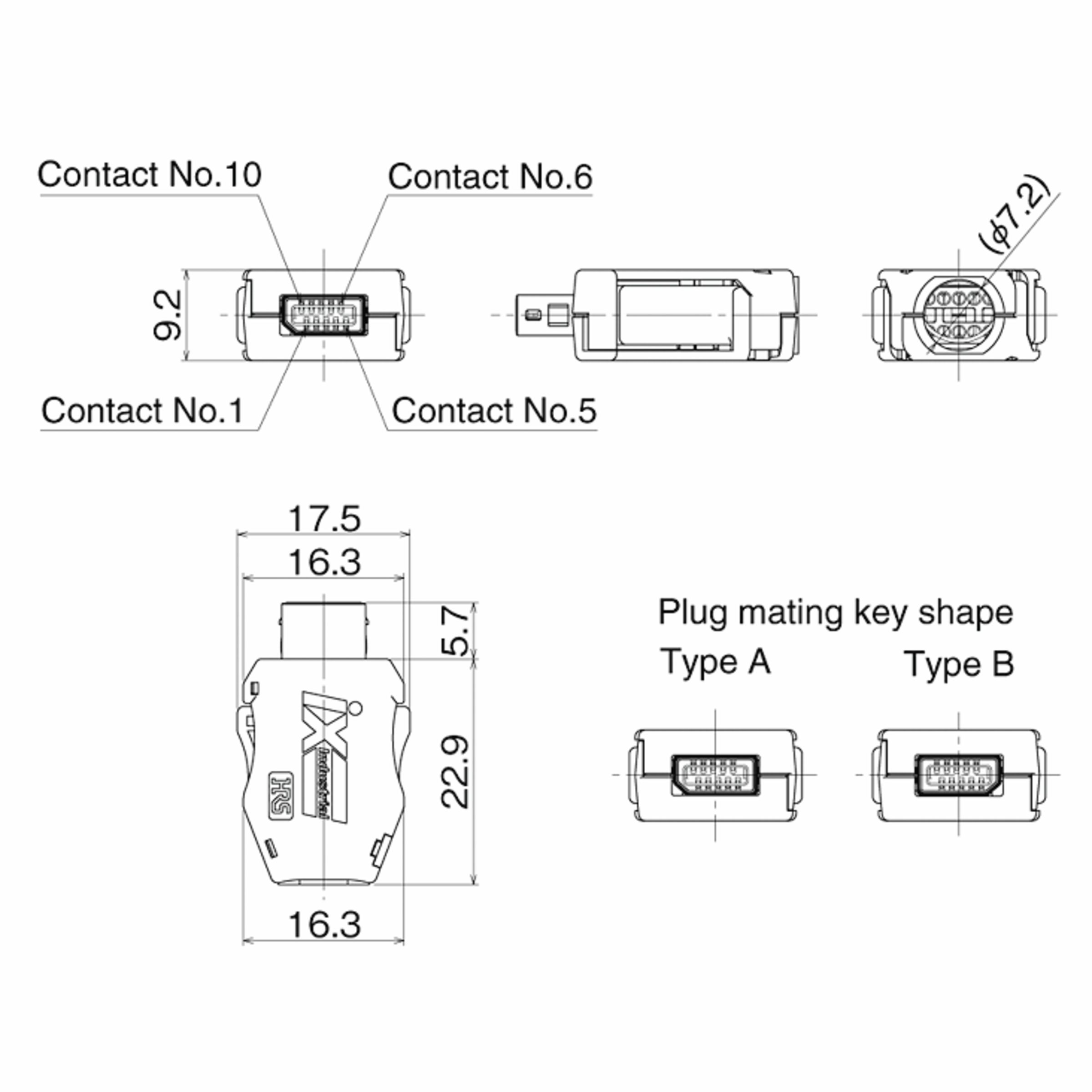

Dimensions and Weights
- Dimension: Length
- 22.9 mm
- Dimension: Width
- 17.5 mm
- Dimension: Height
- 9.2 mm
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
Technical Features
- Rated current
- 1.5 A
- Rated voltage AC
- 60 V AC
- Rated voltage DC
- 50 V DC
- Performance
- Cat5e
- Cat6a
- Insulation resistance
- 500 x 10^6 MOhm
- Contact resistance
- 30 mOhm
Mechanical Features
- Durability
- 5,000
- Insertion force per contact, min.
- 85 N
- Housing material
- Polycarbonat Resin (PA Synthetic Resin)
- Insulating body
- Polymide Resin (PA Synthetic Resin)
- Contact Surface Input
- vergoldet
Safety/Certifications
- Class of Inflammability
- UL 94 V-0
