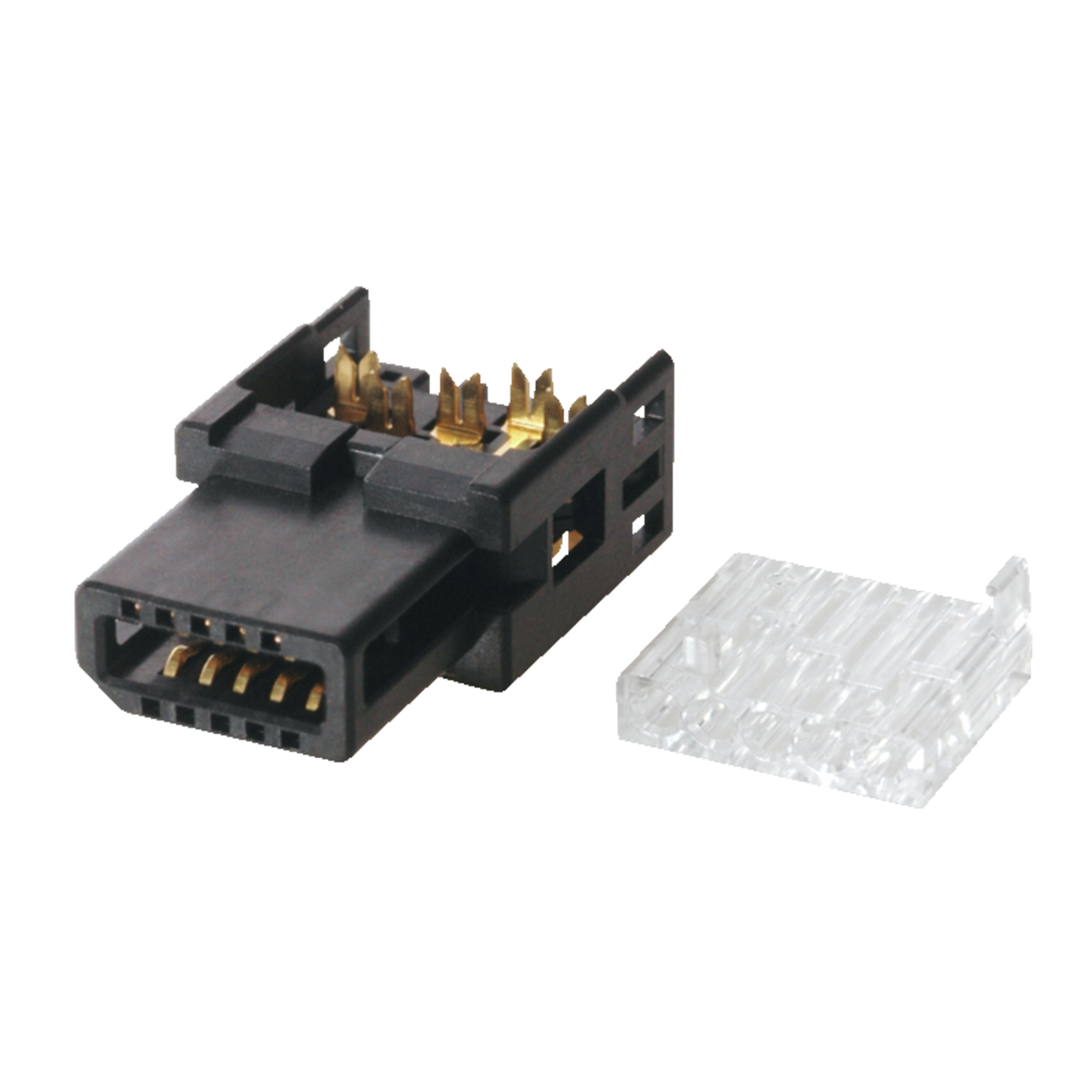

IX30G-A-10S-CV(7.0)
HIROSE ELECTRIC 10pol.
Manufacturer Part No.
IX30G-A-10S-CV(7.0)
Schukat Part No.
IX30G-A-10S-CV
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
300 Pcs. in stock
Planned delivery time
Ø 1 Week
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 300 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Series
- IX
- Colour
- gray
- Number of poles
- 10
- Dimension: Length
- 22.9 mm
- Rated current
- 1.5 A
- Rated voltage AC
- 60 V AC
- Dimension: Width
- 17.5 mm
- Rated voltage DC
- 50 V DC
- Dimension: Height
- 9.2 mm
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
- RoHS-Conform
Specifications
Open all
Dimensions and weights
- Dimension: Length
- 22.9 mm
- Dimension: Width
- 17.5 mm
- Dimension: Height
- 9.2 mm
- Cable diameter, min.
- 0.95 mm
- Cable diameter, max.
- 1.05 mm
- Conductor cross-section (AWG), min.
- 26 AWG
- Conductor cross-section (AWG), max.
- 28 AWG
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
Technical features
- Rated current
- 1.5 A
- Rated voltage AC
- 60 V AC
- Rated voltage DC
- 50 V DC
- Performance
- Cat5e
- Cat6a
- Insulation resistance
- 500 x 10^6 MOhm
- Contact resistance
- 30 mOhm
Mechanical features
- Durability
- 5,000
- Insertion force per contact, min.
- 85 N
- Insulating body
- PA-Kunstharz (UL94V-0)
- Kontaktbeschichtung Eingang
- vergoldet
Safety/Certifications
- Class of Inflammability
- UL 94 V-0
