21011009014

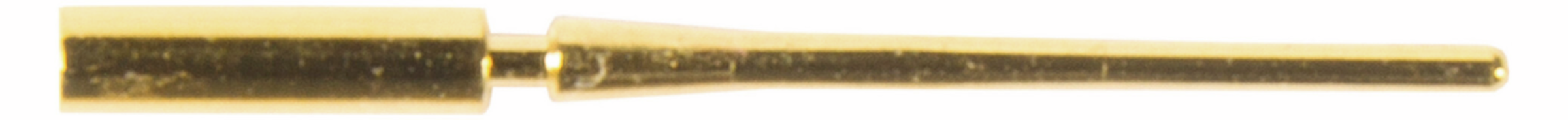

HARTING Crimp contact pin Har-speed Pin Contacts round 1 Pole Nickel, vergoldet Crimp 0,08mm² 0,22mm² 16,9mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
101 Pcs. in stock
Planned delivery time
Ø 14 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Contact Type
- Pin
- Type
- Crimp contact pin
- Connector Contact
- Crimp
- Series
- Har-speed
- Housing
- round
- Design
- Contacts
- Number of poles
- 1
- RoHS-Conform
Specifications
Open all
Dimensions and Weights
- Dimension: Length
- 16.9 mm
- Diameter
- 1.2 mm
- Weight
- 0.095 g
- Conductor cross-section (AWG), min.
- 28 AWG
- Conductor cross-section, min.
- 0.08 mm²
- Conductor cross-section (AWG), max.
- 24 AWG
- Conductor cross-section, max.
- 0.22 mm²
Mechanical Features
- Contact Surface Input
- Nickel, vergoldet
Documents
21011009014_100190556DRW003B.pdf
21011009014_100190556DRW003B.pdf
