09670008476

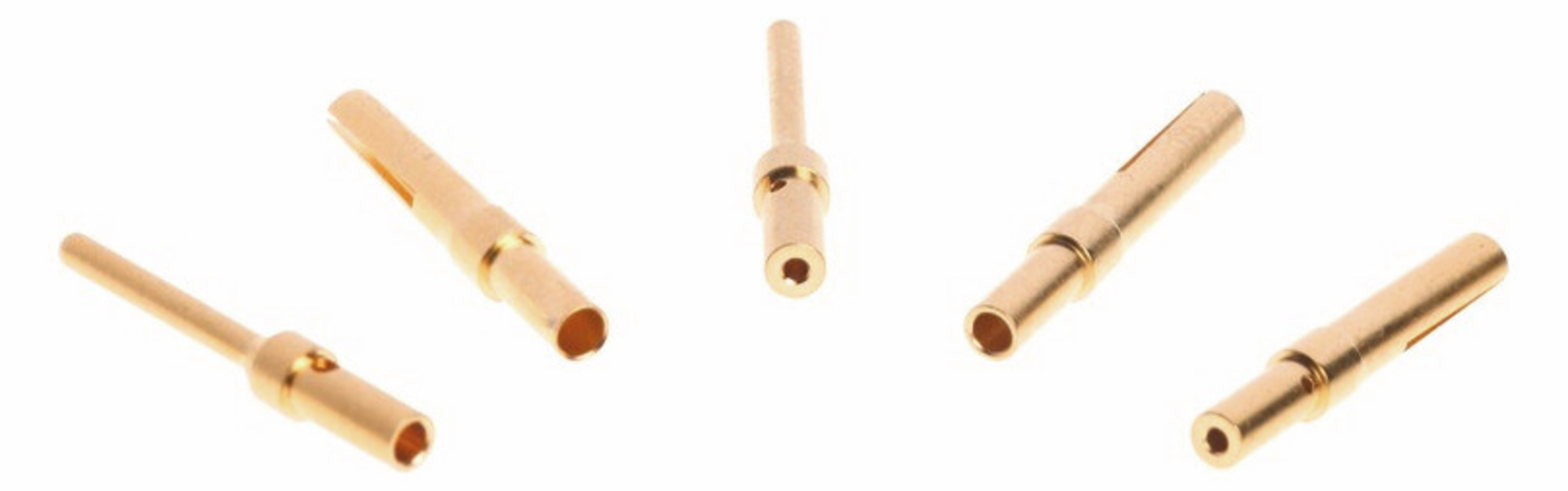

HARTING Crimp contact socket D-Sub Socket Contacts round 1 Pole Edelmetall über Nickel Crimp 0,25mm² 0,52mm² 13,6mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
118 Pcs. in stock
Planned delivery time
Ø 14 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Contact Type
- Socket
- Type
- Crimp contact socket
- Connector Contact
- Crimp
- Series
- D-Sub
- Housing
- round
- Design
- Contacts
- Number of poles
- 1
- RoHS-Conform
Specifications
Open all
Dimensions and Weights
- Dimension: Length
- 13.6 mm
- Diameter
- 2.16 mm
- Weight
- 0.1 g
- Stripping length, max.
- 4.5 mm
- Conductor cross-section (AWG), min.
- 24 AWG
- Conductor cross-section, min.
- 0.25 mm²
- Conductor cross-section (AWG), max.
- 20 AWG
- Conductor cross-section, max.
- 0.52 mm²
Mechanical Features
- Contact Surface Input
- Edelmetall über Nickel
Documents
0967000847X_BL01_EC01656_100189790DRW005D.pdf
0967000847X_BL01_EC01656_100189790DRW005D.pdf
