09330006113

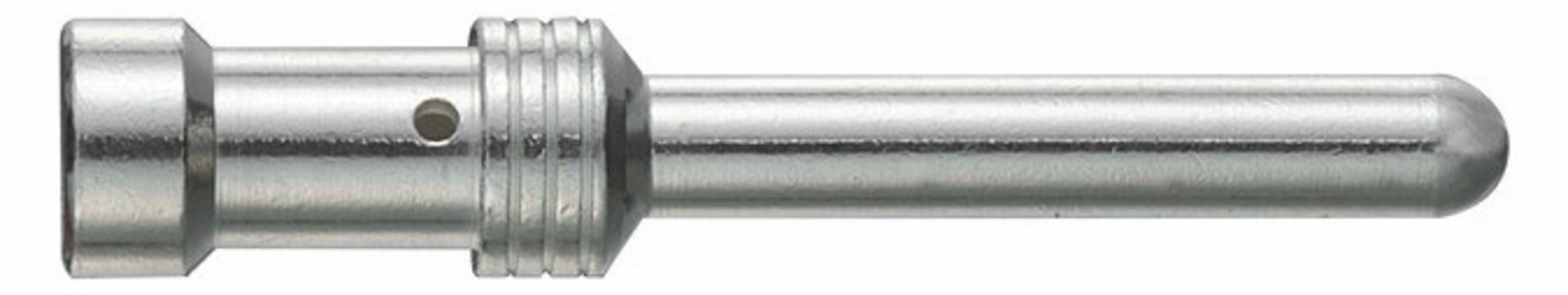

HARTING Pin contact Han E® Pin Contacts round 1 Pole vergoldet Crimp 0,75mm² 1mm² 16A 22,8mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
100 Pcs. in stock
Planned delivery time
Ø 14 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Contact Type
- Pin
- Type
- Pin contact
- Connector Contact
- Crimp
- Series
- Han E®
- Housing
- round
- Design
- Contacts
- Number of poles
- 1
- Standards
- IEC 60664-1
IEC 61984 - Rated current
- 16 A
- RoHS-Conform
Specifications
Open all
Dimensions and Weights
- Dimension: Length
- 22.8 mm
- Diameter
- 4.5 mm
- Conductor cross-section, min.
- 0.75 mm²
- Conductor cross-section (AWG), max.
- 18 AWG
- Conductor cross-section, max.
- 1 mm²
Technical Features
- Rated current
- 16 A
Mechanical Features
- Contact Surface Input
- vergoldet
Safety/Certifications
- Standards
- IEC 60664-1
- IEC 61984
Documents
TB_09330006113_BL01_R414015-100088751drw009_a.pdf
TB_09330006113_BL01_R414015-100088751drw009_a.pdf
