09100033106

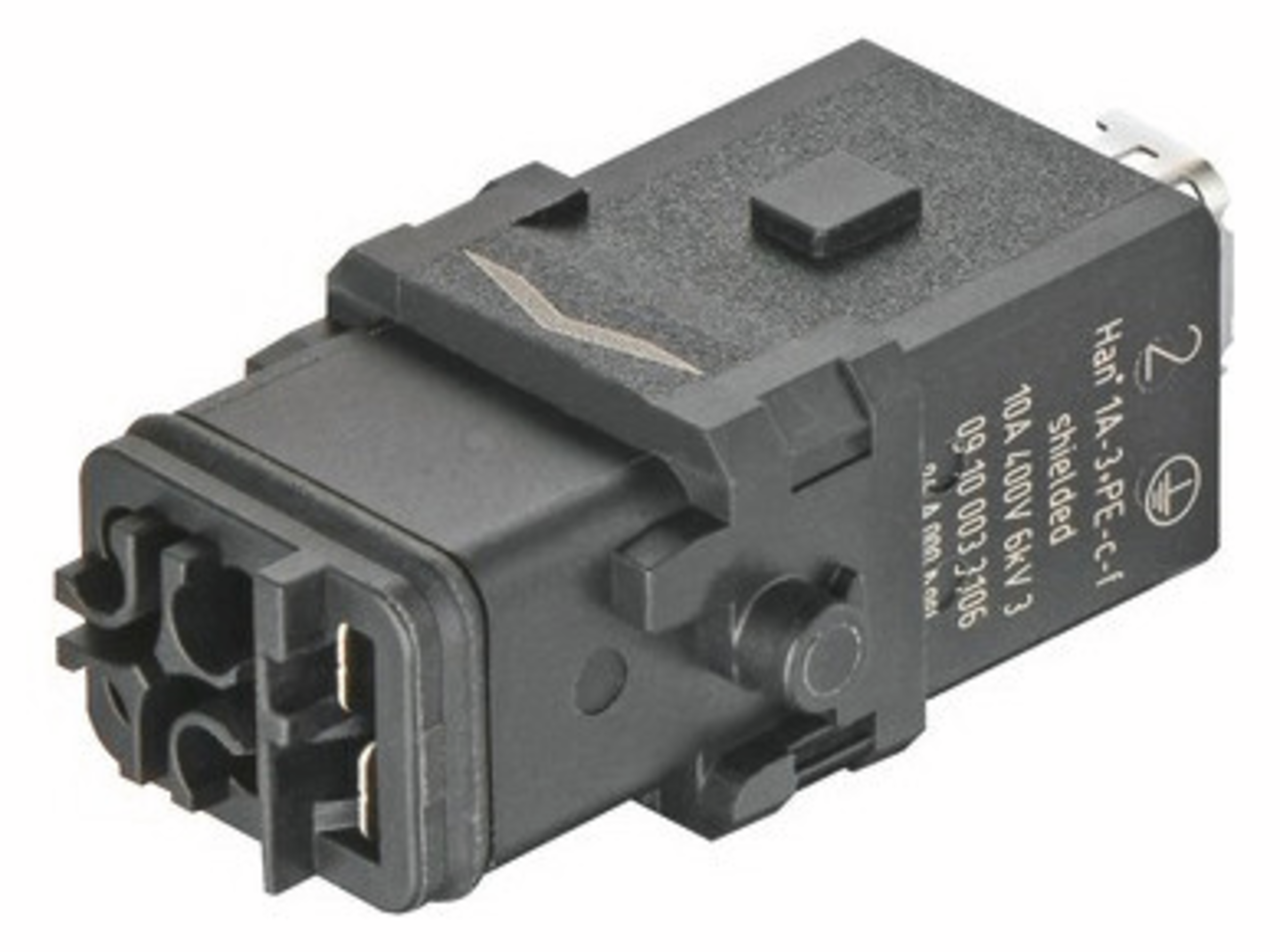

HARTING Socket insert Han® 1A Socket Housing 3+PE Shackle rectangular 3 Pole IP20 black Crimp 0,14mm² 2,5mm² 10A 400VAC 38,8mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
4 Pcs. in stock
Planned delivery time
Ø 14 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Contact Type
- Socket
- Type
- Socket insert
- Connector Contact
- Crimp
- Series
- Han® 1A
- Colour
- black
- Housing material
- Polyamide (PA)
- Housing
- rectangular
- Design
- Housing
- Insulating body
- Nitrile Butadiene Rubber (NBR)
- Number of poles
- 3
- Standards
- EN 45545-2
IEC 60664-1
IEC 61373
IEC 61984 - Contact Type
- 3+PE
- Class of Inflammability
- UL 94 V-0
- Locking
- yes
- IP Protection Class Front Side
- IP20
- Locking Type
- Shackle
- Operating Temperature Max.
- 90 °C
- Rated voltage AC
- 400 V AC
- Rated current
- 10 A
- Operating Temperature Min.
- -30 °C
- RoHS-Conform
Specifications
Open all
Dimensions and Weights
- Dimension: Length
- 38.8 mm
- Dimension: Width
- 16.3 mm
- Dimension: Height
- 25.3 mm
- Weight
- 13 g
- Conductor cross-section, min.
- 0.14 mm²
- Conductor cross-section, max.
- 2.5 mm²
Operating conditions
- Operating Temperature Min.
- -30 °C
- Operating Temperature Max.
- 90 °C
Technical Features
- Rated current
- 10 A
- Rated voltage AC
- 400 V AC
- Test voltage
- 6 V AC
- Insulation resistance
- 10^8 Ohm
Mechanical Features
- Durability
- 100
- Housing material
- Polyamide (PA)
- Insulating body
- Nitrile Butadiene Rubber (NBR)
- Gasket
- NBR
Safety/Certifications
- Approvals
- CSA
- UL
- Standards
- EN 45545-2
- IEC 60664-1
- IEC 61373
- IEC 61984
- Class of Inflammability
- UL 94 V-0
- IP Protection Class Front Side
- IP20
- IP Class Connection Side
- IP20
