09100009901

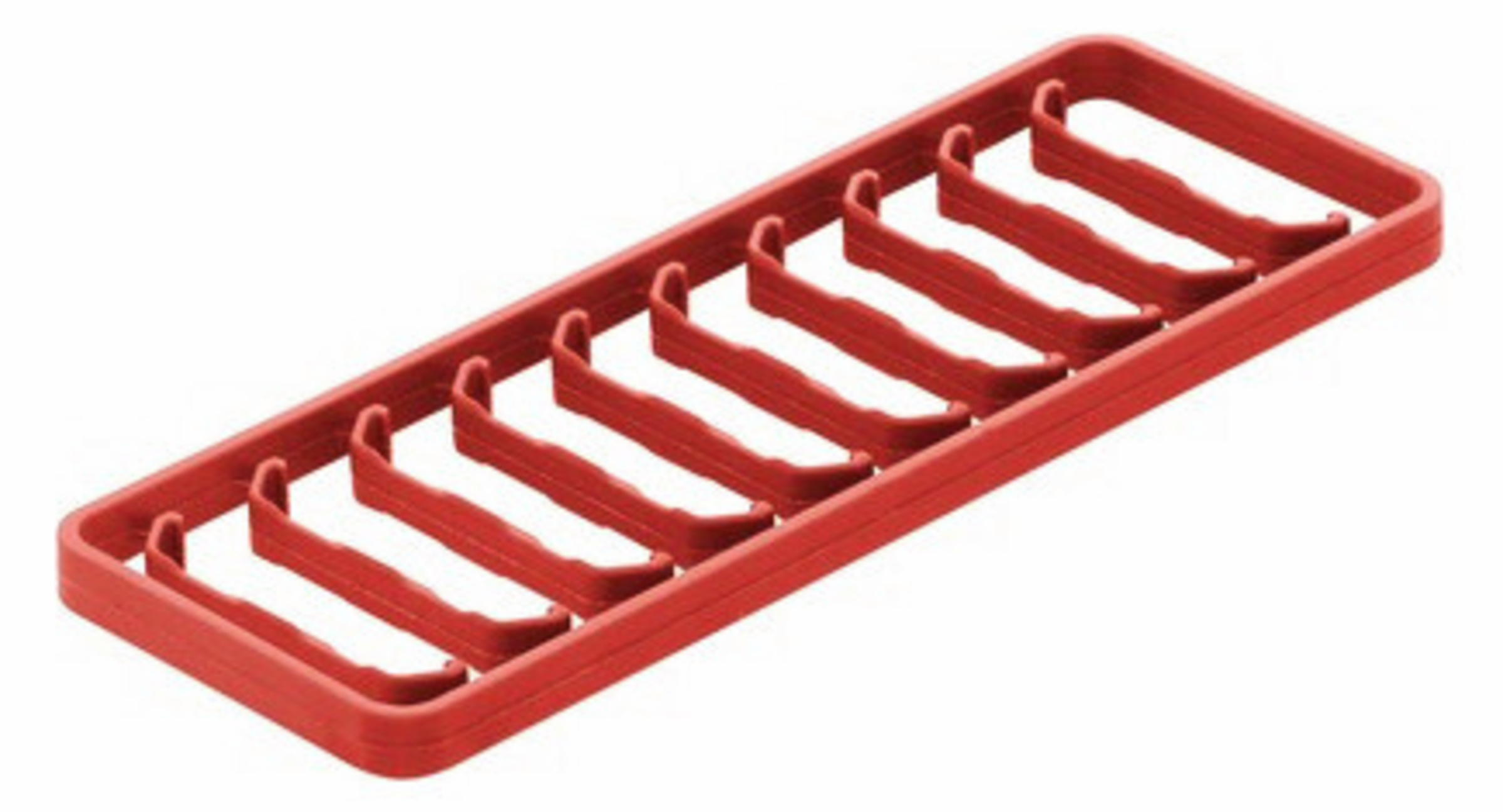

HARTING Coding element Han® 1A Accessories red 77,6mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
4 Pcs. in stock
Planned delivery time
Ø 14 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Coding element
- Series
- Han® 1A
- Colour
- red
- Housing material
- Polyamide (PA)
- Design
- Accessories
- Standards
- EN 45545-2
- Class of Inflammability
- UL 94 HB
- RoHS-Conform
Specifications
Open all
Dimensions and Weights
- Dimension: Length
- 77.6 mm
- Dimension: Width
- 27.2 mm
- Dimension: Height
- 3.6 mm
- Weight
- 3.2 g
Mechanical Features
- Housing material
- Polyamide (PA)
Safety/Certifications
- Approvals
- CSA
- UL
- Standards
- EN 45545-2
- Class of Inflammability
- UL 94 HB
Documents
09100000X019904_100927754DRW000J.pdf
09100000X019904_100927754DRW000J.pdf
09100009901_100725778DRW003D.pdf
09100009901_100725778DRW003D.pdf
