RWH-SS-105D

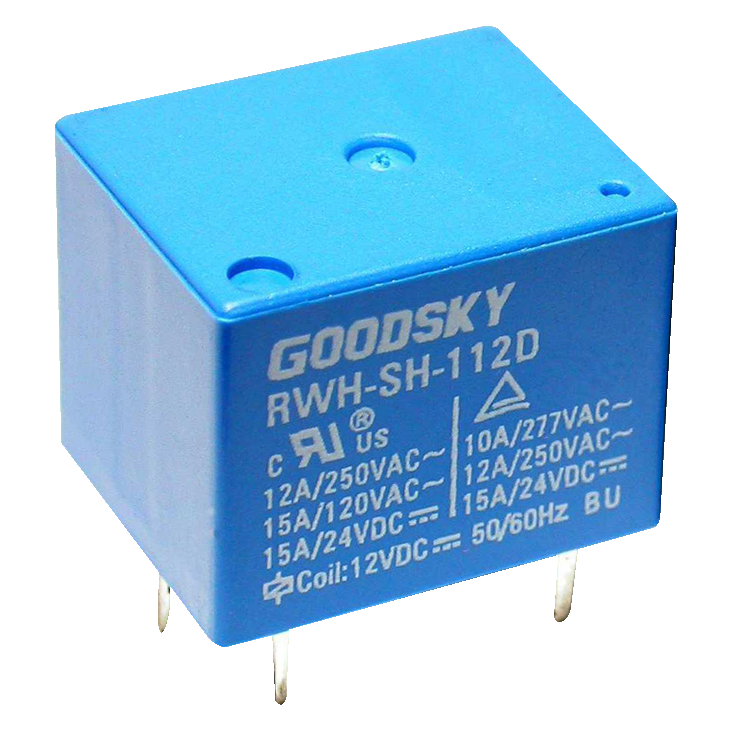

GoodSky PC relay RWH THT SPDT 15A 5VDC 70Ohm 19mmx15,4mmx15mm RTII
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Next Stock Receipt
Week 31/2026
940 Pcs.
940 Pcs.
Planned delivery time
Ø 16 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Notice
- Cross-references:
• Here you will find suitable relay sockets and accessories. - Series
- RWH
- contacts
- SPDT
- Contact: Switching Current (min/typ/max)
- 15 A
- Coil: Nominal Voltage DC
- 5 V DC
- Coil resistance
- 70 Ohm
- Protection class RT
- RTII
- RoHS-Conform
Specifications
Open all
Dimensions and Weights
- Dimension: Length
- 19 mm
- Dimension: Width
- 15.4 mm
- Dimension: Height
- 15 mm
- Weight
- 9 g
Operating conditions
- Operating Temperature Min.
- -30 °C
- Operating Temperature Max.
- 85 °C
Technical Features
- Contact: Switching Current (min/typ/max)
- 15 A
- Contact: Switching Voltage, max. AC
- 240 V AC
- Contact: Switching Voltage, max. DC
- 110 V DC
- Contact: Switching Capacity (VA)
- 3,000 VA
- Contact: Switching Load (W)
- 360 W
- Contact resistance
- 100 mOhm
- Coil design
- monostable
- Coil resistance
- 70 Ohm
- Inductor power
- 360 mW
- Coil: Nominal Voltage DC
- 5 V DC
- Coil: Operating Voltage, max.
- 6.5 V
- Coil: Pick-up voltage
- 3.75 V
- Coil: Drop-out Voltage
- 0.25 V
- Test voltage open contacts
- 500 V AC
- Test voltage coil/contact
- 1,000 V AC
- Response time
- 10 ms
- Drop-out time
- 5 ms
- Mechanical service life
- 10 x 10^6 operations
- Service life, electrical
- 100,000 operations
- Insulation resistance
- 100 MOhm
- Vibration resistance
- 1,5 mm DA
- Impact resistance, functional
- 100 m/s²
Safety/Certifications
- Approvals
- MOT
- cULus
- Standards
- IEC 60335-1
- Protection class RT
- RTII
