GU-SH-124DM

GoodSky Power relay GU THT SPST-NO 30A 24VDC 660Ohm 32,1mmx27,5mmx20mm RTIII

Image similar
Manufacturer Part No.
GU-SH-124DM
Schukat Part No.
GU-SH-124DM
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

0 Pcs. in stock

Planned delivery time
Ø 18 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available on order
Replacement / Follow-up View entire series
Data Sheet
ECAD Model
Downloads

Prices

Manufacturer bundle 400 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 400 or multiple of 400)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Series
GU
Type
Power relay
contacts
SPST-NO
Switching current
30 A
Rated current
36 mA
Rated voltage DC
24 V DC
Coil resistance
660 Ohm
Protection class RT
RTIII

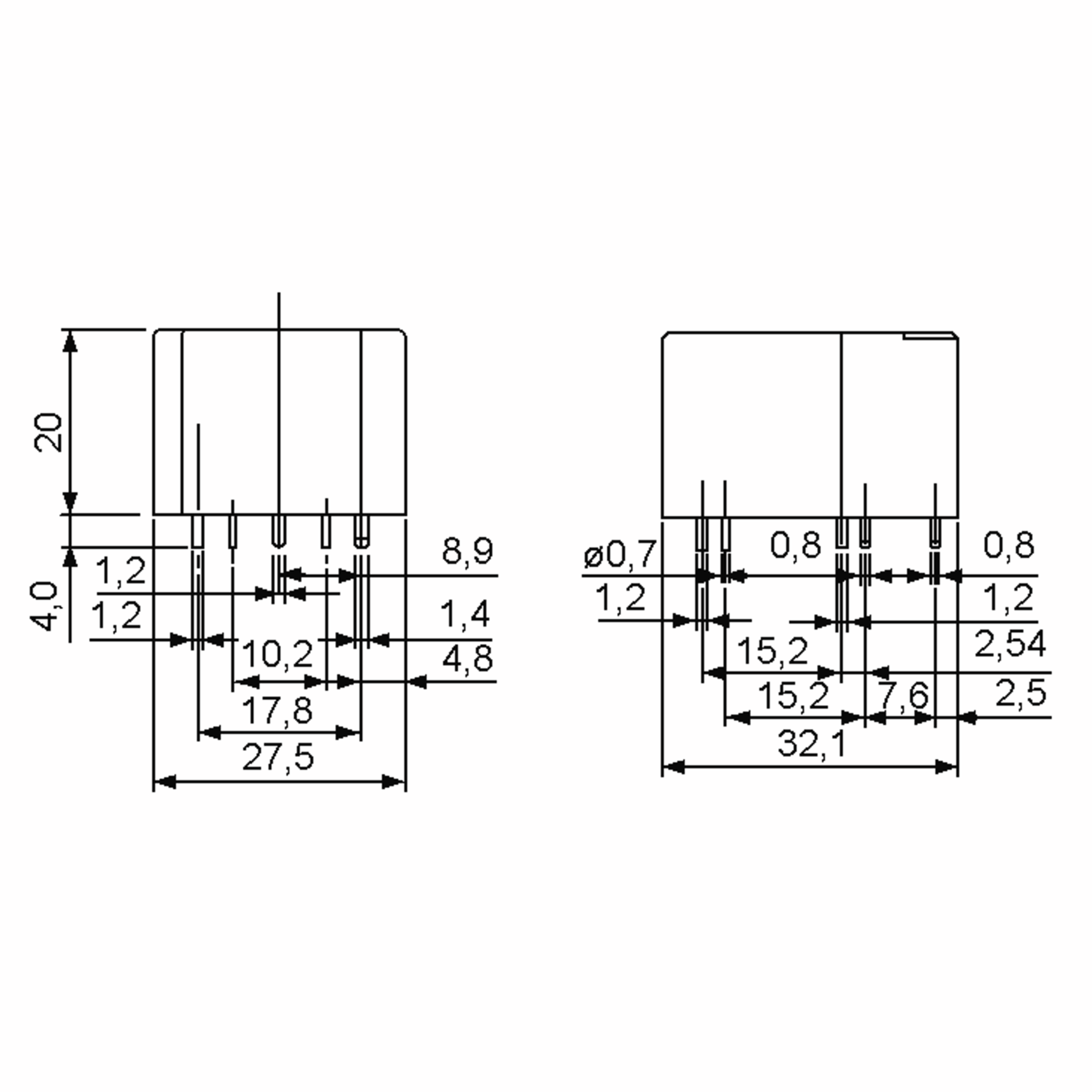

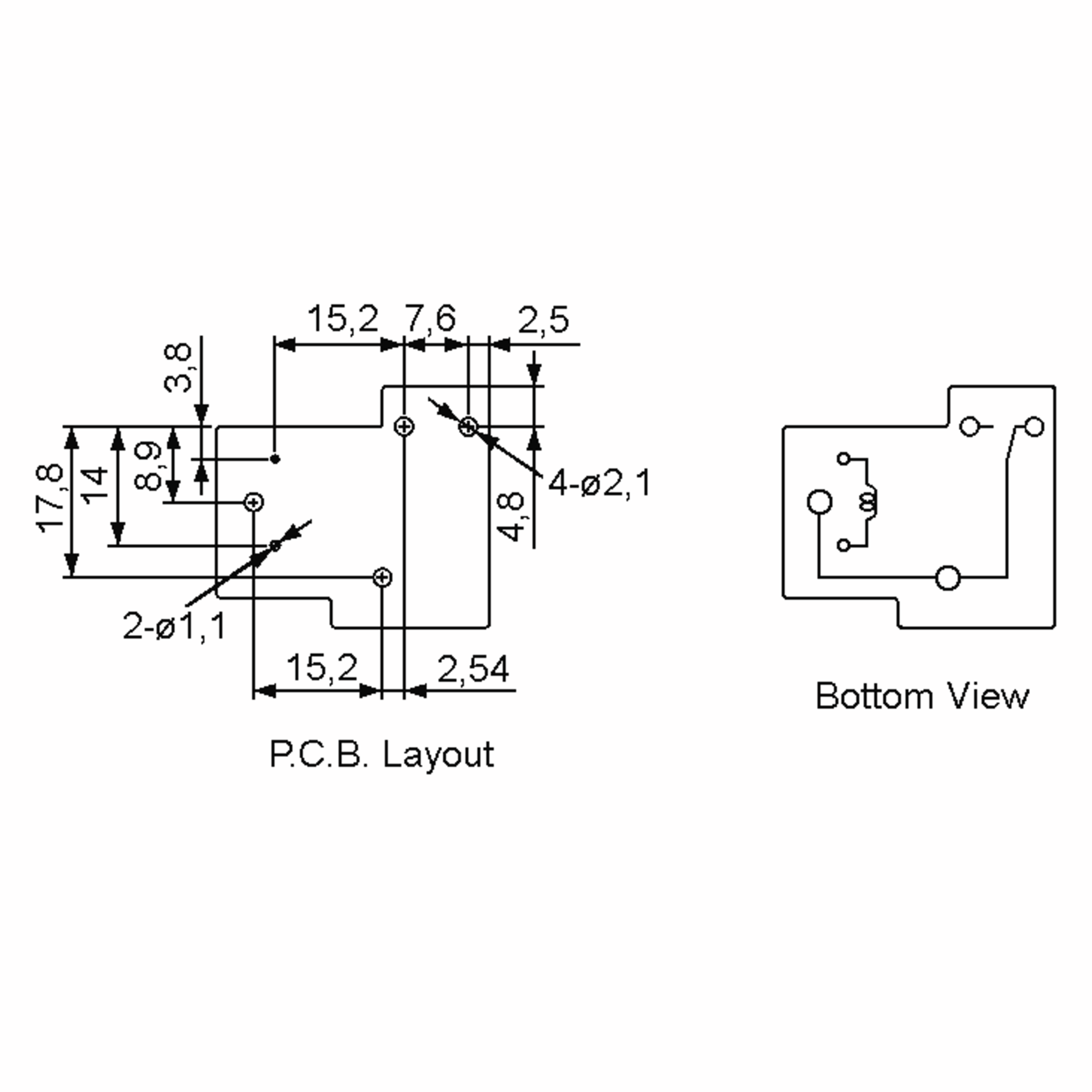

Dimension: Length
32.1 mm
Dimension: Width
27.5 mm
Dimension: Height
20 mm
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • GoodSky
Type
  • Power relay
Series
  • GU
Product group
  • E6462
contacts
  • SPST-NO
Contact material
  • Ag alloy
Assembly Type
  • THT

Dimensions and Weights

Dimension: Length
  • 32.1 mm
Dimension: Width
  • 27.5 mm
Dimension: Height
  • 20 mm
Weight
  • 27.2 g

Operating conditions

Operating Temperature Min.
  • -25 °C
Operating Temperature Max.
  • 55 °C

Technical Features

Rated voltage DC
  • 24 V DC
Coil design
Switching voltage, max. AC
  • 240 V AC
Response voltage
  • 19.2 V
Drop-out voltage
  • 1.2 V
Test voltage contact/contact
  • 1,500 V AC
Test voltage coil/contact
  • 1,500 V AC
Rated current
  • 36 mA
Switching current
  • 30 A
Continuous current
  • 30 A
Rated power
  • 930 mW
Switching capacity (VA)
  • 7,200 VA
Switching capacity (W)
  • 900 W
Coil resistance
  • 660 Ohm
Contact resistance
  • 100 mOhm
Insulation resistance
  • 100 MOhm
Response time
  • 15 ms
Drop-out time
  • 10 ms
Vibration resistance
  • 1,5 mm DA
Impact resistance, functional
  • 50 m/s²

Safety/Certifications

Approvals
  • cULus
Protection class RT
  • RTIII
