GU-SH-124D
GoodSky Power relay GU THT SPDT 30A 24VDC 660Ohm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
400 Pcs. in stock
Planned delivery time
Ø 18 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 400 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Power relay
- Series
- GU
- Rated current
- 36 mA
- Rated voltage DC
- 24 V DC
- Switching current
- 30 A
- contacts
- SPDT
- Coil resistance
- 660 Ohm
- Dimension: Length
- 32.1 mm
- Dimension: Width
- 27.5 mm
- Dimension: Height
- 20 mm
- RoHS-Conform
Specifications
Open all

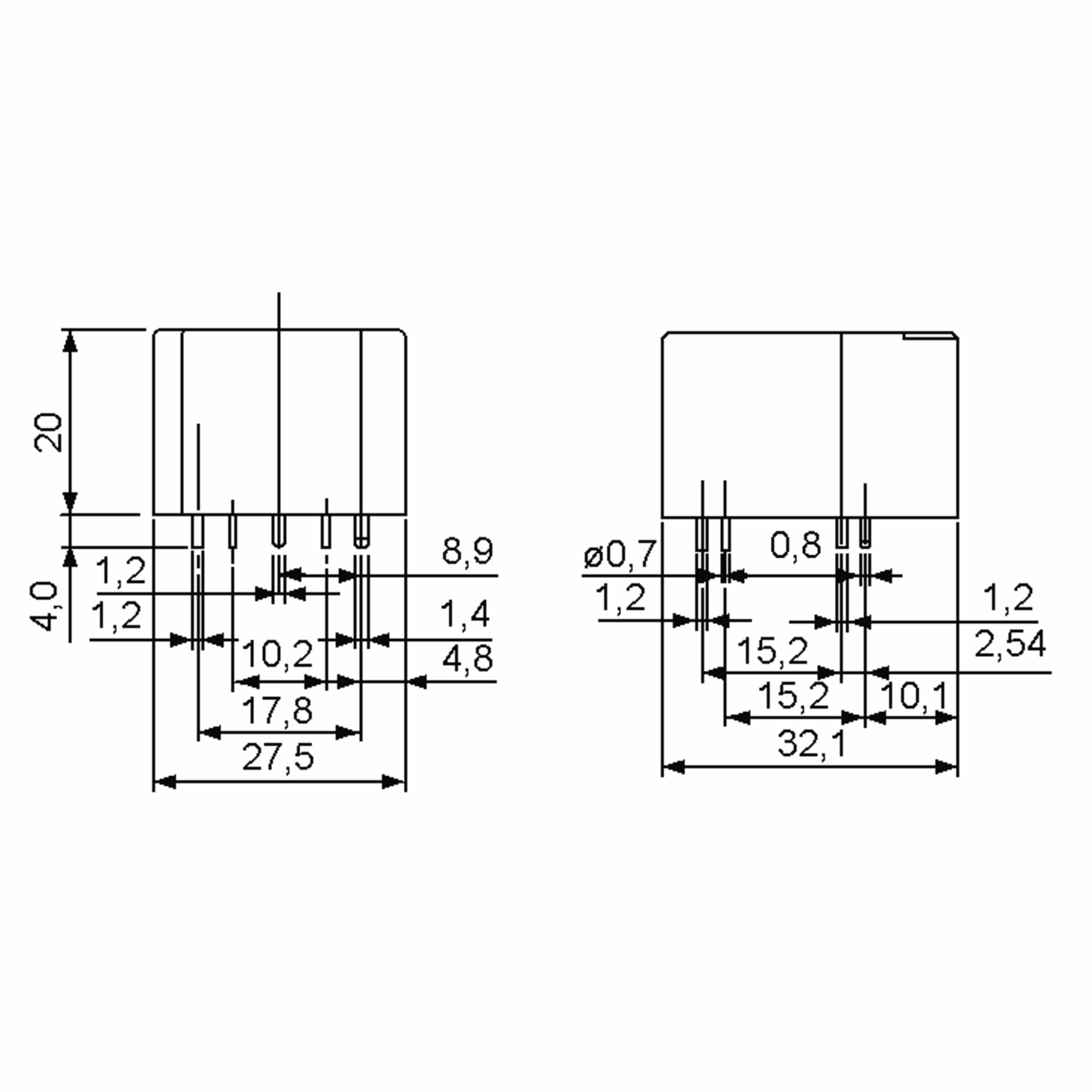

Dimensions and weights
- Dimension: Length
- 32.1 mm
- Dimension: Width
- 27.5 mm
- Dimension: Height
- 20 mm
- Weight
- 27.2 g
Operating conditions
- Operating Temperature Min.
- -25 °C
- Operating Temperature Max.
- 55 °C
Technical features
- Rated voltage DC
- 24 V DC
- Coil design
- Switching voltage, max. AC
- 240 V AC
- Response voltage
- 19.2 V
- Drop-out voltage
- 1.2 V
- Test voltage contact/contact
- 1,500 V AC
- Test voltage coil/contact
- 1,500 V AC
- Rated current
- 36 mA
- Switching current
- 30 A
- Continuous current
- 30 A
- Rated power
- 930 mW
- Switching capacity (VA)
- 7,200 VA
- Switching capacity (W)
- 600 W
- Coil resistance
- 660 Ohm
- Contact resistance
- 100 mOhm
- Insulation resistance
- 100 MOhm
- Response time
- 15 ms
- Drop-out time
- 10 ms
- Vibration resistance
- 1,5 mm DA
- Impact resistance, functional
- 50 m/s²
Safety/Certifications
- Approvals
- cULus
- Protection class RT
- RTIII
