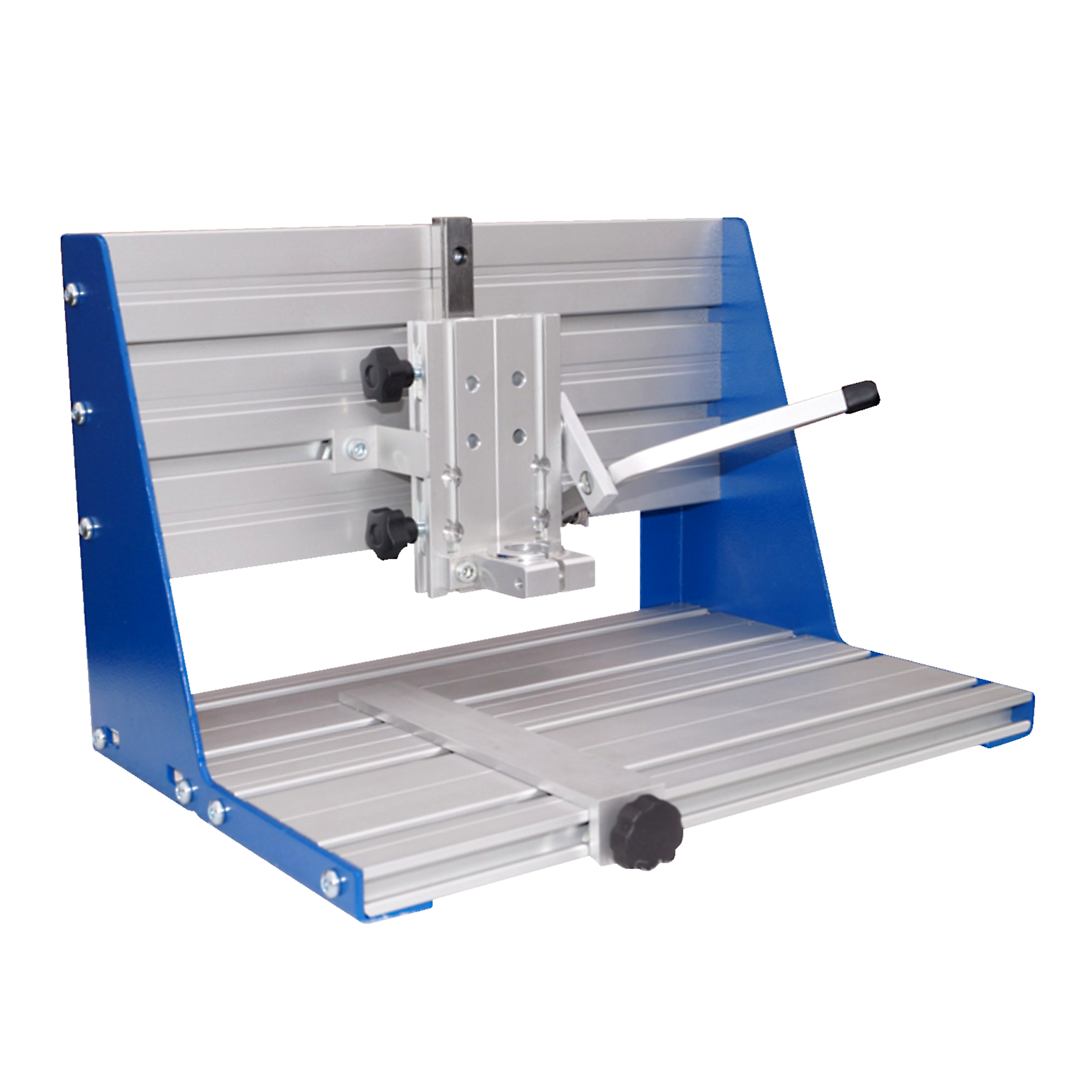

Gie-Tec 144002 Drilling/Routing Stand

Manufacturer Part No.
144002
Schukat Part No.
BF144002
Manufacturer
Gie-Tec
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

1 Pcs. in stock

Planned delivery time
Ø 2 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Specifications

Open all

General

Manufacturer
  • Gie-Tec
Type
  • Drilling/Routing Stand
Series
  • 144002
Dimension: Length
  • 358 mm
Dimension: Width
  • 175 mm
Dimension: Height
  • 215 mm
Application

  • For precise drilling and milling of blanks and sheets.

Weight
  • 4,700 g
Colour
  • silver
Features

  • - Universal mounting frame for mechanical equipment and devices such as e.g. drilling/milling machines, dosing units
    - Sturdy profile frame with aluminium side walls
    - T-slot recesses for square nuts (M4 to M6) in the base plate as well as the mounting plate
    - Lifting device to accommodate a processing machine
    - linear guide with ball bearings
    - ergonomically shaped hand lever
    - adjustable and lockable stops for height, depth and side limitation

Safety/Certifications

ESD
