GPZA13F465C6

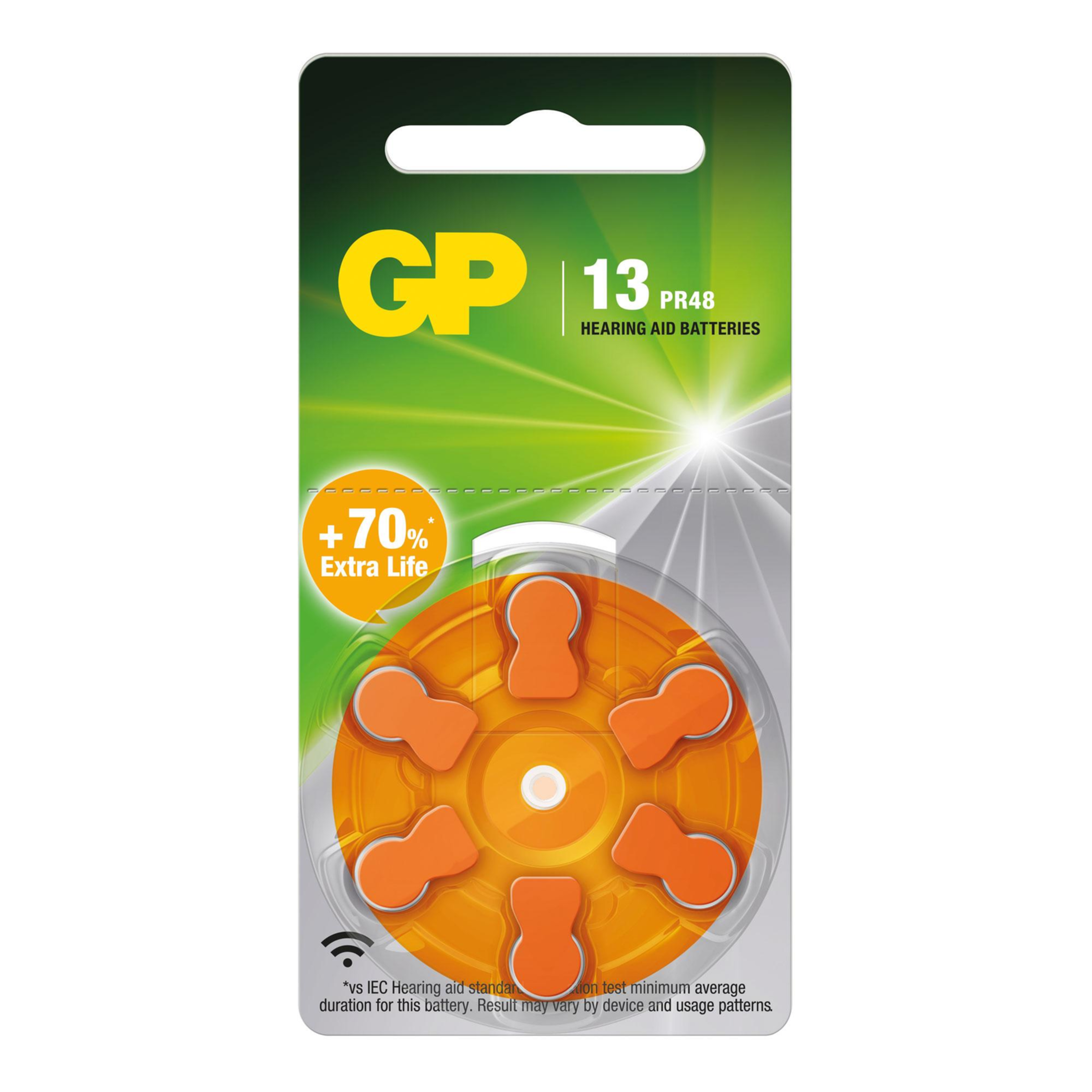

GP Batteries Zinc air (Zn-Air) Button Cell PR PR48 1,45V Blister pack of 6
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
276 Pcs. in stock
Planned delivery time
Ø 2 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 6 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 6 or multiple of 6)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Rated Voltage
- 1.45 V
- Chemical system
- Zinc air (Zn-Air)
- IEC Code
- PR48
- Other designation
- GPZA13F
PR13
ZA13F - Delivery unit
- Blister pack of 6
Specifications
Open all
Operating conditions
- Operating temperature min.
- -10 °C
- Operating temperature max.
- 50 °C
- Relative humidity
- 50 %
- Storage Temperature Min.
- 10 °C
- Storage Temperature Max.
- 30 °C
- Shelf life (years)
- 4
Electrical features
- Impedance
- 7,500 mOhm
- Rated Voltage
- 1.45 V
Documents
GP Batteries Katalog 2025-DE (Low Res).pdf
MSDS_GP_Zinc Air_2024.pdf
