GPRCP80AA929C4

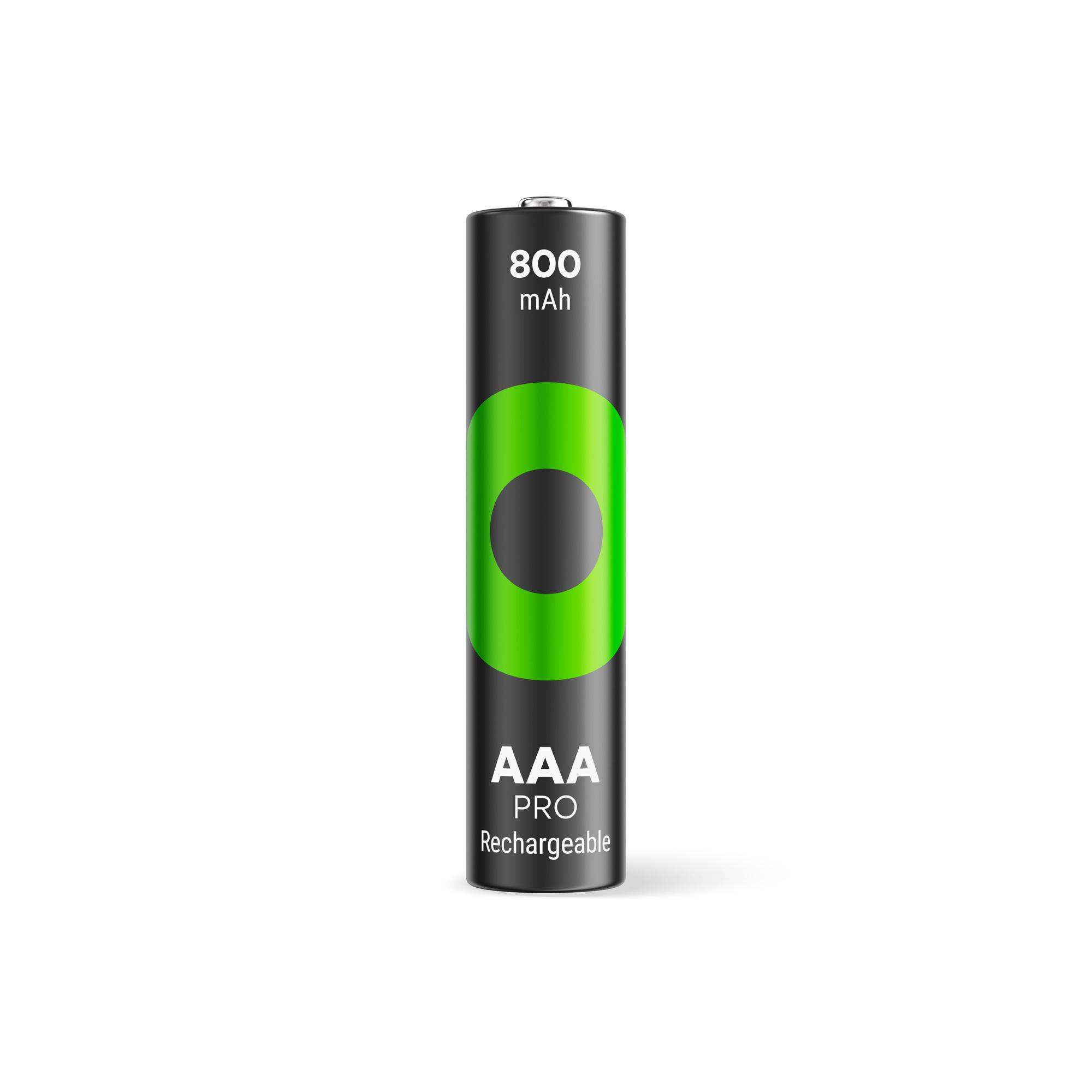

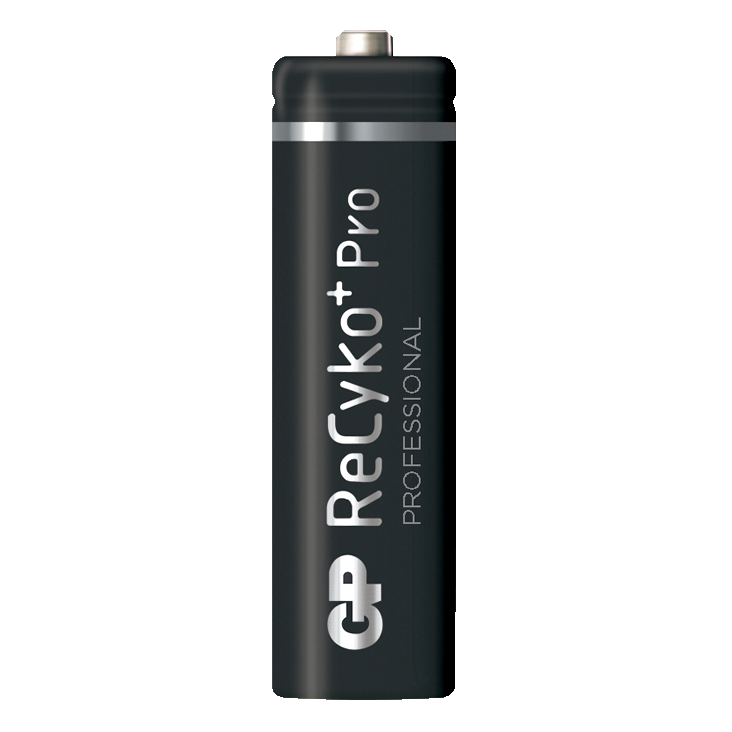

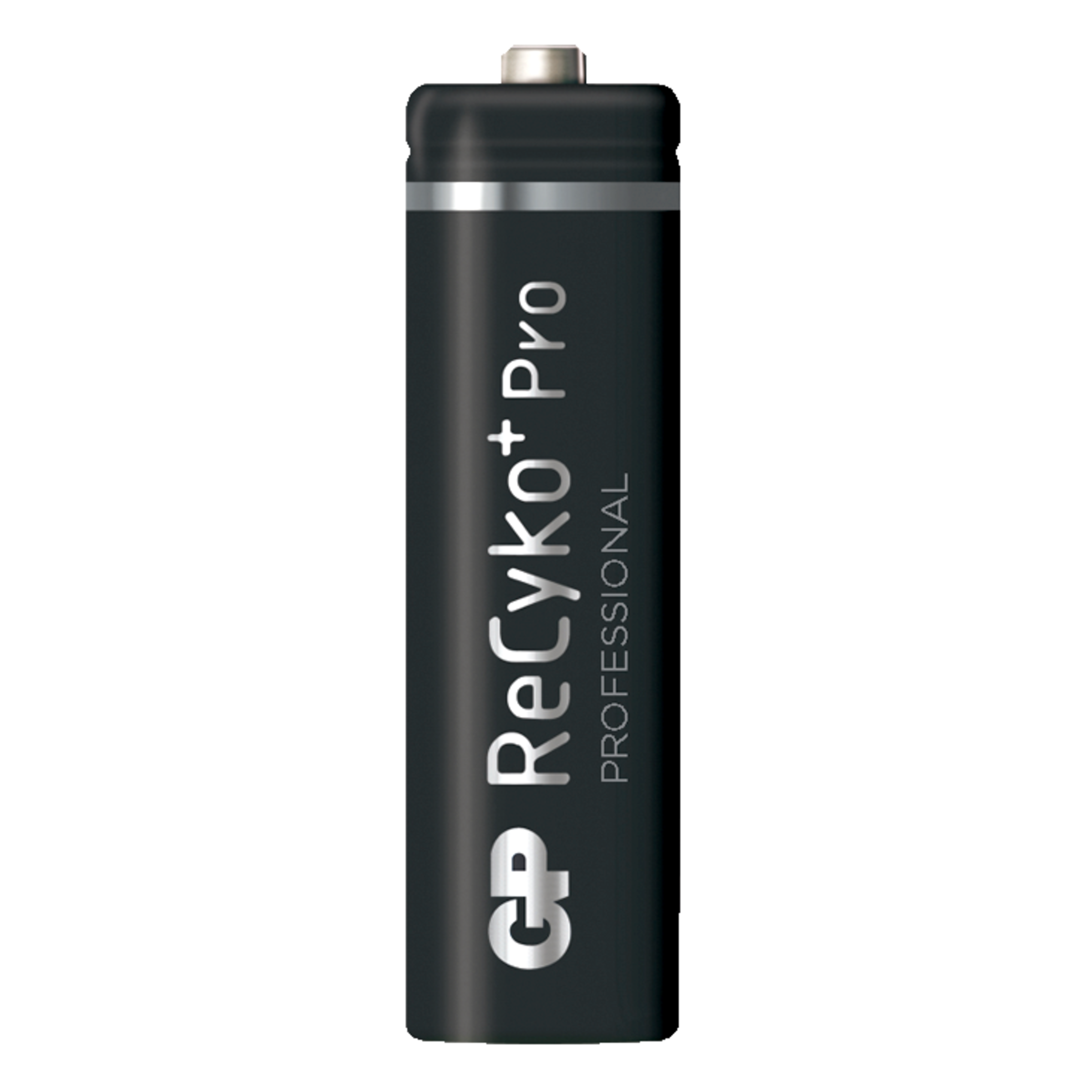

GP Batteries Nickel metal hydride (NiMH) Round Cell Accu ReCyko_Pro 1,2V 800mAh HR03 AAA, Micro GP85AAAHCBP Blister pack of 4
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
53 Pcs. in stock
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 20.06.2024
Discontinued by manufacturer with replacement
Data Sheet
ECAD Model
Prices
Manufacturer bundle 10 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- UN Number (Dangerous Goods)
- 3496 - Batteries, Nickel Metal Hydride
- Rated Voltage
- 1.2 V
- Nominal capacity
- 800 mAh
- Chemical system
- Nickel metal hydride (NiMH)
- IEC Code
- HR03
- Other designation
- AAA, Micro
GP85AAAHCBP - Delivery unit
- Blister pack of 4
Specifications
Open all
Operating conditions
- Operating temperature, charge, min.
- 0 °C
- Operating temperature, charge, max.
- 45 °C
- Operating temperature, discharge, min.
- -20 °C
- Operating temperature, discharge, max.
- 50 °C
- Shelf life, IEC
- 1,000 Zyklen
- Storage Temperature Min.
- -20 °C
- Storage Temperature Max.
- 35 °C
Electrical features
- Nominal capacity
- 800 mAh
- Rated Voltage
- 1.2 V
- Charge voltage, max.
- 1.5 V
- Charge end voltage
- 1 V
- Charge current, standard
- 80 mA
Hazardous Substances/Goods
- UN Number (Dangerous Goods)
- 3496 - Batteries, Nickel Metal Hydride
Documents
RRS0541 Rev.32.1 (MSDS ALL NiMH, GPII+DGCB).pdf
