GPCR2430STD154C5

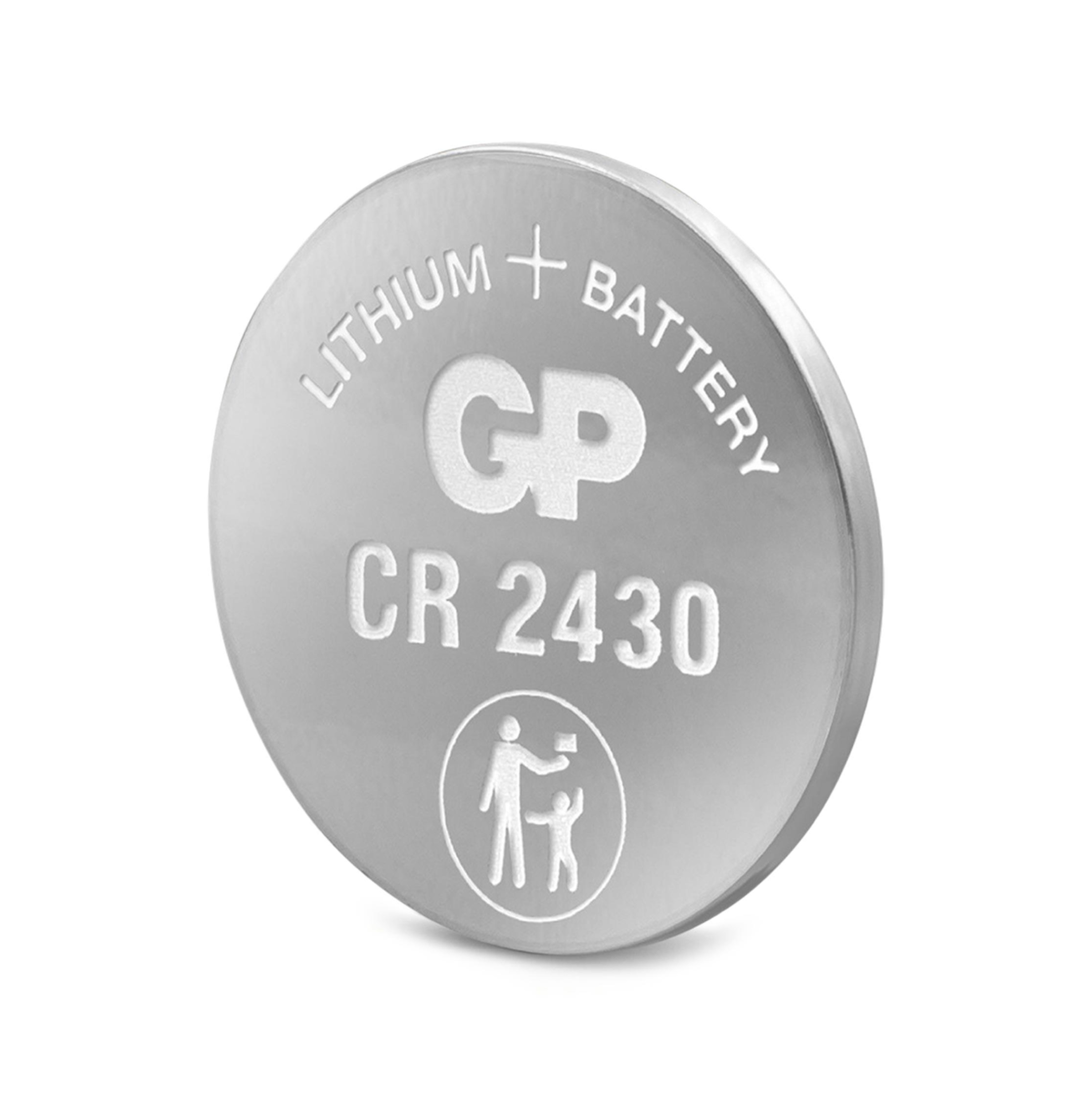

GP Batteries Lithium manganese dioxide (LiMn2O4) Button Cell CR CR2430 3V 275mAh Blister pack of 5
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Planned delivery time
Ø 21 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 5 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 100 or multiple of 100)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- UN Number (Dangerous Goods)
- 3090 - Lithium Metal Battery
- Rated Voltage
- 3 V
- Nominal capacity
- 275 mAh
- Chemical system
- Lithium manganese dioxide (LiMn2O4)
- IEC Code
- CR2430
- Delivery unit
- Blister pack of 5
Specifications
Open all
Operating conditions
- Operating temperature min.
- -20 °C
- Operating temperature max.
- 60 °C
- Storage Temperature Max.
- 20 °C
- Shelf life (years)
- 10
Electrical features
- Nominal capacity
- 275 mAh
- Energy storage, capacity
- 0.825 Wh
- Rated Voltage
- 3 V
Hazardous Substances/Goods
- UN Number (Dangerous Goods)
- 3090 - Lithium Metal Battery
Documents
GP Batteries Katalog 2025-DE (Low Res).pdf
MSDS_Lithium Coin Cell _2026-1.pdf
UN38.3_CR2430.pdf
