GPCR2032ECO833B

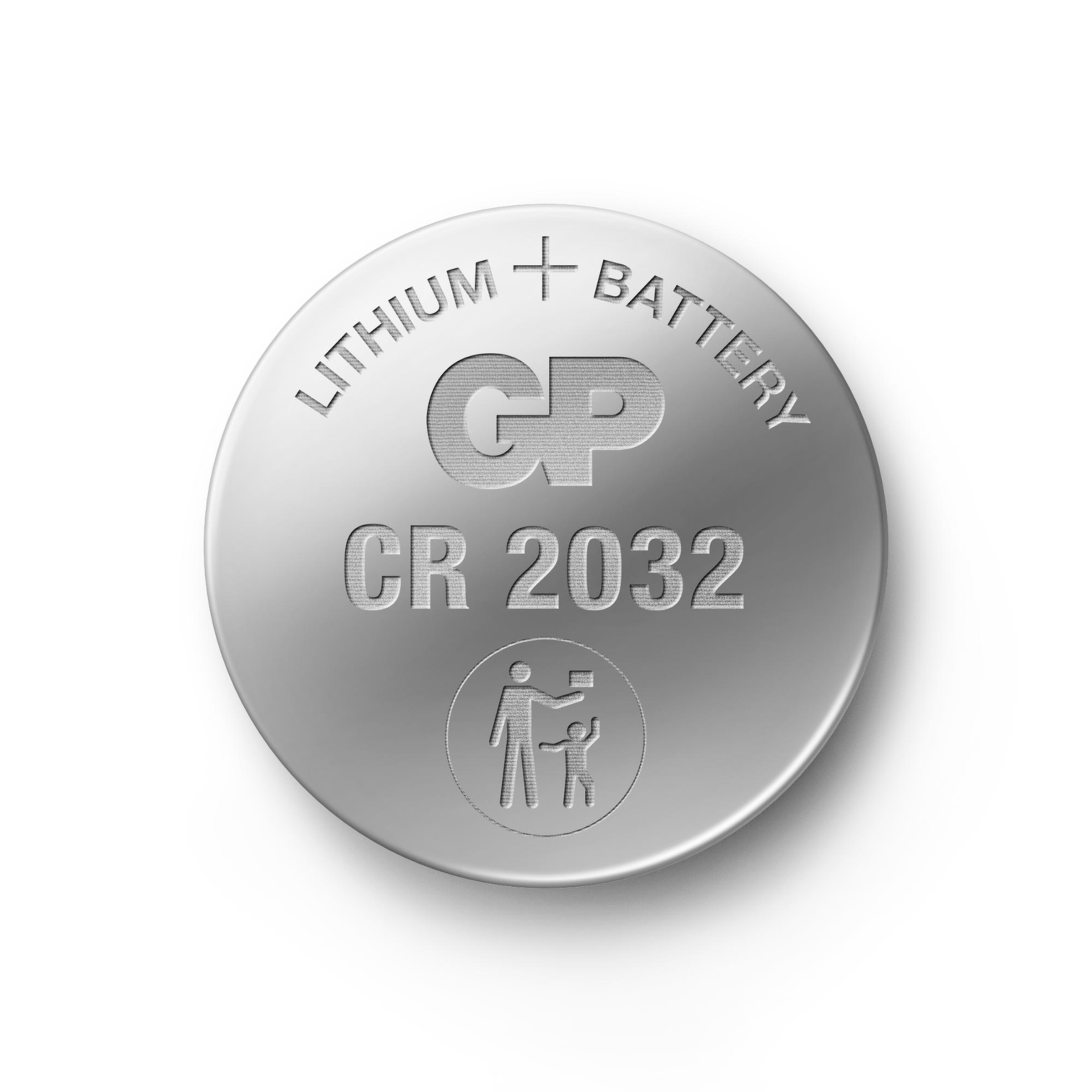

GP Batteries Lithium manganese dioxide (LiMn2O4) Button Cell CR CR2032 3V 220mAh Blister pack of 25
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Planned delivery time
Ø 2 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 25 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 25 or multiple of 25)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- UN Number (Dangerous Goods)
- 3090 - Lithium Metal Battery
- Rated Voltage
- 3 V
- Nominal capacity
- 220 mAh
- Chemical system
- Lithium manganese dioxide (LiMn2O4)
- IEC Code
- CR2032
- Other designation
- CR2032E
DL2032
ECR2032 - Delivery unit
- Blister pack of 25
Specifications
Open all
Operating conditions
- Operating temperature min.
- -10 °C
- Operating temperature max.
- 60 °C
- Shelf life (years)
- 5
Electrical features
- Nominal capacity
- 220 mAh
- Energy storage, capacity
- 0.66 Wh
- Rated Voltage
- 3 V
Hazardous Substances/Goods
- UN Number (Dangerous Goods)
- 3090 - Lithium Metal Battery
Documents
GP Batteries Katalog 2025-DE (Low Res).pdf
MSDS_Lithium Coin Cell _2026-1.pdf
UN38.3_CR2032.pdf
