GPCR123AECO043C1

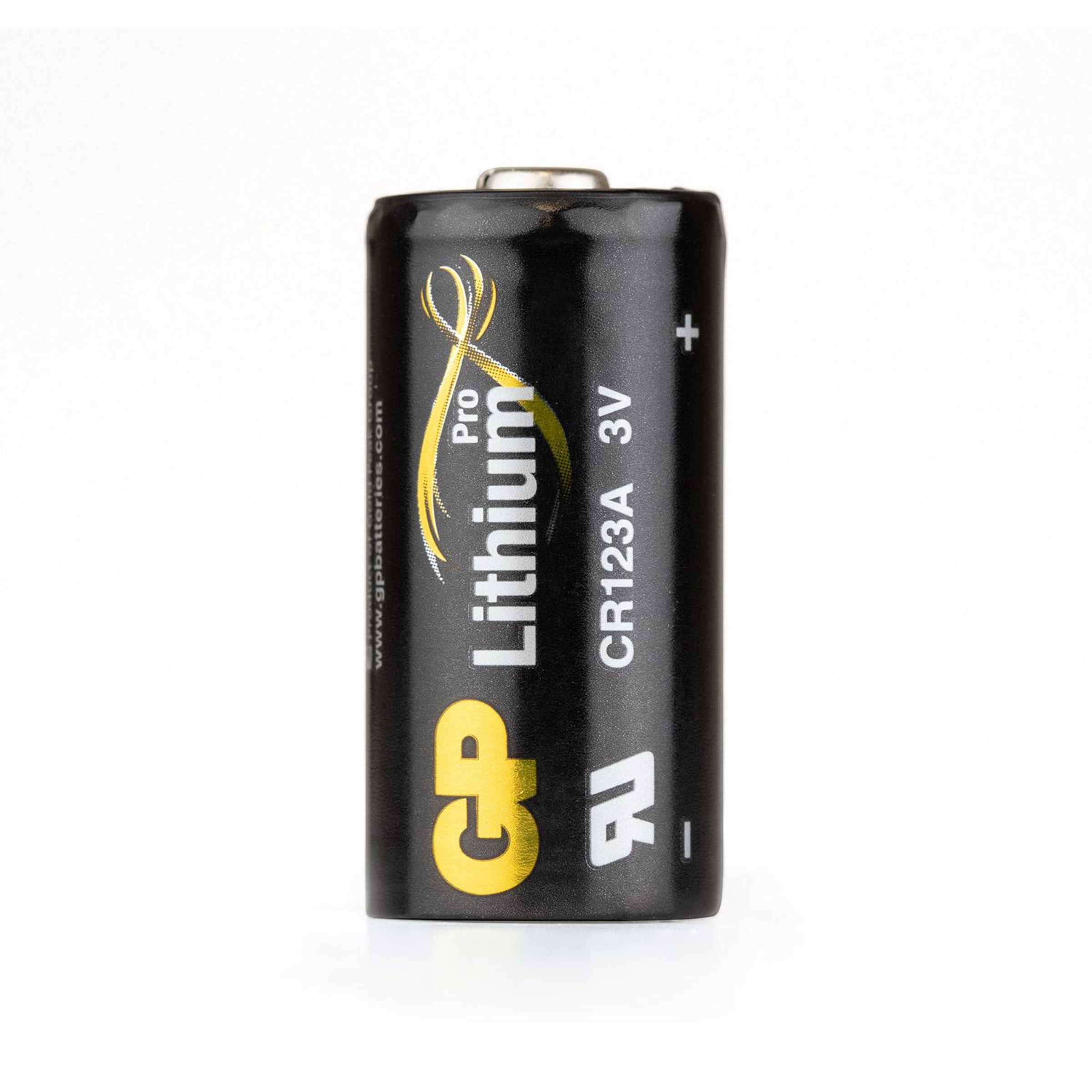

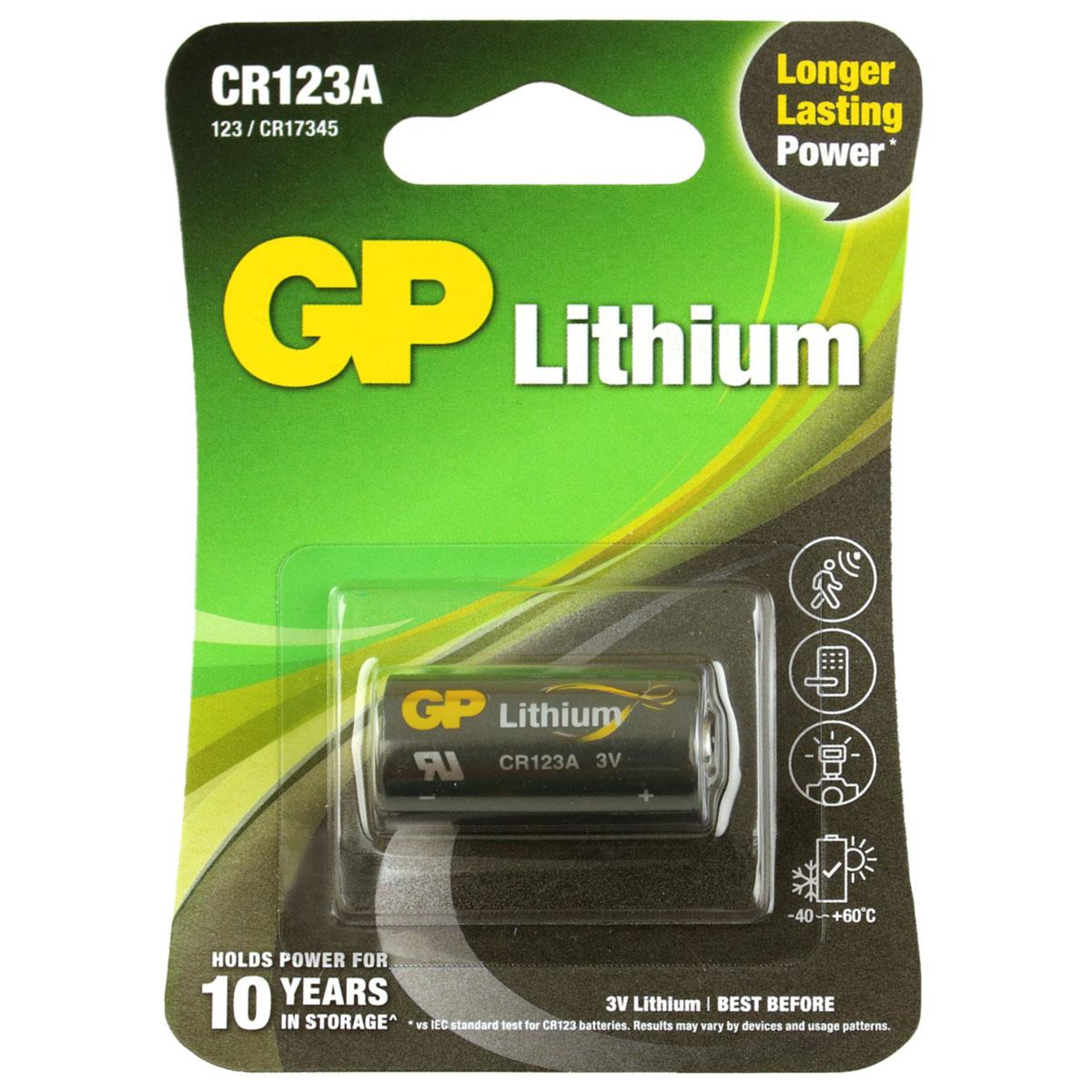

GP Batteries Lithium manganese dioxide (LiMn2O4) Round Cell 070CR 3V CR17345 2/3A
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Item no longer available!
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 19.01.2026
Discontinued by manufacturer with replacement
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- UN Number (Dangerous Goods)
- 3090 - Lithium Metal Battery
- Rated Voltage
- 3 V
- Nominal capacity
- 1,400 mAh
- Chemical system
- Lithium manganese dioxide (LiMn2O4)
- IEC Code
- CR17345
- Other designation
- 2/3A
Specifications
Open all
Operating conditions
- Operating temperature min.
- -40 °C
- Operating temperature max.
- 60 °C
- Shelf life (years)
- 10
Electrical features
- Nominal capacity
- 1,400 mAh
- Energy storage, capacity
- 4.2 Wh
- Rated Voltage
- 3 V
Safety/Certifications
- Standards (safety)
- UL 1642 UL 2054 IEC 60086-4
Hazardous Substances/Goods
- UN Number (Dangerous Goods)
- 3090 - Lithium Metal Battery
Documents
GP Batteries Katalog 2025-DE (Low Res).pdf
GPCR123A UN38.3 Test summary.pdf
MSDS_Lithium NBGE_2026.pdf
