30117R9H-C1

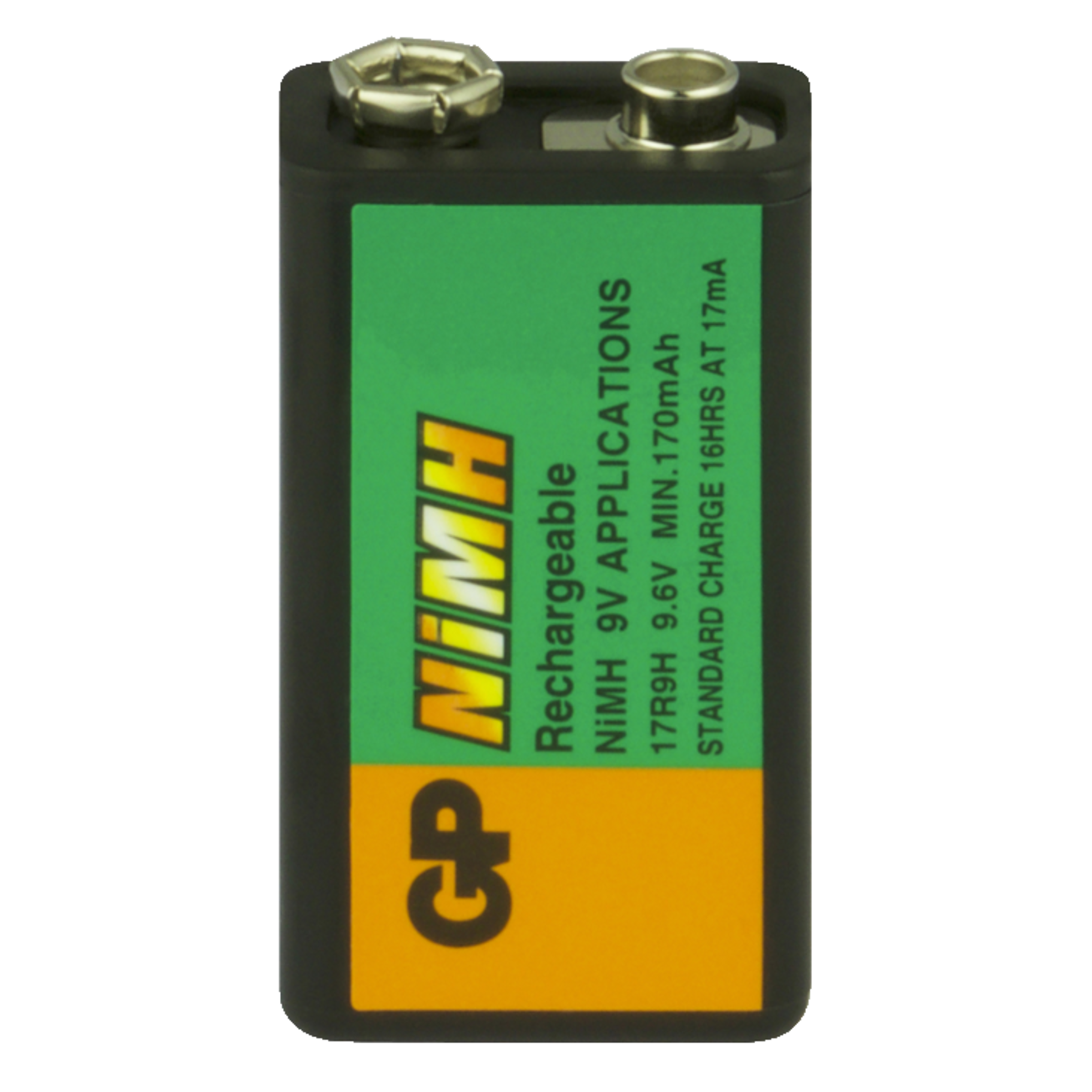

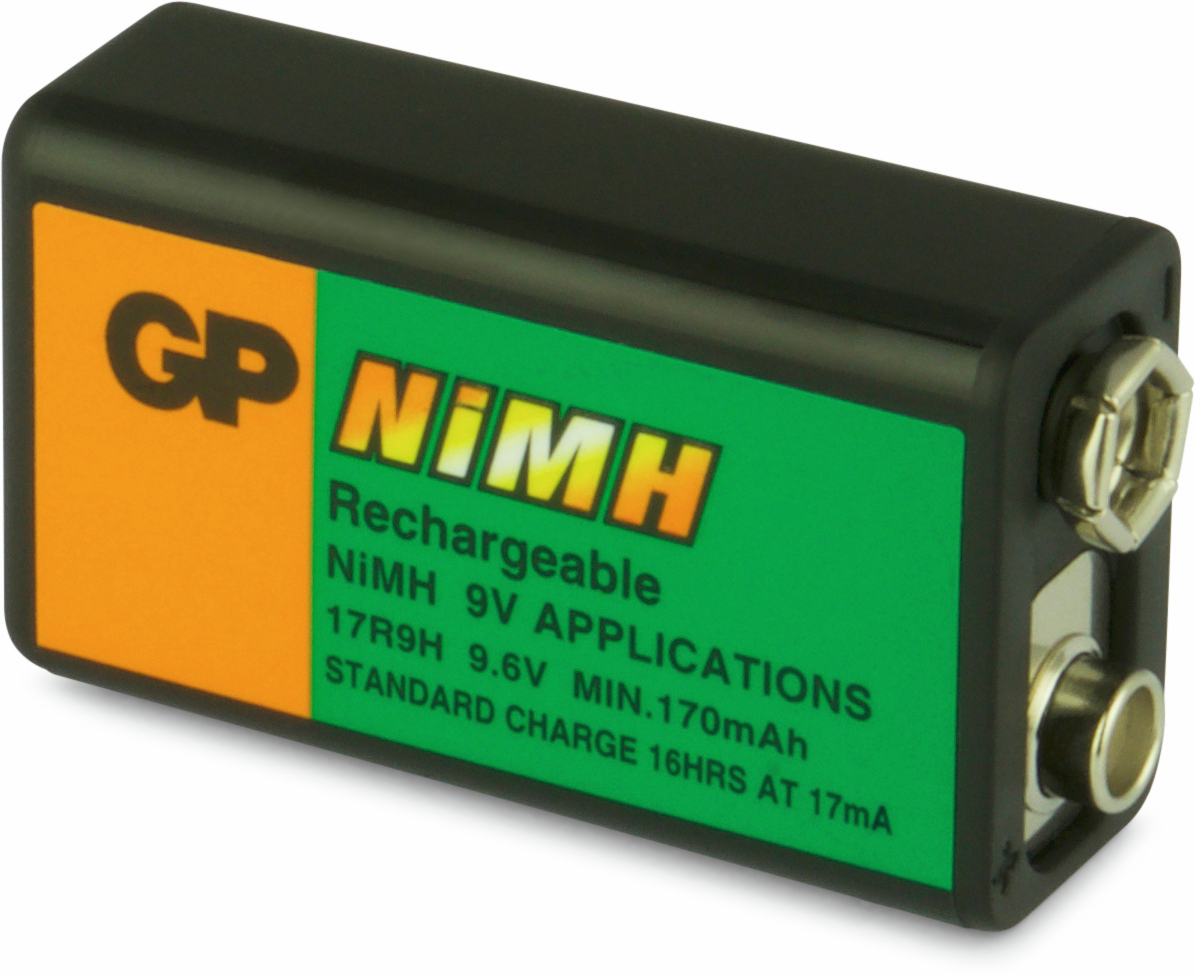

GP Batteries Nickel Metal Hydride Prismatic Cell Industrial 9,6V 170mAh 6HR61 E, Block
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
8 Pcs. in stock
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 07.11.2023
Discontinued by manufacturer with replacement
Data Sheet
ECAD Model
Prices
Manufacturer bundle 10 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 2 or multiple of 2)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Rated Voltage
- 9.6 V
- Nominal capacity
- 170 mAh
- Chemical system
- Nickel Metal Hydride
- IEC Code
- 6HR61
- Other designation
- E, Block
Specifications
Open all
Operating conditions
- Operating temperature, charge, min.
- 10 °C
- Operating temperature, charge, max.
- 45 °C
- Operating temperature, discharge, min.
- -20 °C
- Operating temperature, discharge, max.
- 50 °C
- Shelf life, IEC
- 500 Zyklen
- Storage Temperature Min.
- -20 °C
- Storage Temperature Max.
- 35 °C
Electrical features
- Nominal capacity
- 170 mAh
- Rated Voltage
- 9.6 V
- Charge voltage, max.
- 12 V
- Charge end voltage
- 8 V
- Charge current, standard
- 17 mA
- Charge current, fast
- 85 mA
- Charge current, max.
- 170 mA
