WSTW-A 127
WSTW-A Heat shrink tube Polyolefin 2:1 12,7mm roll 50m black
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Planned delivery time
Ø 12 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Series
- WSTW-A
- Type
- Heat shrink tube
- Colour
- black
- Length of Shrink Tubing
- 50 m

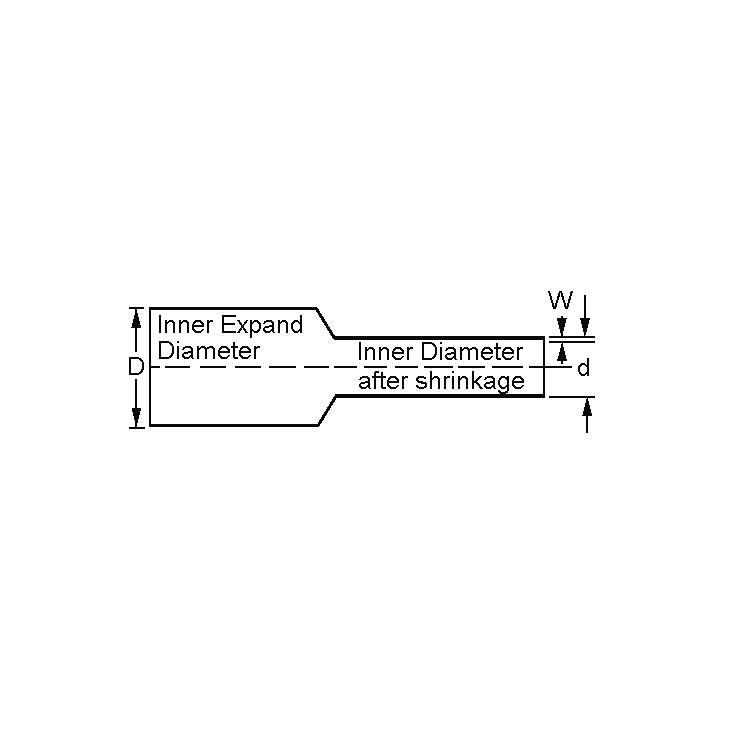

- Diameter: before shrinkage
- 12.7 mm
- Diameter: after shrinkage
- 6.4 mm
- Shrinkage rate
- 2:1
- Minimum shrinkage temperature
- 70 °C
- Adhesive layer
- false
- Flammability
- flameproof
- RoHS-Conform
Specifications
Open all
Dimensions and Weights
- Length of Shrink Tubing
- 50 m
- Diameter: before shrinkage
- 12.7 mm
- Diameter: after shrinkage
- 6.4 mm
- Wall Strength
- 0.28 mm
Operating conditions
- Operating Temperature Min.
- -55 °C
- Operating Temperature Max.
- 125 °C
Technical features
- Shrinkage rate
- 2:1
- Minimum shrinkage temperature
- 70 °C
Safety/Certifications
- Approvals
- UL 224 VW-1
- Flammability
- flameproof
