WSHF-W 762
WSHF-W Heat shrink tube Polyolefin 2:1 76mm roll 15m black
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Planned delivery time
Ø 3 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 10 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Series
- WSHF-W
- Type
- Heat shrink tube
- Colour
- black
- Length of Shrink Tubing
- 15 m

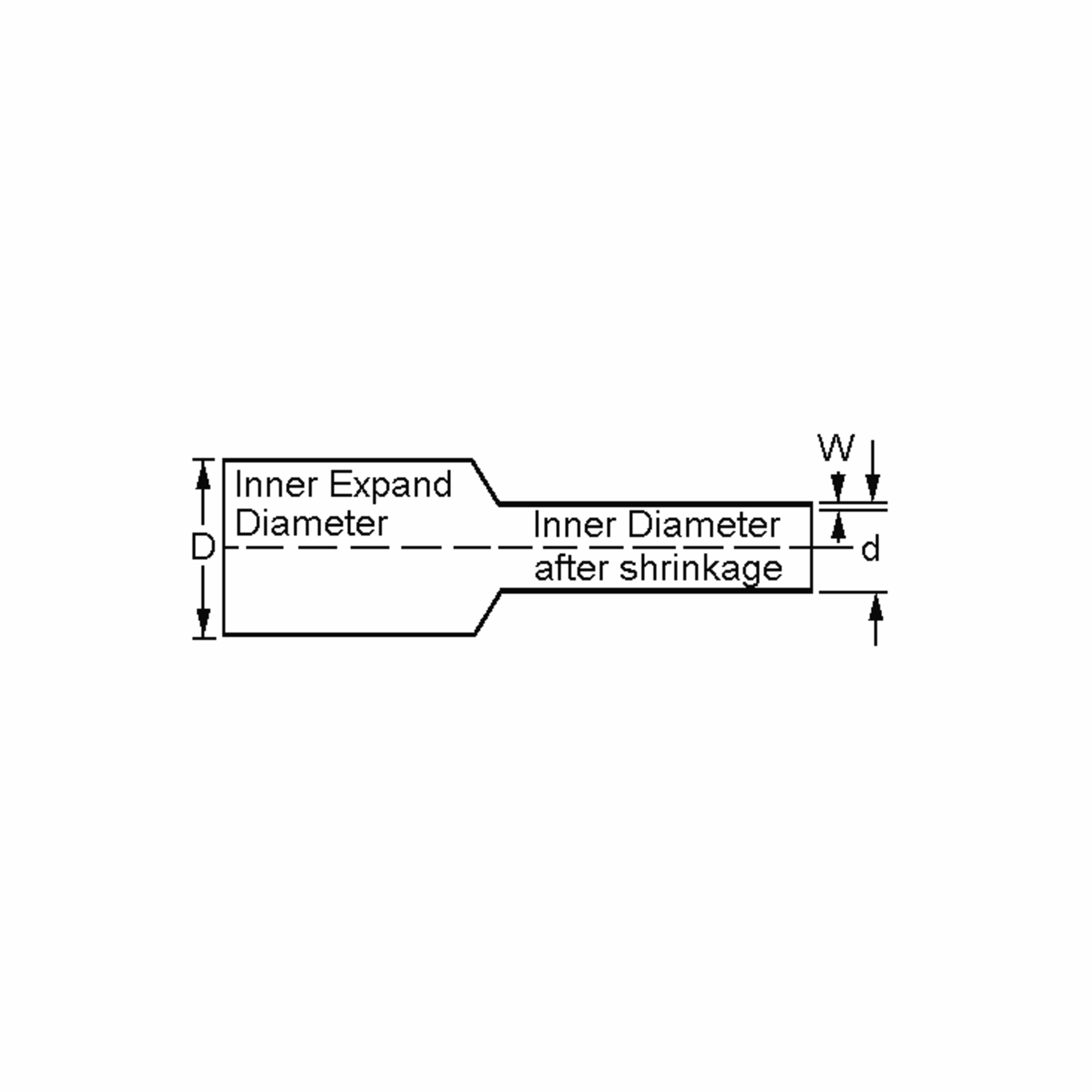

- Diameter: before shrinkage
- 76 mm
- Diameter: after shrinkage
- 38 mm
- Shrinkage rate
- 2:1
- Minimum shrinkage temperature
- 120 °C
- Flammability
- flame retardant IEC332.1
- RoHS-Conform
Specifications
Open all
Dimensions and Weights
- Length of Shrink Tubing
- 15 m
- Diameter: before shrinkage
- 76 mm
- Diameter: after shrinkage
- 38 mm
- Wall Strength
- 1.46 mm
Operating conditions
- Operating Temperature Min.
- -55 °C
- Operating Temperature Max.
- 125 °C
Technical features
- Shrinkage rate
- 2:1
- Minimum shrinkage temperature
- 120 °C
- Dielectric strength, min.
- 20 kV/mm
Safety/Certifications
- Approvals
- UL 224
- cCSA
- Flammability
- flame retardant IEC332.1
