PI50BE3R

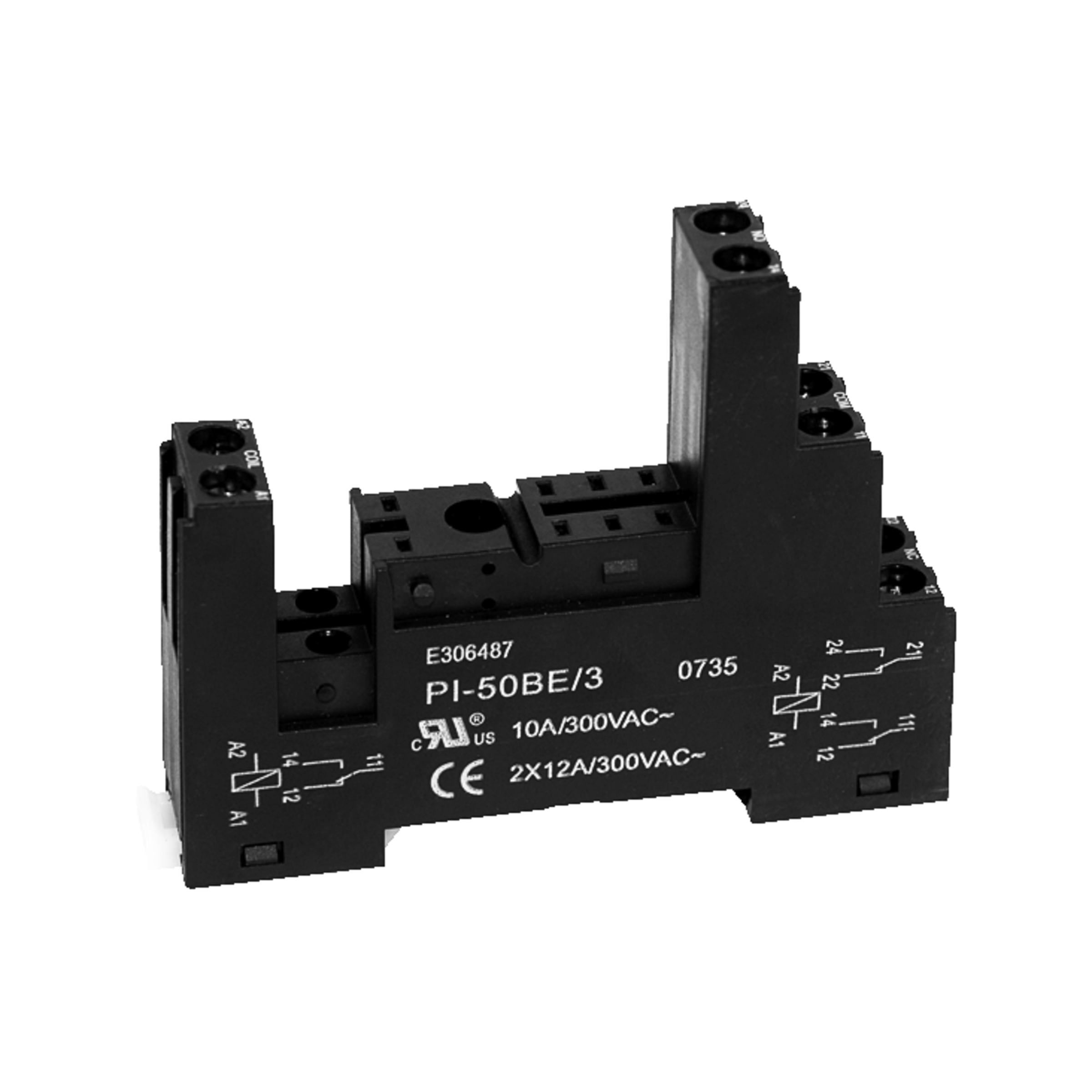

Frei DIN rail socket PI-50BE/3R 300VAC IP20
TOP
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
1.530 Pcs. in stock
Next Stock Receipt
Week 23/2026
300 Pcs.
300 Pcs.
Planned delivery time
Ø 29 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 20 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Notice
- Cross-references:
• Here you will find suitable PCB relays. - Type
- DIN rail socket
- Series
- PI-50BE/3R
- Termination Style
- Screw clamps
- Cell size
- Relay 41.61
Relay EZ-SS (EZ: EZ-SS-1P)
Relay G2RL
Relay RT314 (RT1)
Relay RT334 (RT1)
Relay RT424 (RT1, Bistable)
Retaining clip BS-16P - Coil: Nominal Voltage AC
- 300 V AC
- Contact: Voltage Resistance
- 2.5 kV

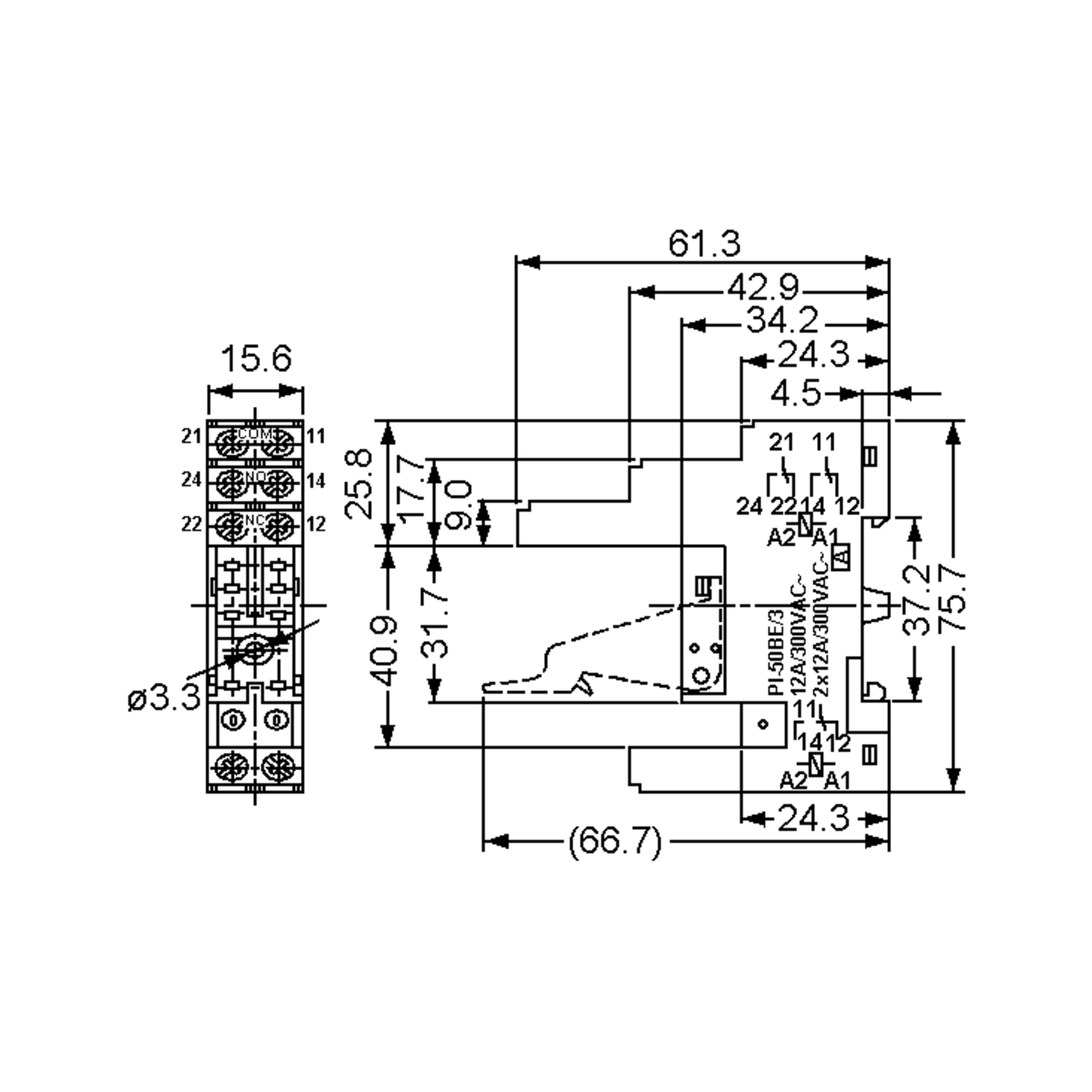

- Dimension: Length
- 75.7 mm
- Dimension: Width
- 15.6 mm
- Dimension: Height
- 61.3 mm
- Protection Class
- IP20
- RoHS-Conform
Specifications
Open all
Dimensions and Weights
- Dimension: Length
- 75.7 mm
- Dimension: Width
- 15.6 mm
- Dimension: Height
- 61.3 mm
Operating conditions
- Operating Temperature Min.
- -25 °C
- Operating Temperature Max.
- 70 °C
Technical Features
- Contact: Voltage Resistance
- 2.5 kV
- Coil: Nominal Voltage AC
- 300 V AC
Safety/Certifications
- Approvals
- cULus
- Standards
- VDE 0160
- Protection Class
- IP20
