FRS1B-S-DC24V

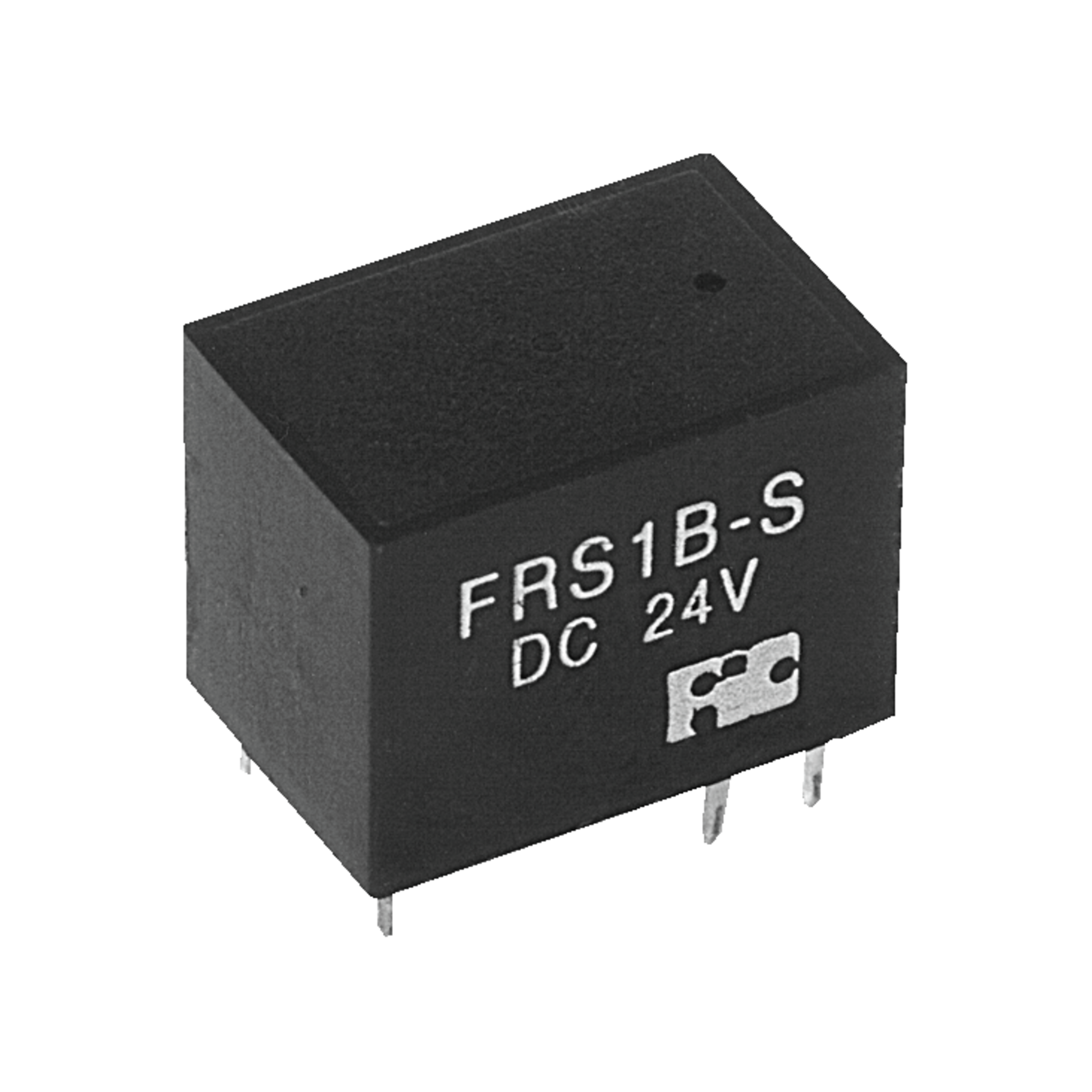

Forward Industrial Co. Signal relay DIP DIL FRS1 THT SPDT 1A 24VDC 1.280Ohm 15,7mmx11mmx12mm

Manufacturer Part No.
FRS1B-S-DC24V
Schukat Part No.
FRS1B24
Manufacturer
Forward Industrial Co.
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

2.795 Pcs. in stock

Next Stock Receipt
Week 22/2025
1.000 Pcs.
Planned delivery time
Ø 24 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 25 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 25 or multiple of 25)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Series
FRS1
Type
Signal relay DIP DIL

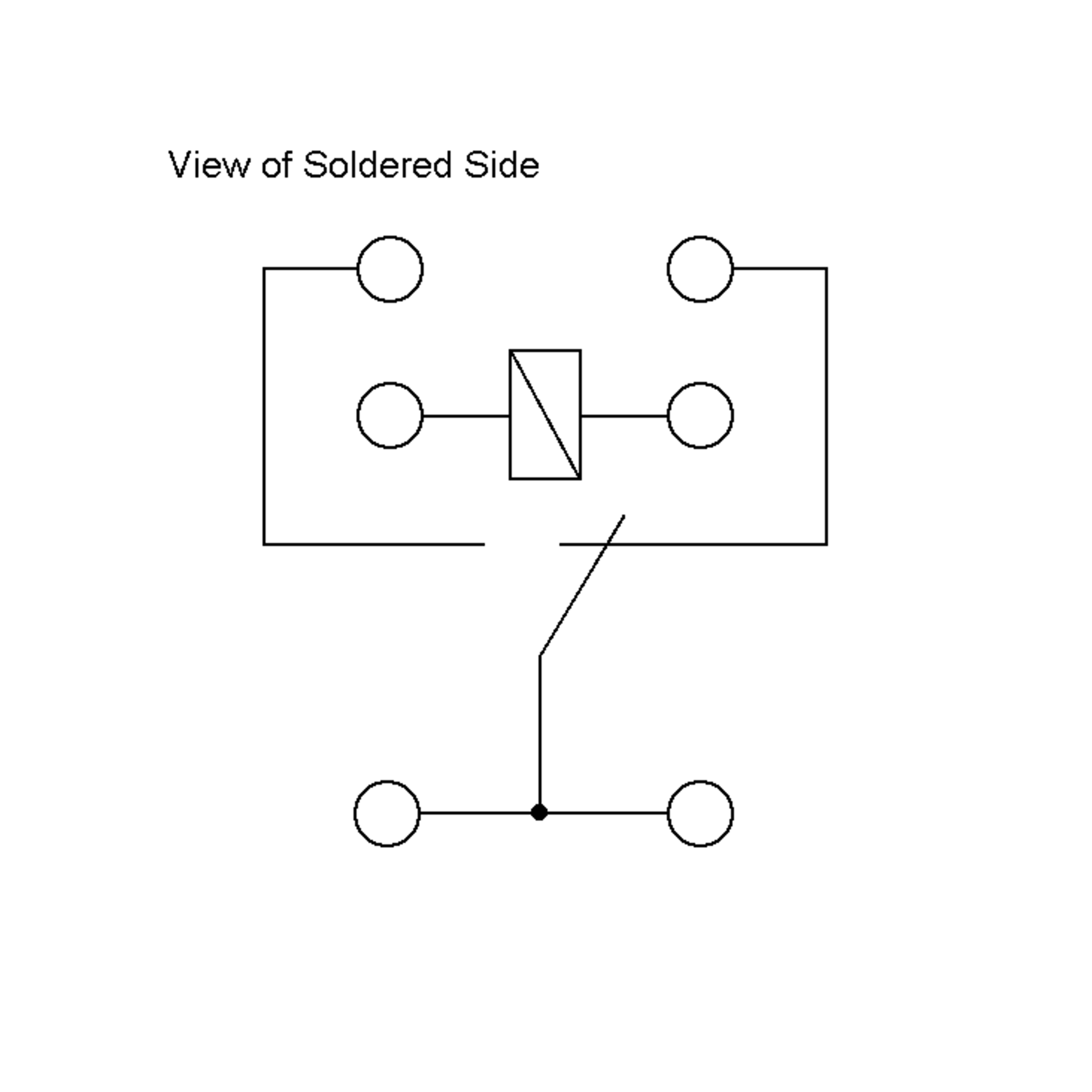

contacts
SPDT
Switching current
1 A
Rated current
18,8 mA
Rated voltage DC
24 V DC
Coil resistance
1,280 Ohm
Protection Class
IP67

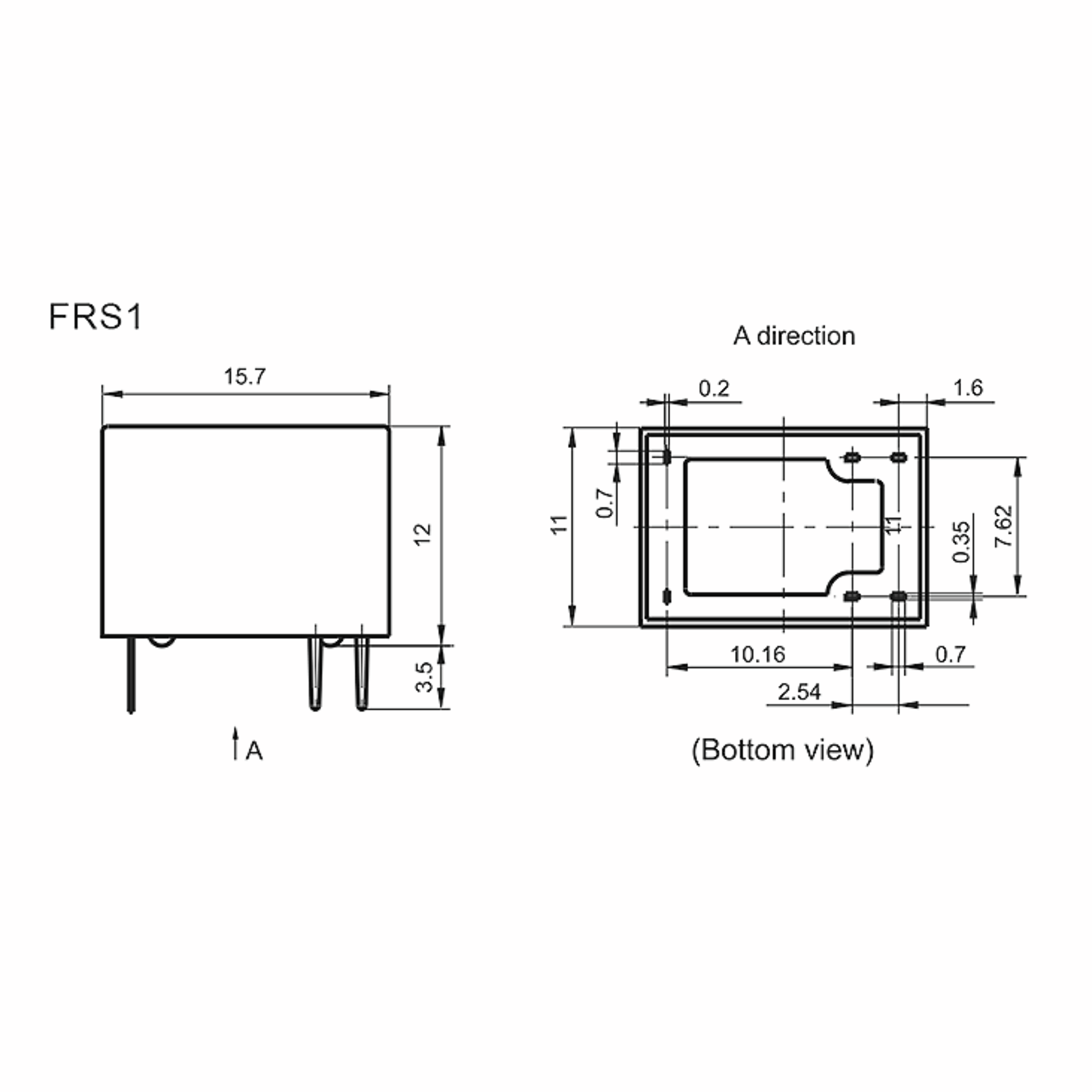

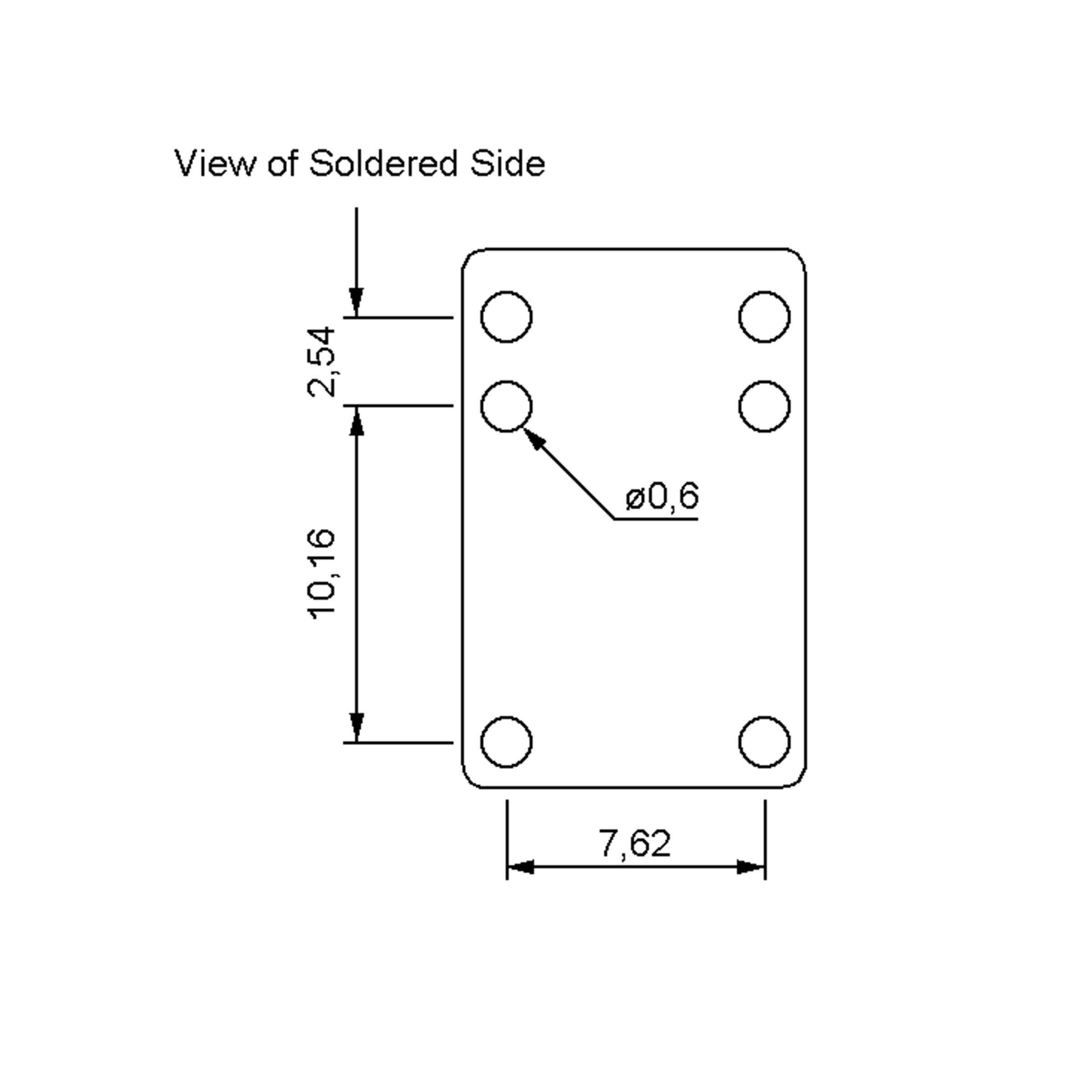

Dimension: Length
15.7 mm
Dimension: Width
11 mm
Dimension: Height
12 mm
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Forward Industrial Co.
Type
  • Signal relay DIP DIL
Series
  • FRS1
Product group
  • E6217
contacts
  • SPDT
Contact material
  • Ag alloy/Au
Assembly Type
  • THT
Application

  • General control, regulation and consumer goods technology as well as fault and burglar alarm systems.

Features

  • • lLw power consumption of the coil
    • Washable design (IP67)
    • Can be soldered directly into the circuit board
    • Can be plugged into 12-pin DIP/DIL sockets

    • When used to switch mains voltage, the applicable VDE regulations (VDE0110) must be observed. To exclude a safety risk, the test voltage between the coil and the contact should be at least 4000V AC.

Dimensions and Weights

Dimension: Length
  • 15.7 mm
Dimension: Width
  • 11 mm
Dimension: Height
  • 12 mm
Weight
  • 4 g

Operating conditions

Operating Temperature Min.
  • -25 °C
Operating Temperature Max.
  • 75 °C

Technical Features

Rated voltage DC
  • 24 V DC
Coil design
Switching voltage, max. AC
  • 125 V AC
Switching voltage, max. DC
  • 30 V DC
Response voltage
  • 18 V
Drop-out voltage
  • 2.4 V
Test voltage open contacts
  • 500 V AC
Test voltage coil/contact
  • 500 V AC
Rated current
  • 18,8 mA
Switching current
  • 1 A
Rated power
  • 450 mW
Switching capacity (VA)
  • 625 VA
Switching capacity (W)
  • 150 W
Coil resistance
  • 1,280 Ohm
Contact resistance
  • 50 mOhm
Insulation resistance
  • 100 MOhm
Response time
  • 5 ms
Drop-out time
  • 5 ms
Vibration resistance
  • 1,5 mm DA
Impact resistance, functional
  • 10 G

Safety/Certifications

Approvals
  • cULus
Protection Class
  • IP67
