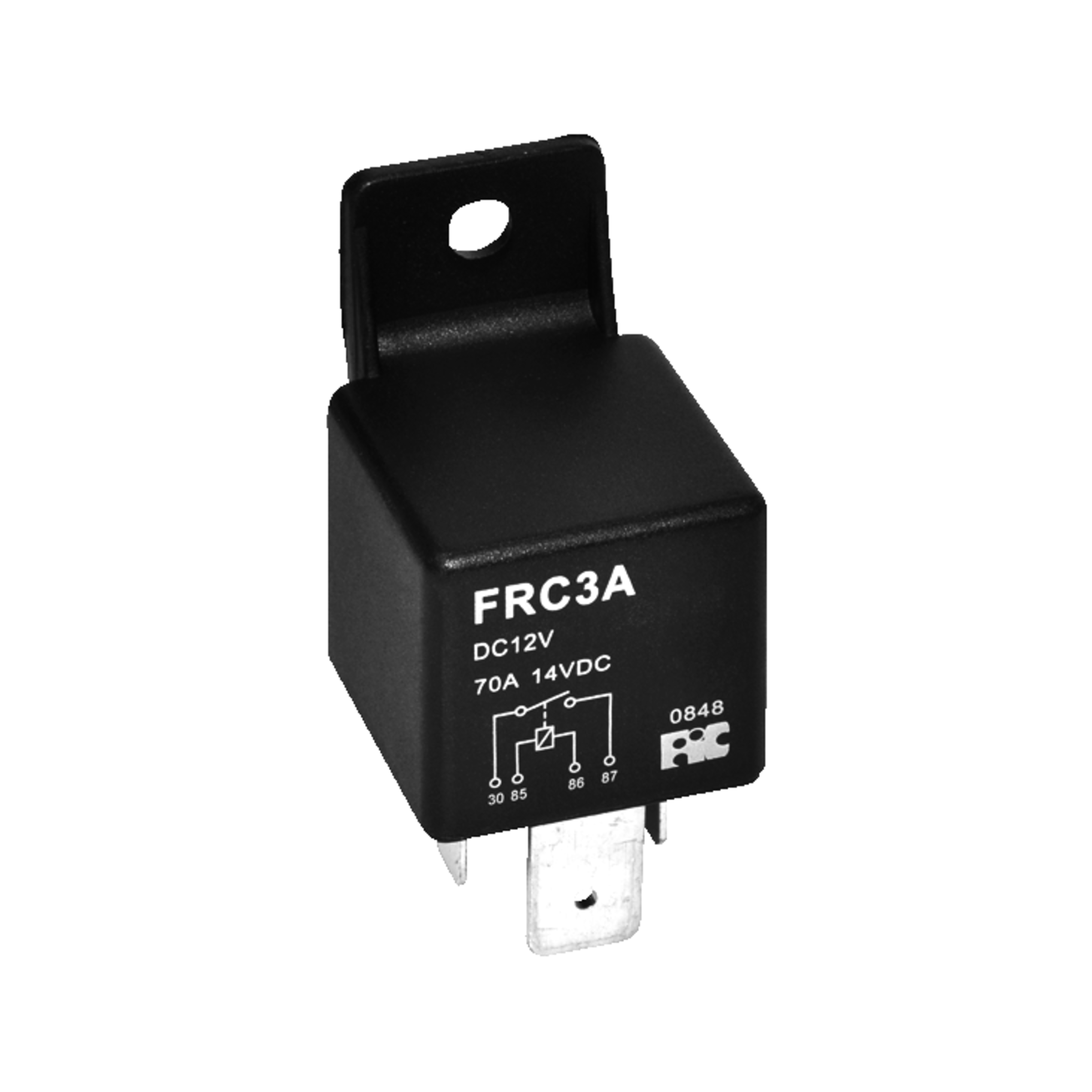

FRC3-A-DC12V
Forward Industrial Co. Automotive relay FRC3 SPST-NO 70A 12VDC 80Ohm 29mmx29mmx26,6mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
675 Pcs. in stock
Planned delivery time
Ø 30 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Notice
- Cross-references:
• Here you will find suitable relay sockets and accessories. - Series
- FRC3
- contacts
- SPST-NO
- Contact: Switching Current (min/typ/max)
- 70 A
- Coil: Nominal Voltage DC
- 12 V DC
- Coil resistance
- 80 Ohm
- RoHS-Conform
Specifications
Open all
Dimensions and Weights
- Dimension: Length
- 29 mm
- Dimension: Width
- 29 mm
- Dimension: Height
- 26.6 mm
- Weight
- 47 g
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
Technical Features
- Contact: Switching Current (min/typ/max)
- 70 A
- Contact: Switching Voltage, max. DC
- 75 V DC
- Contact: Switching Load (W)
- 980 W
- Contact resistance
- 30 mOhm
- Creepage distance
- 10 mm
- Coil design
- monostable
- Coil resistance
- 80 Ohm
- Inductor power
- 1,800 mW
- Coil: Rated Current [mA]
- 150 mA
- Coil: Nominal Voltage DC
- 12 V DC
- Coil: Operating Voltage, max.
- 18 V
- Coil: Pick-up voltage
- 7.8 V
- Coil: Drop-out Voltage
- 1.2 V
- Test voltage coil/contact
- 500 V AC
- Response time
- 10 ms
- Drop-out time
- 10 ms
- Insulation resistance
- 100 MOhm
- Vibration resistance
- 1,5 mm DA
- Impact resistance, functional
- 20 g
